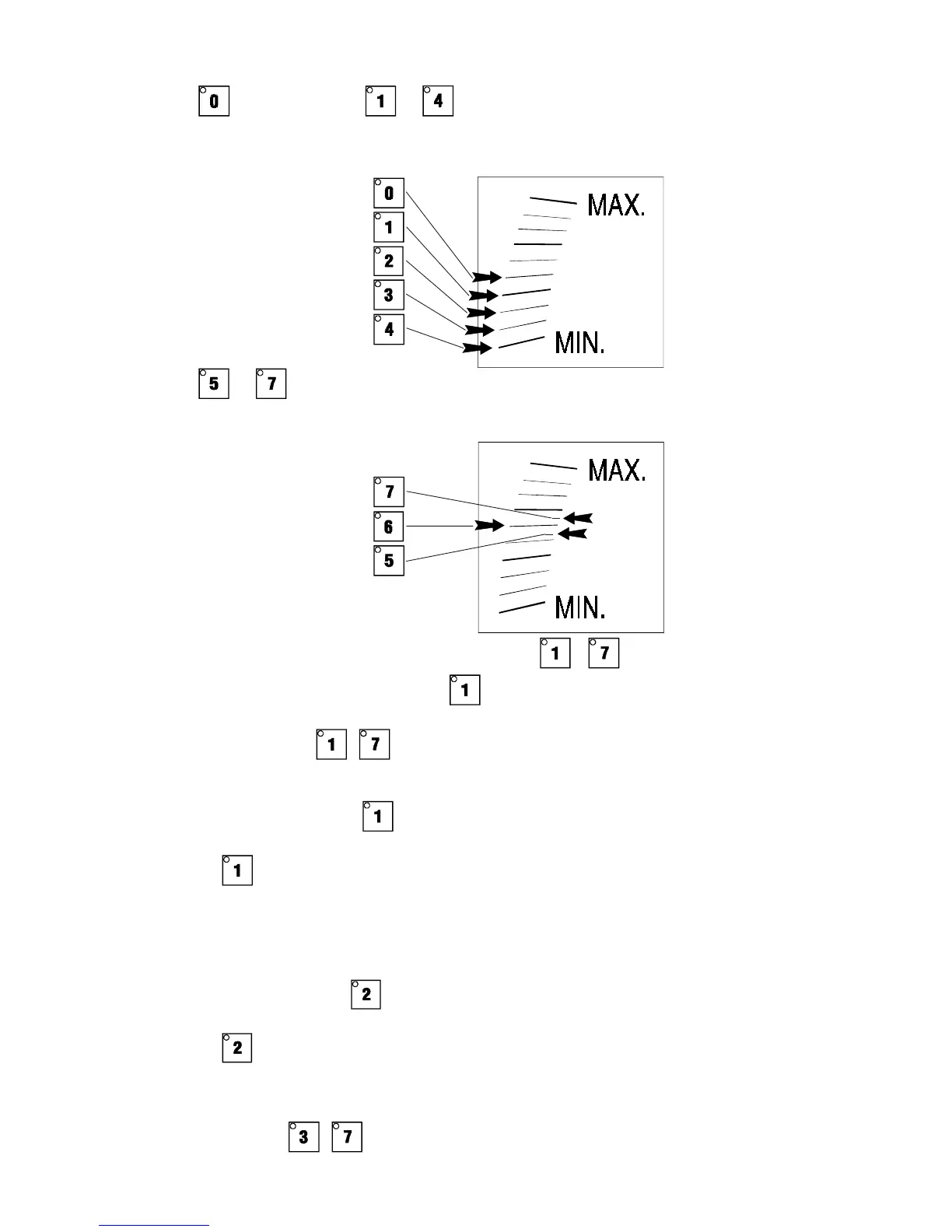

53.2 Key arrangement to set pointer 1 (fig. 6)
53.2.1 Keys (no fullness) and to more fullness in the lower ply)
53.2.2. Keys
to (fullness in the upper ply)
53.3 Basic setting of the fullness quantities of keys -
Each key is allocated to a potentiometer (key /pot “1” etc.)
The basic setting of keys - can be changed by turning the pot concerned.
53.3.1 Adjustment of fullness key
Press key
Keep turning pot “1” until pointer 1 (fig. 6) moves to the 4th scale graduation mark from the
bottom (see section 53.2.1)
53.3.2 Adjustment of fullness key
Press key
Keep turning pot “2” until point 1 (fig. 6) moves to the 3rd graduation mark (see section 53.2.1)
The fullness of keys - are adjusted in the same way.
