Setting up
Switch off the machine!
Danger of injury due to uninten-
tional starting of the machine!
● Set take-up lever at its top position.
● Open bed slide, lift latch 1 and take out
the bobbin. Place the fi lled bobbin into
the hook so that the bobbin turns as
shown by the arrow when the thread is
pulled.
● Close latch 1 again.
● Pull the thread through slot 2, around
stop 3 and into hole 4. Close the bed
slide again.
● Regulate the bobbin-thread tension by
turning screw 5.
Do not run the machine with the bed slide open.
Danger of injury by moving parts.
8.03 Bobbin-changing/threading, and regulating the bobbin thread tension
8.04 Setting the bobbin thread control function by reverse stitch counting
8
.04 .01 Machines with P45 PD2-L and P74 ED-L
● Switch on the machine.
● Call up the parameter input function by pressing the Scroll key.
● Press the TE key to switch the function keys to the input function (LED in the
TE key is on).
● Select parameter "660" by pressing the appropriate +/- keys, and set the value at 2.
● Press the scroll key to select the "TM" function.
● Set the number of stitches, which can sewn with a fi lled bobbin, by pressing the
appropriate +/- key.
● Change to the "RM" function by pressing the "TE" key (diode is off).
● Take over the set value by pressing the "F1" key.
8.04 .02 Machines with PF 321
● The description can be found in the separate instruction manual for the drive.

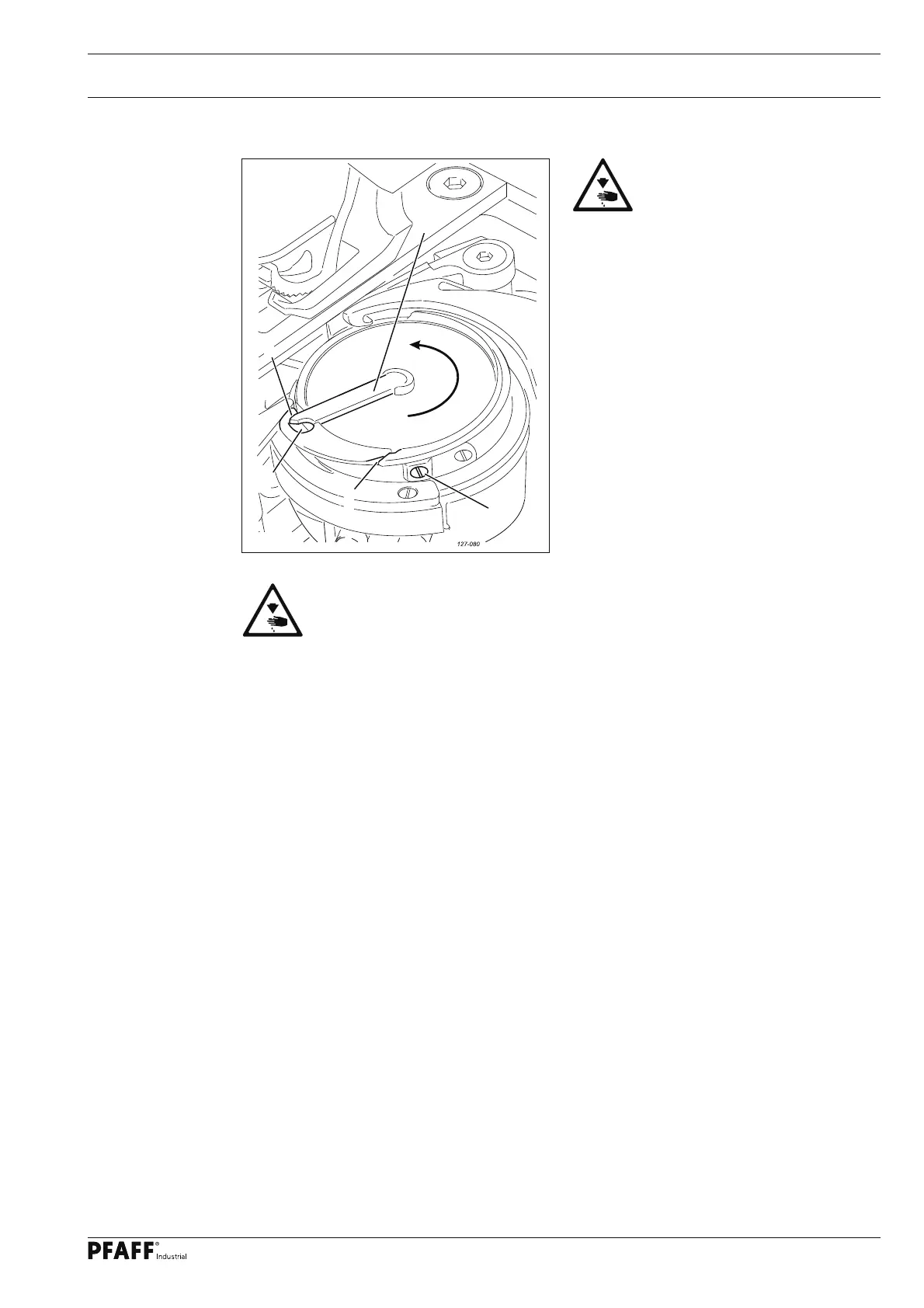

Fig. 8 -03
2
3
4
6
1
