Operating Manual | Roof-mounted Cooling Unit | Multi Controller (MC) – 230 V | 086100023d 34/80
Dimensions of "Performance-Cut” unit cut-out
View of switch cabinet from above

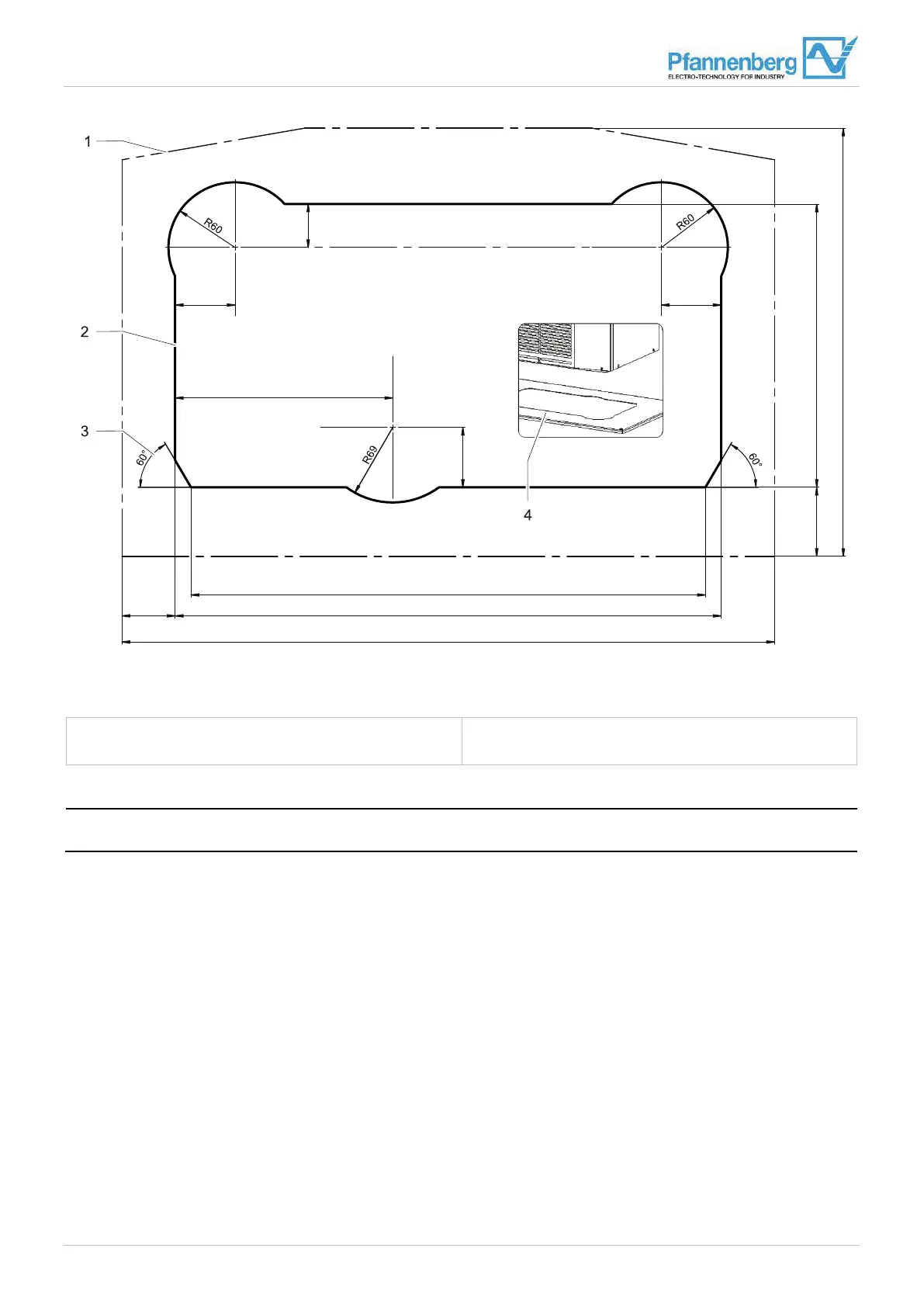

Fig. 15: Switch cabinet cut-out “Performance-Cut”
1 Device contour
2 Switch cabinet cut-out
3 Cut-out angle 60°
4 Total cut-out: DTT-cooling unit and cut-out
NOTE
The “Performance-Cut” switch cabinet cut-out ensures full colling unit performance at minimum current consumption. It is also
very suitable for cooling units with a flat duct system, see chapter "Flat duct system (option)", Page 15.
G00035
54 54
40
196
55
464
492
260
63,4
393
588
48
