4.5.4 Mounting the cooling unit on the switch cabinet
Mounting the cooling unit
Locking the cooling unit with locking levers

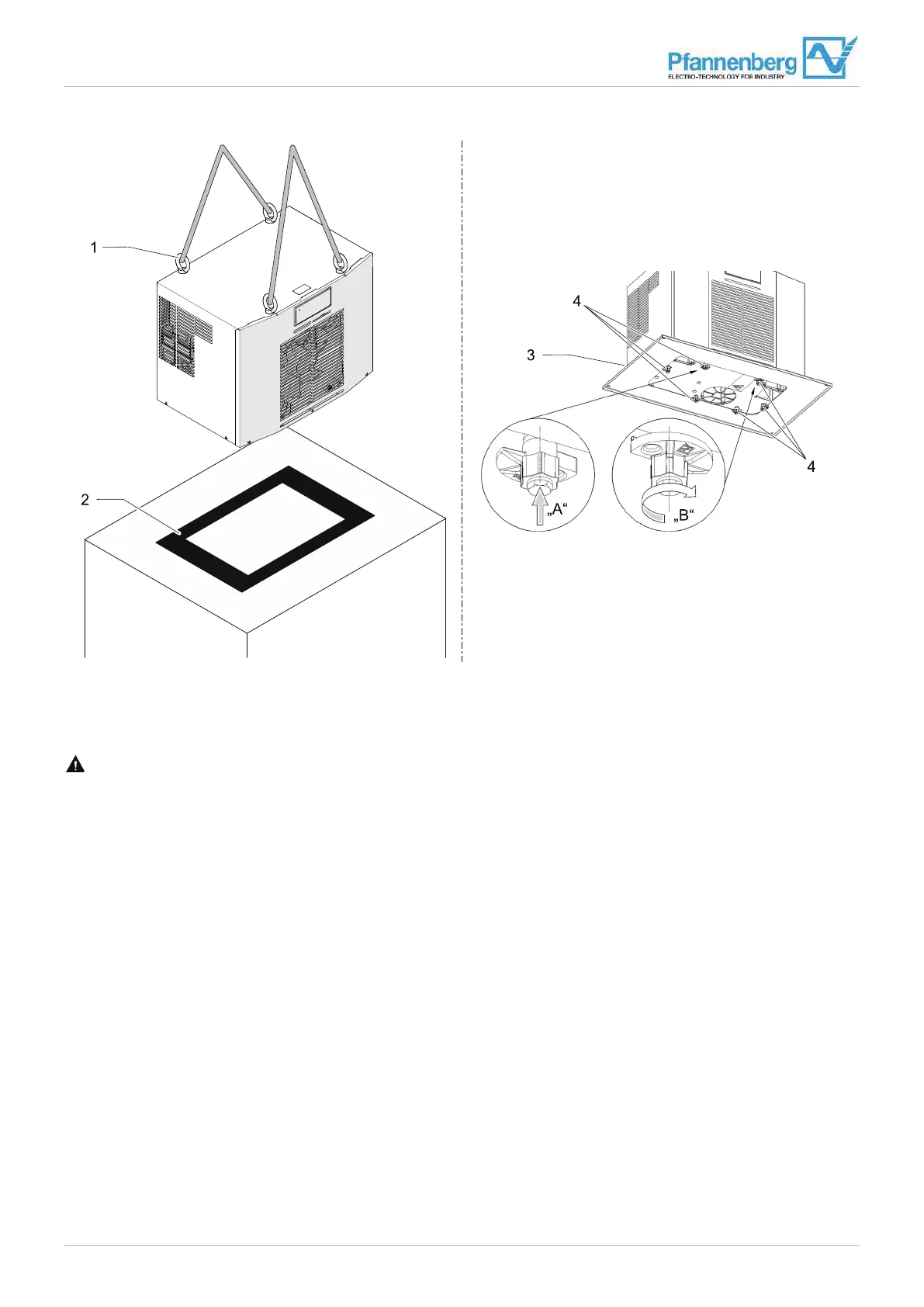

Fig. 17: Assembly of the cooling unit with locking levers
Prerequisites
DANGER – Danger to life due to electric shock. Make sure that the unit is voltage-free.
• All general requirements are fulfilled, see chapter "General", Page 33.
• The M8 jack rings (1) are screwed into the cooling unit, see chapter "Crane transport", Page 31.
• The cooling unit is properly secured with lashing straps.
• The switch cabinet is aligned exactly horizontally.
Required tools and materials
• Lashing straps, loading crane if necessary
