Pfannenberg DTX 8161 - Installation Cut-out

685408006D 36

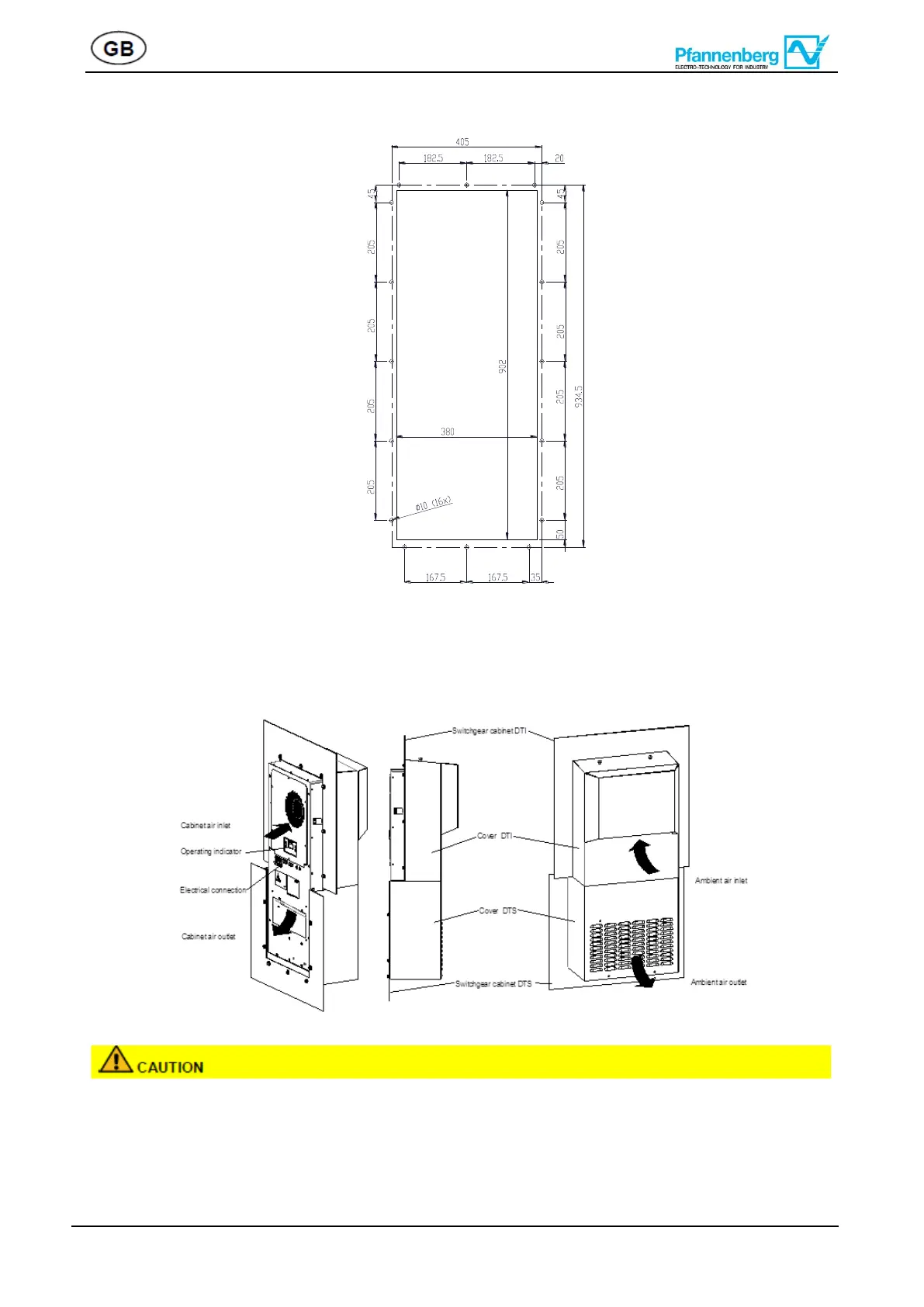

Drilling template
8.4 Airflow principle
Read this manual completely and carefully before installing the unit. This manual is an integral part of the
scope of delivery and must be kept until the unit is disposed of.Prior to mounting, ensure that the clearance
of the units to each other and the wall is at least 200mm; air inlet/outlet are not obstructed on the inside of
the enclosure.
