Pfannenberg PA 5 - Anhang Tonartentabelle und Ansteuerung der Töne

Anhang/ Appendix/ Annexe/ Appendice/ Приложение
06/2023 086200006e

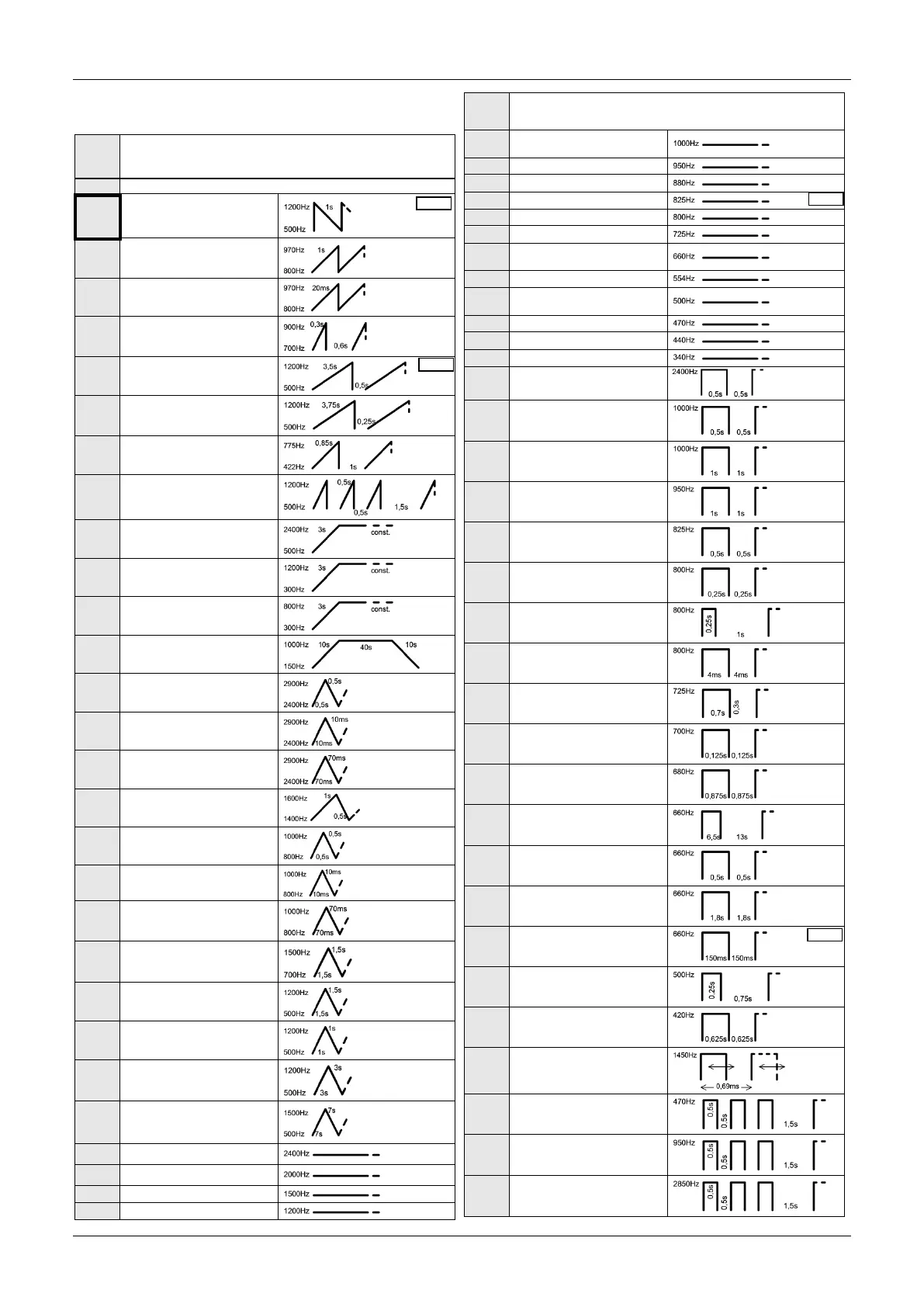

Tonartentabelle/ Tone table/ Tableau de sons/
Tabella suoni/ „Таблица звуковых тонов“
Grund-
Ton-Nr.
(♪)
Beschreibung/ Description/
Descrizione/ Описание
1
Kein Ton/ Silence/ Pas de son/ Nessun suono
2*
Saw tooth, Germany DIN
33404-3 (emergency signal),
PFEER PTAP
9
Slow whoop, fire alarm, UK
BS5839-1
11
Whoop (fast)
13
Whoop
15
Slow whoop, evacuation,
Netherlands NEN 2575
16
Slow whoop, evacuation
Australia AS2220
18
Slow whoop, NFPA
22
Whoop, Australia AS1670,
ISO8201
23
Siren
24
Siren
25
Siren
26
Industrial alarm (Germany)
27
Sweeping
29
Sweeping (fast)
30
Sweeping
31
Sweeping,
France NF C 48-265
33
Sweeping, UK BS5839-1
(medium sweep)
34
Sweeping (fast)
35
Sweeping,
UK BS5839-1 (fast sweep)
36
Sweeping
43
Sweeping
44
Sweeping, IMO 3d, Germany
KTA3901 evacuation
45
Sweeping
46
Sweeping,
Finland General Alarm
52
Continuous
53
Continuous
54
Continuous, Finland All Clear
55
Continuous
(♪)
Beschreibung/ Description/
Descrizione/ Описание
56
Continuous, PFEER
(Gasalarm)
57
Continuous, UK BS5839-1
59
Continuous
60
Continuous
61
Continuous
63
Continuous
65
Continuous, Sweden
SS031711 (All Clear)
66
Continuous
67
Continuous, Germany
KTA3901 (All Clear)
68
Continuous
69
Continuous
71
Continuous
77
Intermittent
82
Intermittent, PFEER (General
Alarm), UK BS5839-1 (Back-
up Alarm)
83
Intermittent, PFEER
(General Alarm)
88
Intermittent
90
Intermittent
91
Intermittent
92
Intermittent
93
Intermittent (fast),
electromechanical horn
97
Intermittent
98
Intermittent, Sweden SS
031711 (Imminent Danger)
100
Intermittent, Industrial Alarm
(Germany)
101
Intermittent, Sweden
SS031711 (Important
Message (Pre Mess))
102
Intermittent, Sweden
SS031711 (Local Warning)
103
Intermittent, Sweden
SS031711 (Air Raid)
104
Intermittent, Sweden
SS031711 (Imminent
Danger)
107
Intermittent, Germany
KTA3901 (evacuation)
109
Intermittent, Australia
AS2220,AS1610, AS1670
110
Intermittent (fast variable),
Bell
111
Intermittent, ISO8201
(emergency evacuation
signal), USA (evacuation)
112
Intermittent, ISO8201
(emergency evacuation
signal)
113
Intermittent, ISO8201
(emergency evacuation
signal) treble tone
EN54-3
EN54-3
EN54-3
EN54-3
