EN – 12

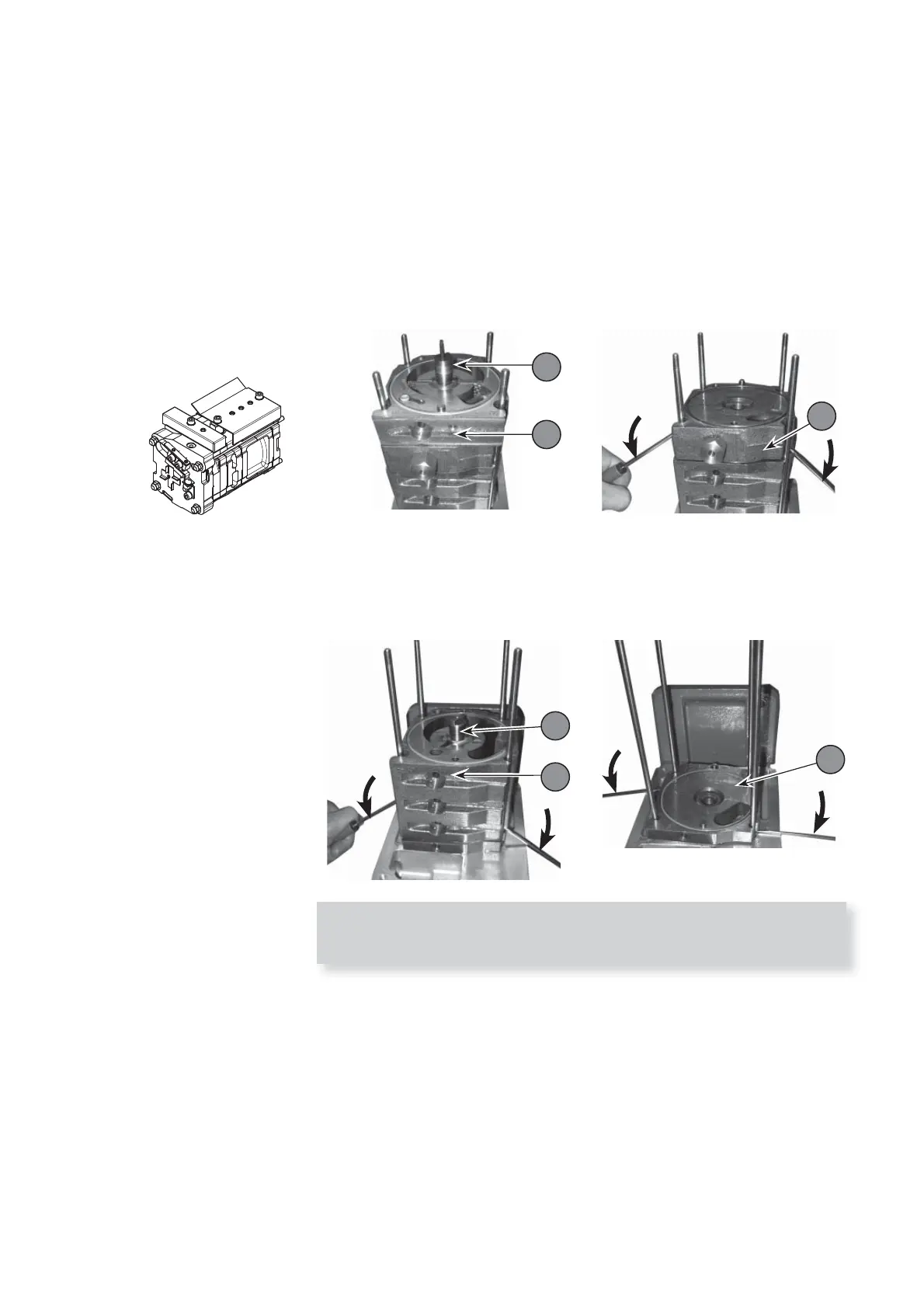

Disassembling the
pumping module
with
no flanged stator
(see N – 6)
1 Remove the HP stator (34) by sliding it
along the HP rotor (31).
Remove the HP rotor and the vanes.
2 Insert two screwdrivers in the notches
and release the central plate (29) in the
axis.
3 Insert two screwdrivers in the notches
and release the BP stator (26) by sliding
it along the BP rotor (23).
Remove the BP rotor and the vanes.
4 Release the front plate (19).
31
34
23
26
29
19
Note : If one of the pumping module part with no flanged stator is damaged and
must be replaced, it is necessary to replace it by new parts from a flanged stator
configuration (refer to N - 21, N - 23 for spare part list).
Disassembling the pump (cont’d)
