EN – 5
ENMaintenance
Vane kits for 2-stage pumps This kit contains only vanes and springs in order to maintain several pumps of the same
model (see table here after).
Pumps 2005 2010 2015 2021
LP stage vane kit 108417 108396 108397 108398
Vane / Spring (quantity) 20 / 22 20 / 42 20 / 62 20 / 62
HP stage vane kit* 108417 108399 108399 108399
Vane / Spring (quantity) 20 / 22 20 / 22 20 / 22 20 / 22
* except models C1 and C2.
Pumps 2005 2010 2015 2021
Oil vane pump kit** 108407 (10 vanes)
** except models SD and C2.
External shaft seal replacement
kit (parts for shaft passage
tightness on motor side)
This kit contains all the parts which
must be replaced in the event of a leak
on the shaft on the motor side.
Screw kit
This kit contains all screws and
washers for the range of Pascal’s
pump.
Pump models P/N
All pumps 104919
Pump models P/N
All pumps 065612
Spare parts (cont’d)
For safety reasons, the manufacturer recommends that single-phase motors be properly
maintained. Although there is only an extremely small risk of flammability, you are
advised to replace the capacitors and/or the motor in the following cases:
Single-phase motor with ID number < 110000 :
• replace the motor immediately by ordering a new motor.
• then, every 5 years, replace the capacitors and the relays by ordering a kit.
Single-phase motor with ID number > 110000 :
• every 5 years, replace the capacitors and the relays by ordering a capacitor kit.
• after 15 years, replace the motor by ordering a new motor.

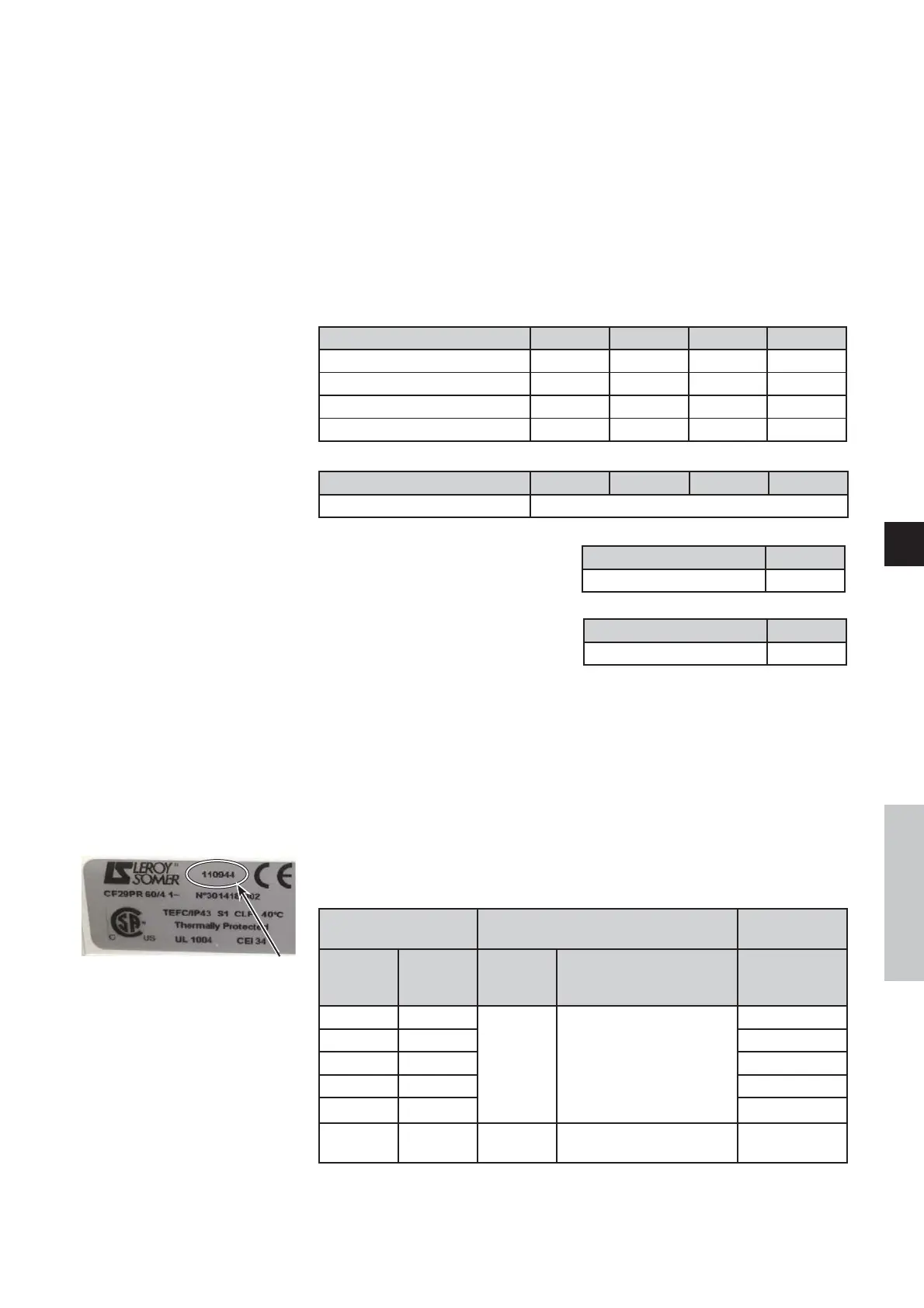

Single-phase motor
to maintain
Capacitor/relay kit
New equipped
motor
ID
number
< 110000
ID
number
> 110000
P/N Description Ordering P/N
103749 110944
111695
Capacitors (300μF, 2 0μF) +
relay
108694
103750 110913 108696
104734 110600 108697
105132 110946 108698
106442 110947 108699S
107876 110948 111701
Capacitors (300μF, 2 5μF) +
relay
108802S
The procedure for replacing capacitors and relays is provided with the capacitor kit.
Capacitor kit for single-
phase motors
