Phanteks eclipse p400 User Manual

9

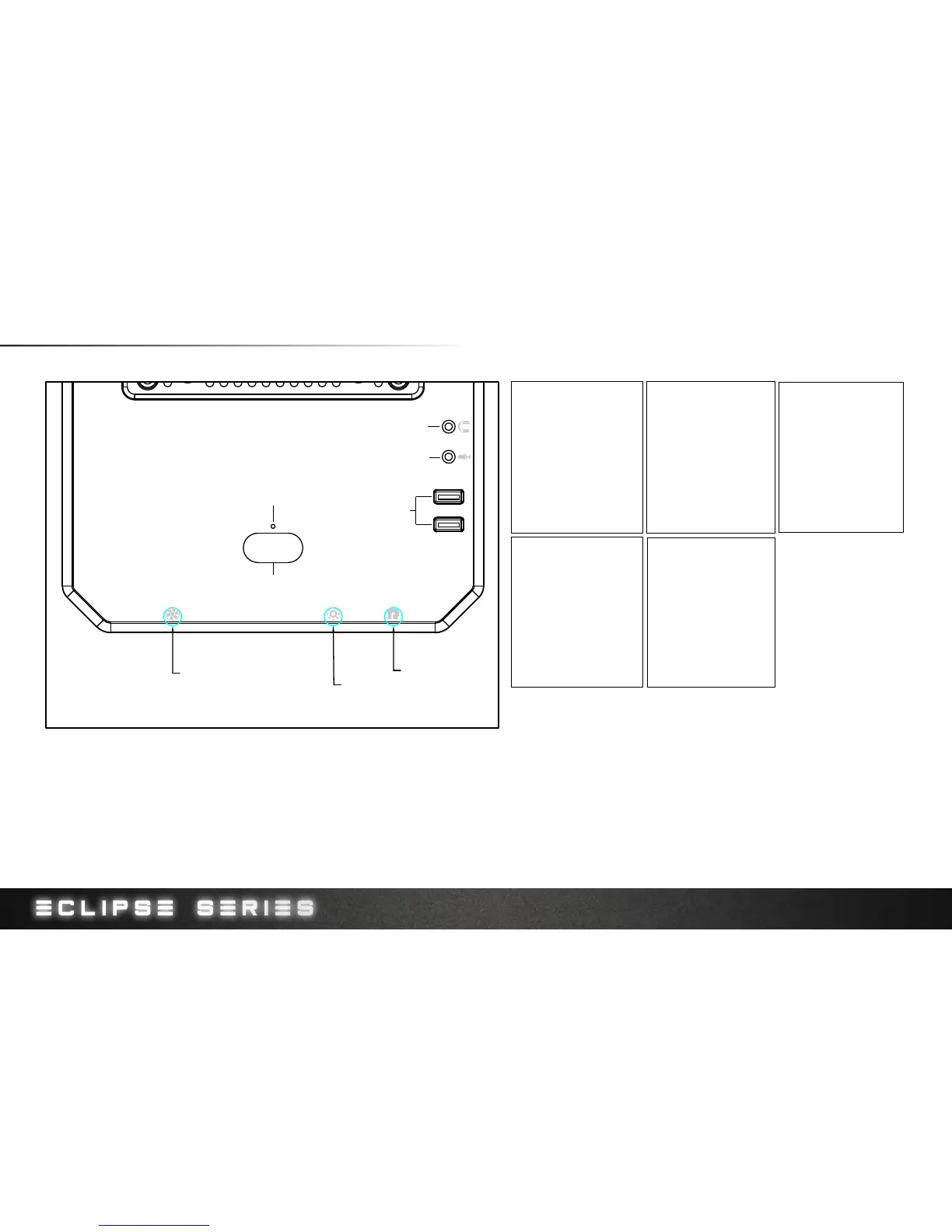

4. I/O PORTS
1. USB 3.0
2. 마이크
3. 헤드폰
4. 전원 리셋
5. 전원 버튼
6. LED
7. FAN (P400S only)
8. HDD LED
1. USB 3.0
2.麦克风
3.耳机
4.重启
5.电源按钮
6. LED
7. FAN (P400S only)
8. HDD LED
1. USB 3.0
2. Микрофон
3. Наушники
4. Сброс питания
5. Кнопка питания
6. LED
7. FAN (P400S only)
8. HDD LED
1. USB 3.0
2.マイクロホン
3.ヘッドホン
4.電源リセット
5.電源ボタン
6. LED
7. FAN (P400S only)
8. HDD LED
1. USB 3.0
2. Microphone
3. Headphone
4. Reset
5. Power Button
6. LED
7. FAN (P400S only)
8. HDD LED
ECLIPSE SERIES
QUICK INSTALLATION GUIDE
1.
I/O PANEL
2.
PANEL REMOVAL
1. USB 3.0
2. Microfone
3. Fone de ouvido
4. Redenição de Energia
5. Botão de Alimentação
6. LED
7. FAN (P400S only)
8. HDD LED
1. USB 3.0
2. Microphone
3. Casque
4. Réinitialisation de
l’alimentation
5. Bouton d’alimentation
6. LED
7. FAN (P400S only)
8. HDD LED
1. USB 3.0
2. Microfono
3. Cue
4. Ripristino alimentazione
5. Tasto d’alimentazione
6. LED
7. FAN (P400S only)
8. HDD LED
1. USB 3.0
2. Micrófono
3. Cascos
4. Resetear
5. Botón de alimentación
6. LED
7. FAN (P400S only)
8. HDD LED
1. USB 3.0
2. Microphone
3. Headphone
4. Reset
5. Power Button
6. LED
7. FAN (P400S only)
8. HDD LED
Unscrew the 4 thumb screws (A.) to remove the side panels (B)
Dévissez les vis à main pour enlever les panneaux latéraux.
Lösen Sie die 4 Rändelschrauben zum Entfernen der seitlichen Blenden.
Svitare le 4 viti per rimuovere i pannelli laterali.
Desaperte os 4 parafusos para remover os painéis laterais.
Desatornille los 4 tornillos de pulgar para retirar los paneles laterales.
Schroef 4 duimschroeven los om de zijpanelen te verwijderen.
For the front panel, place your hands on the area shown and pull outward.
Pour le panneau avant, placez vos mains sur la zone achée, et tirez vers l’extérieur.
Positionieren Sie auch bei der Frontblende Ihre Hände an der angezeigten Stelle
und ziehen Sie sie dann nach außen.
Per il pannello anteriore, posizionare le mani sull’area mostrata e tirare verso
l’esterno.
Para o painel frontal, coloque as mãos na área ilustrada e puxe para fora.
Para sacar el panel frontal, coloque las manos en el área indicada y tire hacia afuera.
Voor het verwijderen van het voorpaneel, trek het paneel naar u toe zoals aange-
geven op de tekening.
This is a quick installation guide to help you get started with the Eclipse P400(s).
For the full (detailed) version of the manual please visit
WWW.PHANTEKS.COM.
4. Reset/sw
6. LED
7. FAN
(Only in Model: P400S)
3. Headphone
2. Microphone
1. USB 3.0
5. Power Button
8. HDD LED
Please take a moment to carefully go through the quick installation guide. Phanteks will not take
responsibility for any damages incurred due to incorrect installation and usage of this product.
SIDE PANEL REMOVAL
A. B.
FRONT PANEL REMOVAL
1
2
*
*
*
*
Located underneath top panel
1. USB 3.0
2. Mikrofon
3. Kopfhörer
4. Reset
5. Ein-/Austaste
6. LED
7. FAN (P400S only)
8. HDD LED
1. USB 3.0
2. Microfoon
3. Hoofdtelefoon
4. Power Reset
5. Power knop
7. FAN (P400S only)
8. HDD LED

Phanteks eclipse p400 Specifications

General

Type	PC
Material	Acrylonitrile butadiene styrene (ABS), Steel
Form factor	Midi Tower
Illumination	Yes
Product color	White
Illumination color	Blue
Maximum PSU length	270 mm
Number of 2.5\" bays	2
Number of 3.5\" bays	6
Illumination location	Front
Number of 5.25\" bays	0
Maximum CPU cooler height	160 mm
Number of expansion slots	7
Maximum graphics card length	395 mm
Supported motherboard form factors	ATX, EATX, Micro ATX, Mini-ITX
Supported HDD sizes	2.5, 3.5 \
Power supply included	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Front fans installed	1x 120 mm
Rear fans diameters supported	120 mm
Front fans diameters supported	120, 140 mm
Front radiator sizes supported	140, 200, 240, 280, 360 mm
Number of rear fans supported (max)	1
Number of front fans supported (max)	3
Package depth	520 mm
Package width	300 mm
Package height	555 mm
Package weight	8000 g

Weight and Dimensions

Depth	470 mm
Width	210 mm
Height	465 mm
Weight	7000 g
