Phanteks Eclipse P600s User Manual

14

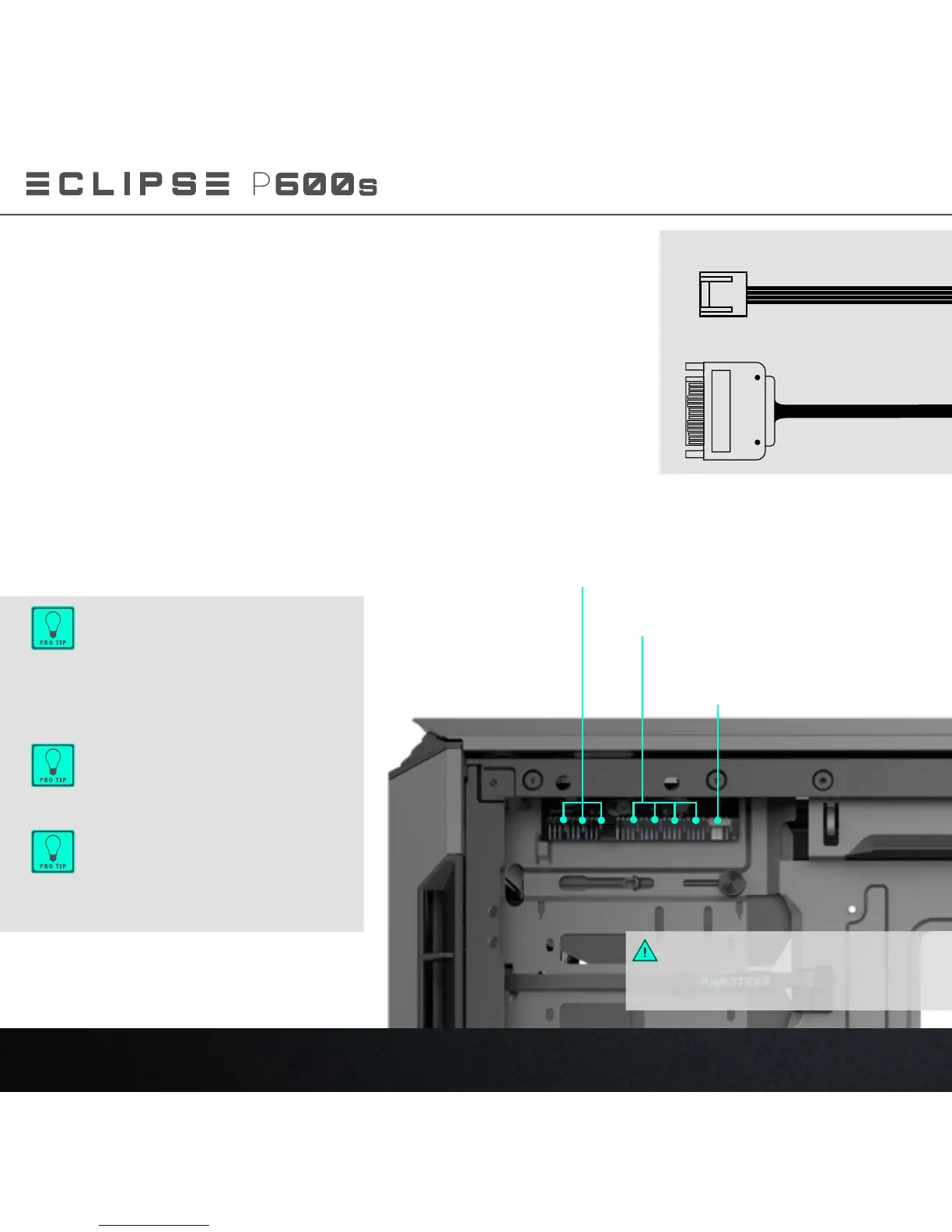

INSTALLING FANS
SATA
The White Connector will provide
the RPM signal to the
motherboard.
WHITE 3-/4-PIN
UNIVERSAL
BLACK 4-PIN PWM
BLACK 3-PIN DC
Choosing a PWM output provides the most
customization options in the motherboard
settings.
You can choose a PWM or DC output in the
motherboard settings. The Fan Hub will
automatically translate the signal to all connected
3- and 4-pin fans. Check WWW.PHANTEKS.COM/
FAQ for more technical details.
Expand the number of fans with splitter
cables up to a maximum of 4A total power.
Splitter cables are sold separately:
PH-CB-Y4P / Y3P
1.
2.
CONNECT THE FAN HUB 4PIN INPUT CABLE TO YOUR
MOTHERBOARD FAN HEADER
CONNECT EXTRA FANS TO THE CORRESPONDING CONNECTOR
ON THE UNIVERSAL FAN HUB
3.
CONNECT THE SATA CABLE TO THE POWER SUPPLY
CONNECTING THE UNIVERSAL FAN HUB
TO PSU
FAN HUB INPUT
TO MOTHERBOARD

Phanteks Eclipse P600s Specifications

General

Form Factor	Mid Tower
Dimensions	240 mm x 520 mm x 510 mm (W x H x D)
Material	Steel, Tempered Glass, Plastic
Radiator Support	Front: Up to 360mm, Top: Up to 360mm, Rear: Up to 140mm
Maximum GPU Length	435 mm
Maximum CPU Cooler Height	190 mm
Dust Filters	Front, Top, Bottom
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Expansion Slots	7
Front I/O Ports	1x USB 3.1 Gen 2 Type C, 2x USB 3.0, Audio In/Out, Power Button, Reset Button
Cooling Support	Front: 3 x 120mm or 2 x 140mm, Top: 3 x 120mm or 2 x 140mm, Rear: 1 x 120mm or 140mm
Pre-installed Fans	Front: 2x 140mm, Rear: 1x 140mm
Weight	13.5 kg
