Phanteks Enthoo Evolv ATX User Manual

18
BRACKET COMPATIBILITY TABLE
Radiator Fans
up to 360mm
up to (3x) 120mm
up to (2x) 140mm
*For radiator and fans installation, please check compatibility table.
To install, align the bracket and slide in. Use the 4x silver screw to lock in place.
Para instalar, alinhe o suporte e deslize. Use os 5x parafusos prateados para travar no lugar.
Richten Sie die Halterung für die Installation aus und schieben Sie sie hinein. Befestigen Sie sie
mit 4 silberfarbenen Schrauben.
Per l'installazione, allineare la staa e farla scorrere all'interno. Utilizzare le 5 viti per bloccare
in posizione.
Para instalar, alinhe o suporte e deslize. Use os 5x parafusos prateados para travar no lugar.
Para realizar la instalación, alinee el soporte y deslice hacia adentro. Utilice los 5 tornillos platea-
dos para bloquear el conjunto su lugar.
Voor installatie, zet de radiator beugel in positie en schuif in. Gebruik 5x zilveren schroeven om
het te bevestigen.

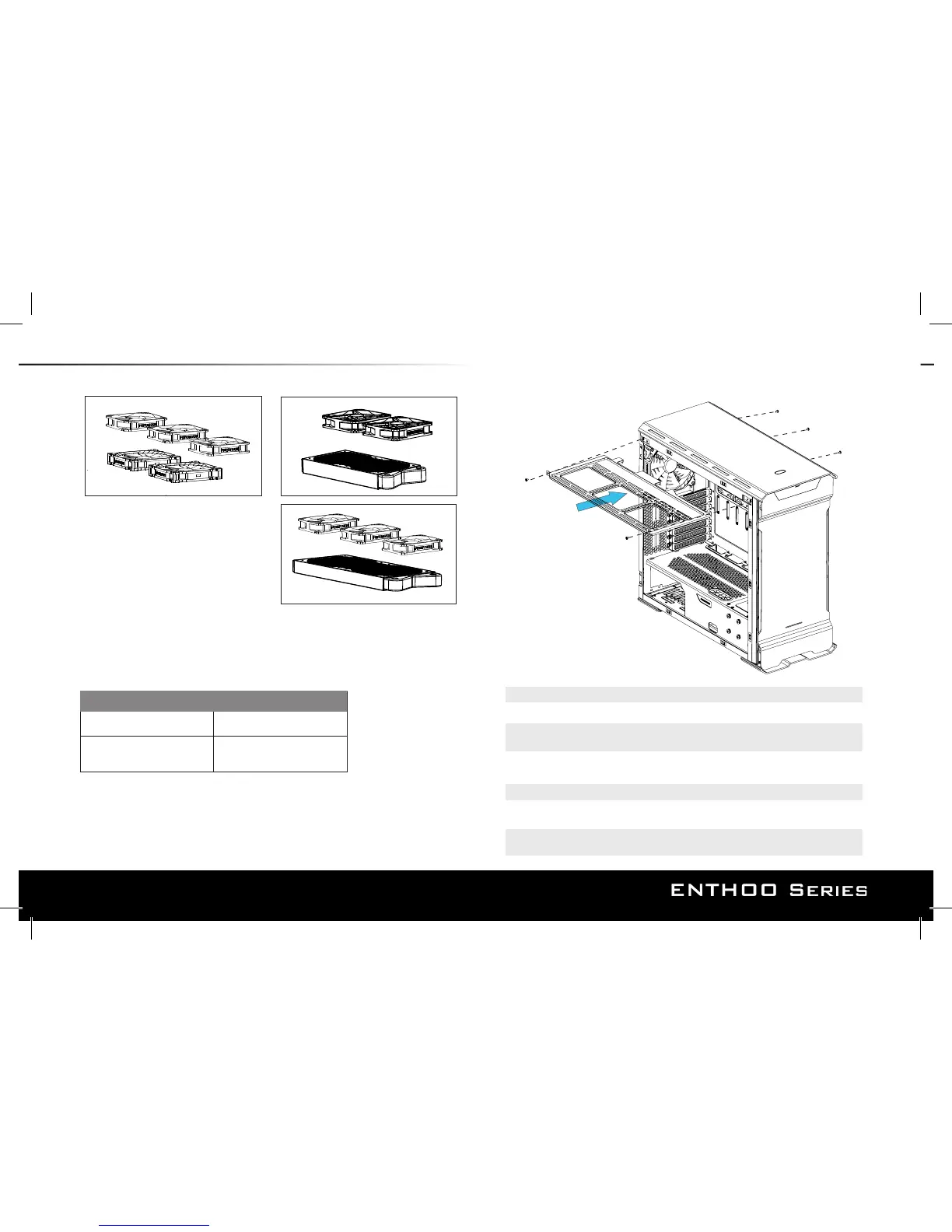

11. RADIATOR BRACKET INSTALLATION

Phanteks Enthoo Evolv ATX Specifications

General

Type	PC
Material	Aluminium, Steel
Form factor	Midi Tower
Side window	Yes
Product color	Silver
Cable management	No
Maximum PSU length	318 mm
Number of 2.5\" bays	3
Number of 3.5\" bays	8
Number of 5.25\" bays	0
Maximum CPU cooler height	194 mm
Number of expansion slots	7
Maximum graphics card length	420 mm
Supported motherboard form factors	ATX, EATX, Micro ATX, Mini-ITX
Supported HDD sizes	2.5, 3.5 \
Fan speed	1200 RPM
Maximum airflow	82.1 cfm
Rear fans installed	1x 140 mm
Front fans installed	2x 140 mm
Top fans diameters supported	120, 140 mm
Top radiator sizes supported	120, 140, 280, 360 mm
Front fans diameters supported	120 mm
Front radiator sizes supported	120, 140, 240, 280, 360 mm
Number of rear fans supported (max)	1
Power supply included	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Package depth	577 mm
Package width	590 mm
Package height	324 mm
Package weight	11900 g

Weight and Dimensions

Depth	510 mm
Width	235 mm
Height	495 mm
Weight	10200 g
Material thickness	3 mm
