Phanteks Enthoo Evolv ATX User Manual

22

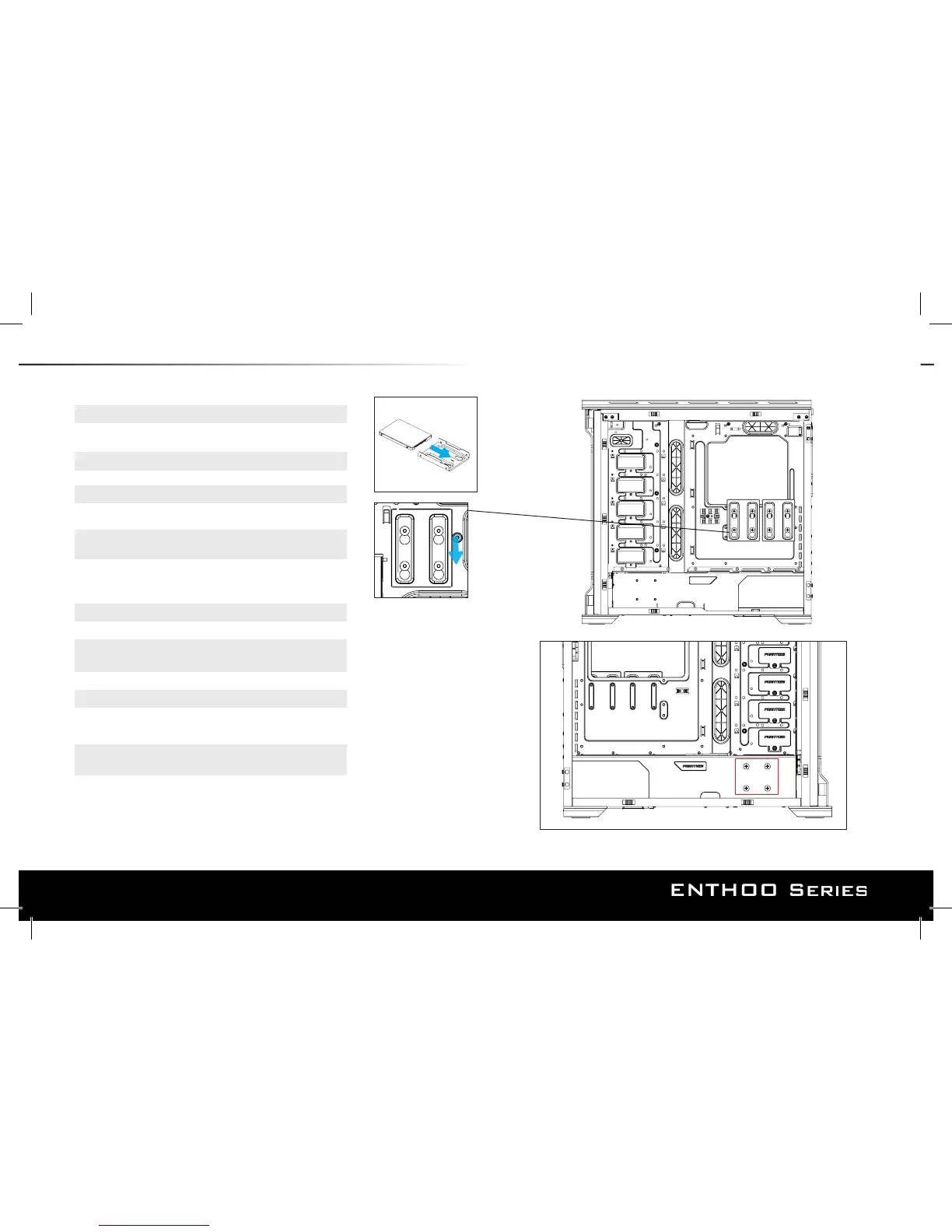

14. DROP-N-LOCK SSD BRACKET
SSD INSTALLATION
Slide in the SSD and screw in from the side to lock in place.
Align the bracket to the rubber and drop down to lock.
Alignez le coin du support avec le guide et baissez-le pour verrouiller.
Richten Sie die Ecke der Halterung an der Führung aus und lassen
sie einrasten.
Allineare l’angolo della staa alla guida e calarla per bloccare.
Alinhe o canto do suporte ao guia e empurre para baixo para travar.
Alinee la esquina del soporte con la guía y empuje hacia abajo para
que quede sujeta.
Plaats de beugel langs de uitlijning en druk richting de pijl om te
bevestigen.
DROP N LOCK
Faites coulisser le disque SSD et vissez-le depuis le côté pour le
verrouiller dans son emplacement.
Schieben Sie die SSD ein und xieren Sie diese seitlich mit Schrauben.
Far scorre l’unità SSD e ssare le viti dal lato per bloccarla in posizione.
Deslize para dentro do SSD e parafuse do lado para travar no local.
Deslice la unidad de estado sólido hacia adentro y atorníllela desde el
lateral para bloquearla en su lugar.
Schuif de SSD in en monteer de schroeven via de zijkant om deze te
vergrendelen.
Second SSD Location

Phanteks Enthoo Evolv ATX Specifications

General

Type	PC
Material	Aluminium, Steel
Form factor	Midi Tower
Side window	Yes
Product color	Silver
Cable management	No
Maximum PSU length	318 mm
Number of 2.5\" bays	3
Number of 3.5\" bays	8
Number of 5.25\" bays	0
Maximum CPU cooler height	194 mm
Number of expansion slots	7
Maximum graphics card length	420 mm
Supported motherboard form factors	ATX, EATX, Micro ATX, Mini-ITX
Supported HDD sizes	2.5, 3.5 \
Fan speed	1200 RPM
Maximum airflow	82.1 cfm
Rear fans installed	1x 140 mm
Front fans installed	2x 140 mm
Top fans diameters supported	120, 140 mm
Top radiator sizes supported	120, 140, 280, 360 mm
Front fans diameters supported	120 mm
Front radiator sizes supported	120, 140, 240, 280, 360 mm
Number of rear fans supported (max)	1
Power supply included	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Package depth	577 mm
Package width	590 mm
Package height	324 mm
Package weight	11900 g

Weight and Dimensions

Depth	510 mm
Width	235 mm
Height	495 mm
Weight	10200 g
Material thickness	3 mm
