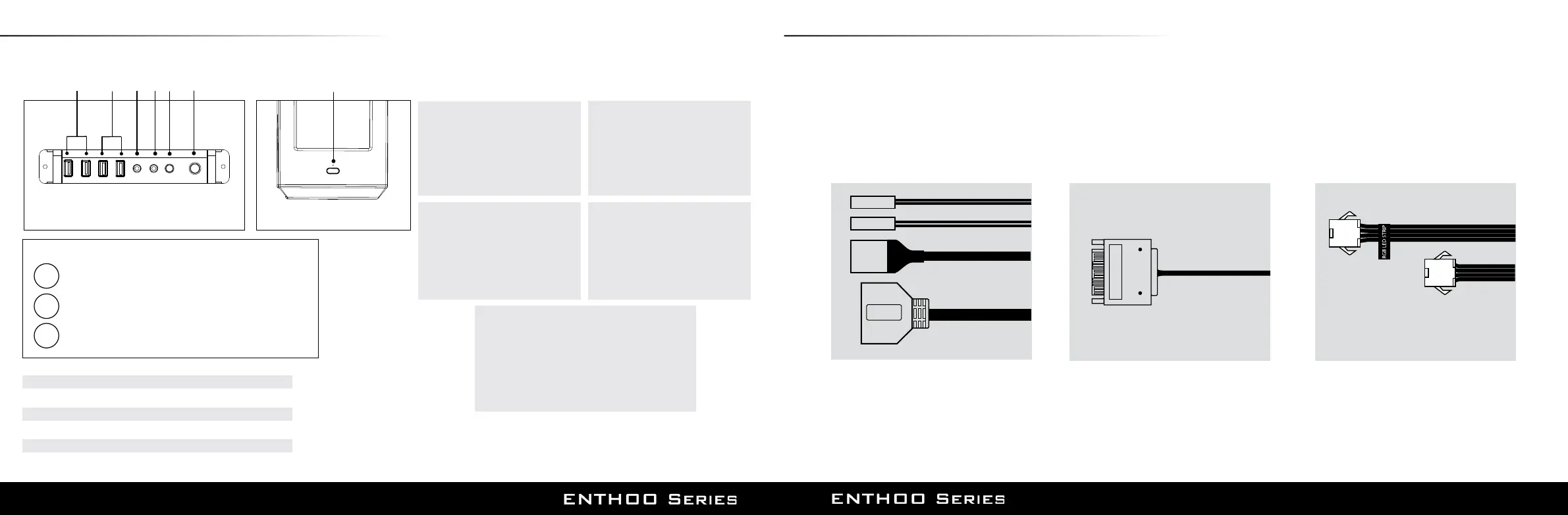

5. I/O PORTS AND FRONT PANEL
TOP VIEW
6. CONNECTIONS
Long Press: On/O
Short Press (<1sec): Choose LED Color (10 colors)
2 Sec Press: Choose Mode
Mode 1: Static Mode 2: Breathing Mode 3: Color Cycle
<1 sec
2 sec
HOLD
RGB LED Control (6) Instructions:
** See page 11 for connection details.
** 具体内容请参照第11 页
** 接続の詳細については 11 ページをご覧ください。
** 연결에 대한 자세한 내용은 11페이지를 참조하십시오.
** Описание процедуры подключения см. на стр. 11.
RGB LED STRIP
Connects Phanteks’ multicolor LED strip for
interior lighting.
Power SW
HD
AUDIO
H.D.D LED
USB 3.0
12V SATA input
TO PSU
TO PHANTEKS
RGB LEDSTRIPS
RGB connector
(expansion)
TO MOTHERBOARD
6
1. USB 3.0
2. USB 2.0
3. Microphone
4. Headphone
5. Power Reset
6. LED Switch
7. Power Button/HDD LED
1. USB 3.0
2. USB 2.0
3. 麦克风
4. 耳机
5. 重启
6. LED开关
7. 电源按钮 / 硬盘灯
1. USB 3.0
2. USB 2.0
3. マイクロホン
4. ヘッドホン
5. 電源リセット
6. LED スイッチ
7. 電源ボタン / HDD LED
1. USB 3.0
2. USB 2.0
3. Микрофон
4. Наушники
5. Сброс питания
6. Переключатель со светодиодом
7. Кнопка питания / Индикатор жесткого
диска
1. USB 3.0
2. USB 2.0
3. 마이크
4. 헤드폰
5. 전원 리셋
6. LED 스위치
7. 전원 버튼 / HDD LED
1
2
3
4
5
FRONT VIEW
6*
