Phanteks Evolv X User Manual

29
TO ITX MOTHERBOARD
VERTICAL GPU SECOND SYSTEM
REQUIRE:
2x
2x

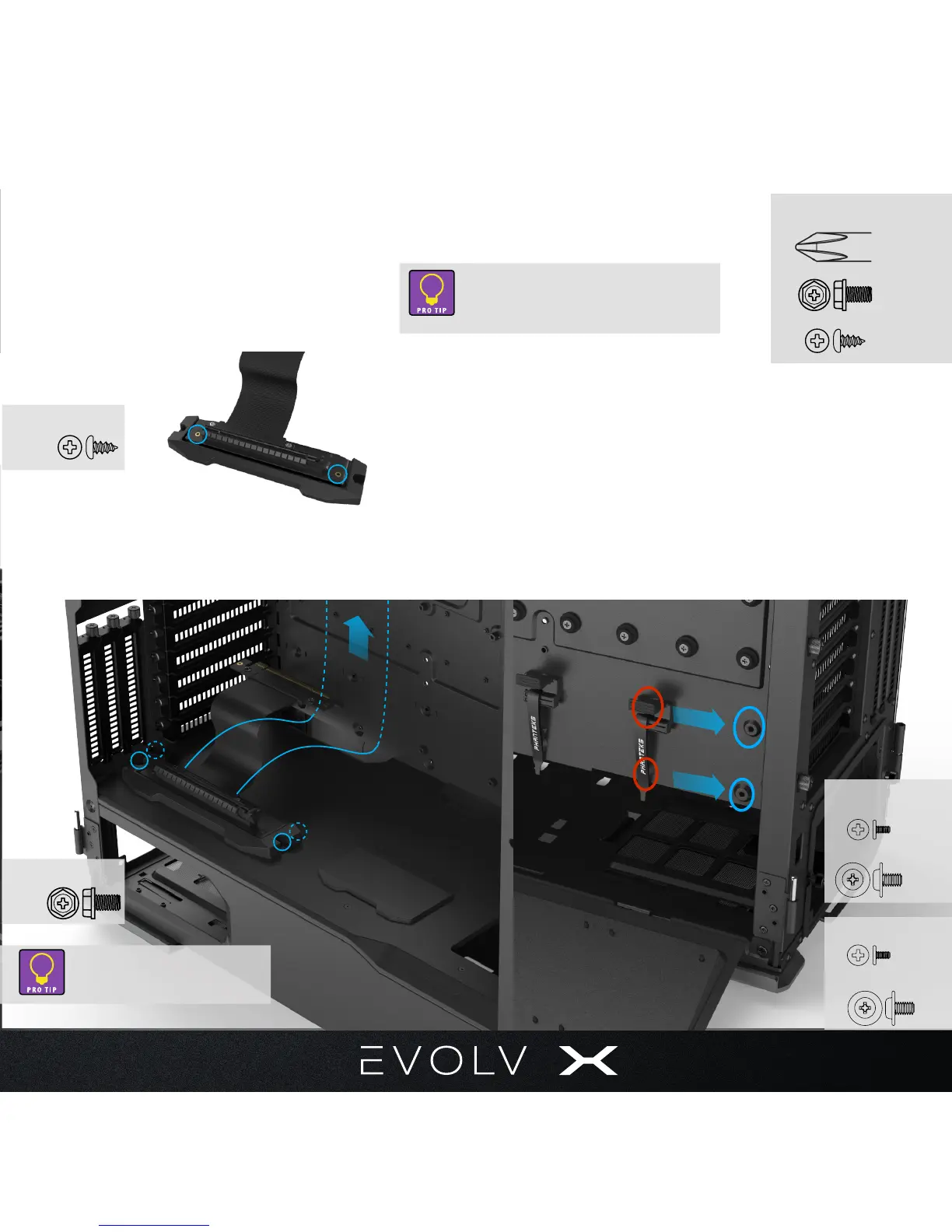

1.
INSTALL RISER CABLE
2.
INSTALL VERTICAL GPU MOUNT WITH 2X
SCREWS
Riser Cable sold separately
(PH-CBRS_PR60)
3.
MOVE VELCRO TIE
The GPU Mount has mounting positions.
Position A allows for better air cooling
and 3-slot GPU cards.
A
B
Depending on your needs, it’s not always necessary
to install a GPU for your second system when your ITX
motherboard is equipped with an onboard GPU.
1x
1x
1x
REMOVE:
1x

Phanteks Evolv X Specifications

General

Form Factor	Mid Tower
Motherboard Support	E-ATX, ATX, Micro-ATX, Mini-ITX
Material	Aluminum, Steel, Tempered Glass
Maximum GPU Length	435 mm
Maximum CPU Cooler Height	190 mm
Power Supply	ATX
Maximum PSU Length	250 mm
Front I/O Ports	2 x USB 3.0
Cooling Support	Front: 3 x 120mm or 2 x 140mm, Top: 3 x 120mm or 2 x 140mm, Rear: 1 x 120mm or 140mm
Dimensions	240 mm x 520 mm x 520 mm (W x H x D)
Included Fans	3 x 140 mm (2 Front, 1 Rear)
Expansion Slots	7+3
