Phasak PH 9210 - UPS Configuration Settings

EN
3. Operations
3.5 UPS Setting
01: Output voltage setting
02: Frequency Converter enable/disable
03: Output frequency setting

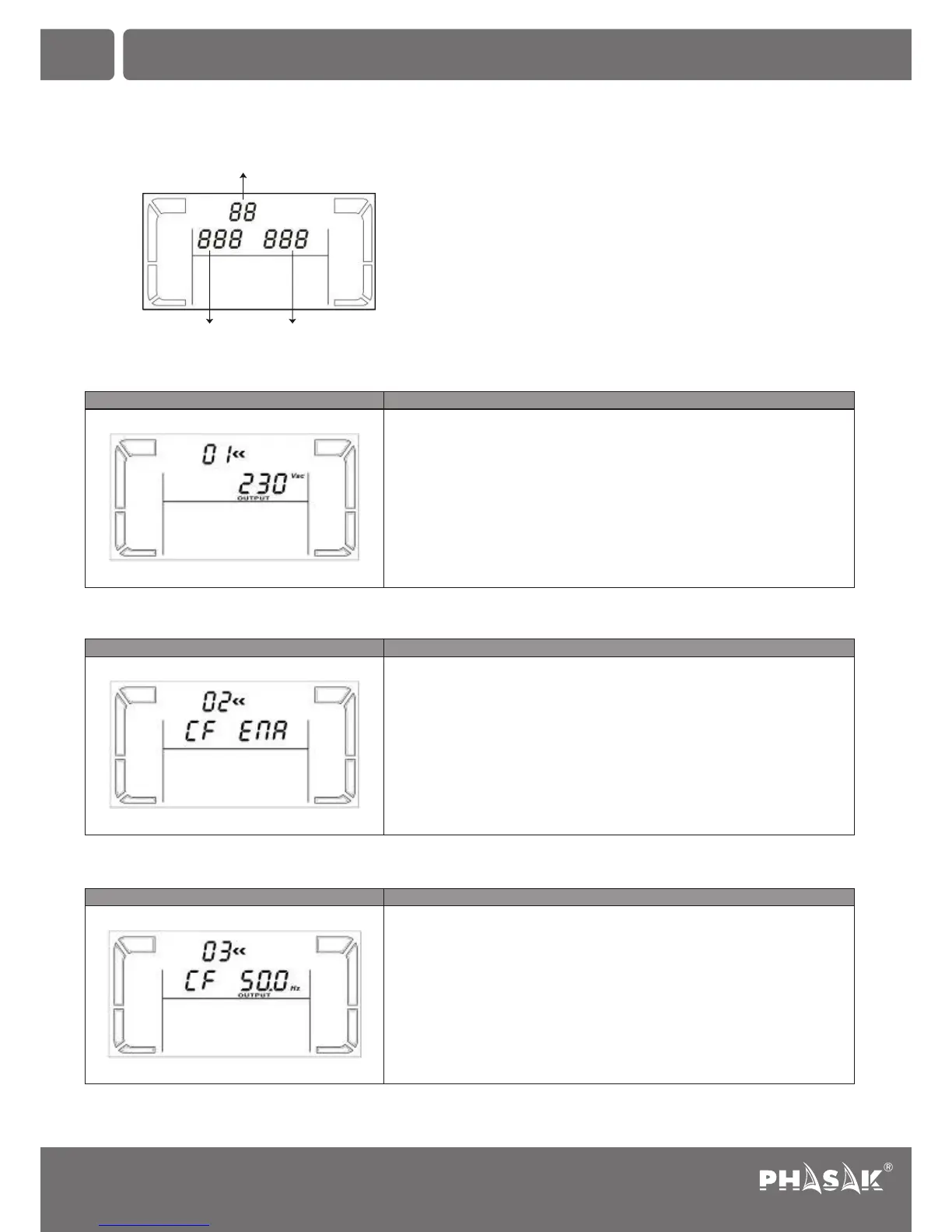

There are three parameters to set up the UPS.
Parameter 1: It's for program alternatives.
There are 9 programs to set up. Refer to the table.
Parameter 2 and parameter 3 are the setting options or values for each
program.
Parameter 1
Parameter 2
Parameter 3
Interface
Parameter 3: Output voltage
For 208/220/230/240 VAC models, you may choose the following output voltage:
208: present output voltage is 208Vac
220: present output voltage is 220Vac
230: present output voltage is 230Vac
240: present output voltage is 240Vac
Setting
Interface
Parameter 2 & 3: Enable or disable converter mode.
You may choose the following two options:
CF ENA: converter mode enable
CF DIS: converter mode disable
Setting
Interface
Parameter 2 & 3: Output frequency setting.
You may set the initial frequency on battery mode:
BAT 50: present output frequency is 50Hz
BAT 60: present output frequency is 60Hz
If converter mode is enabled, you may choose the following output frequency:
CF 50: present output frequency is 50Hz
CF 60: present output frequency is 60Hz
Setting
