4.1.3 Capacitance Test

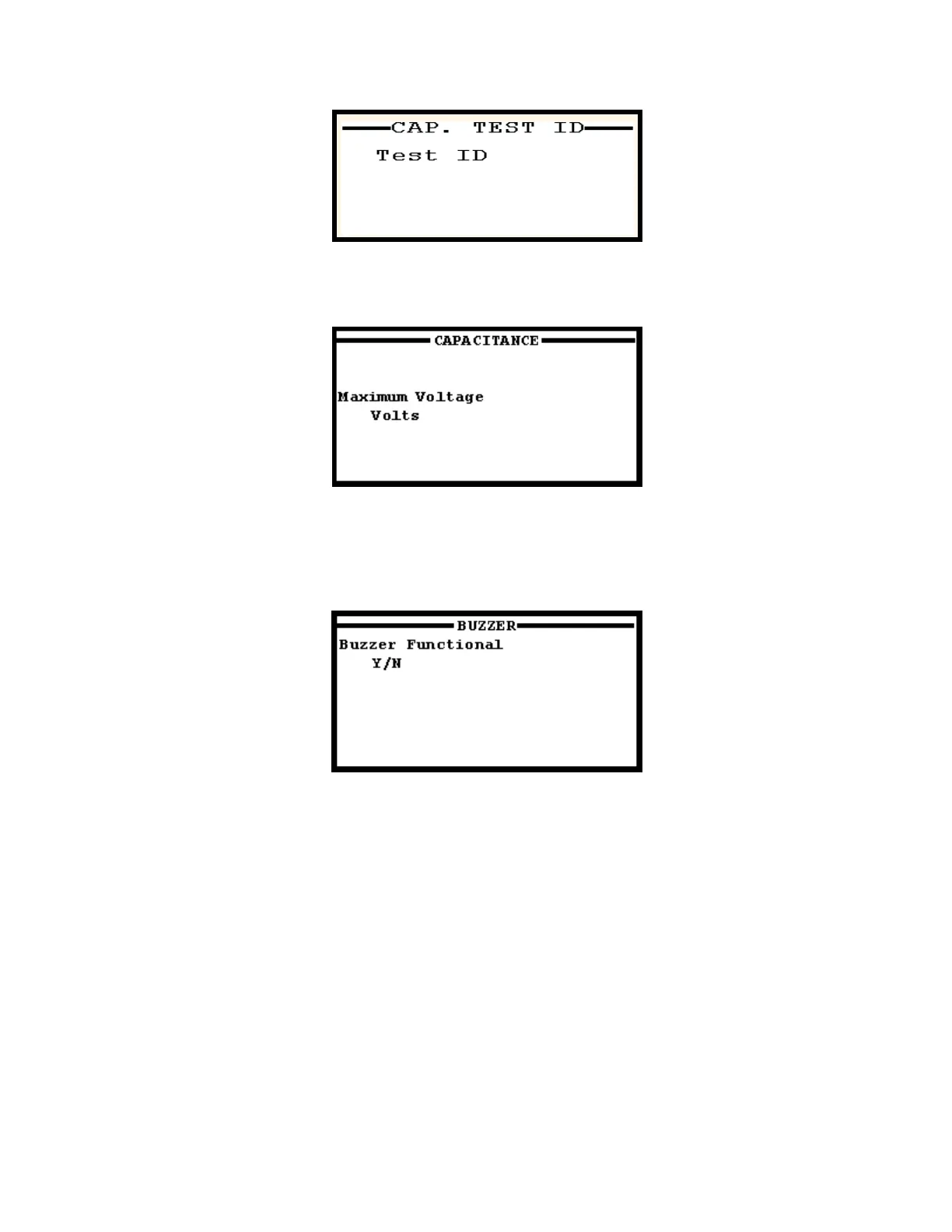

FIGURE 21: CAPACITANCE TEST ID Screen
Enter an alphanumeric test identification (or leave blank) and press enter.
FIGURE 22: Capacitance Setup Screen
At the Capacitance Setup Screen (Figure 22), enter the maximum voltage to be applied in volts (5000V
MAX). Press Enter to bring up the option screen for the on-board buzzer. (Figure 23)
FIGURE 23: Buzzer Option Screen
Choose whether to enable HV warning buzzer then press enter to bring up the HV ON Waiting Screen to
apply high voltage (Figure 24).
