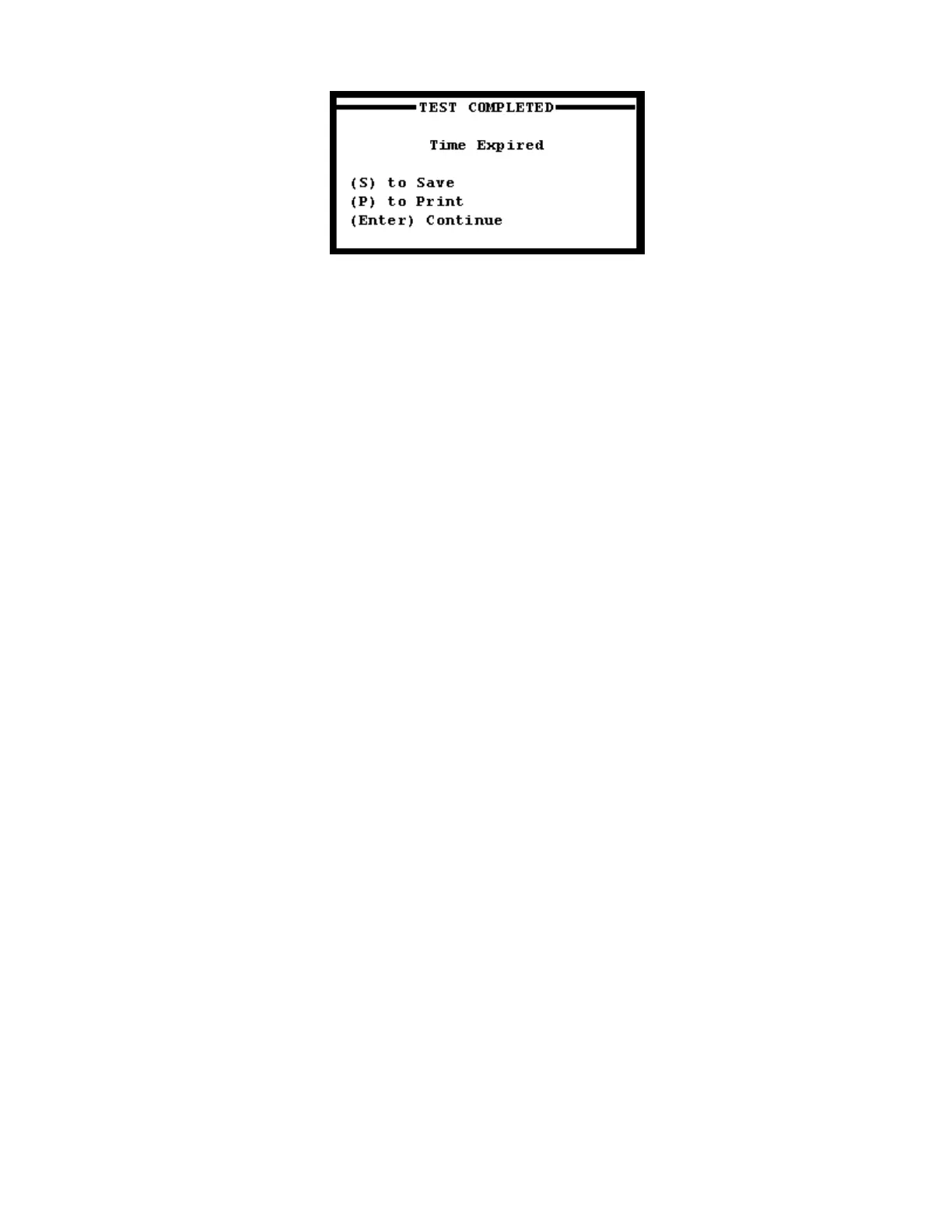

FIGURE 29: Test Completion Page
The Test Completion Page (Figure 29) is displayed upon pressing HV OFF after completion of the
Capacitance Test, and after applying a discharge stick as prescribed earlier. The operator is given the choice
to save or print the final test data. The PM15-4A will discharge the test object upon test completion if the
capacitive load is small enough to use the internal discharge circuit. Depending on the size of load
capacitance, dangerous voltages may be present at the end of the lead for a few moments. Always ground
any high voltage leads before removing leads from test object. The use of appropriately rated discharge and
grounding devices is recommended to ensure that the test object is fully discharged and grounded before
removing leads after testing is complete. A minimum discharge time which is approximately 4 times that of
the voltage application duration is recommended.
