Phenix Technologies PM15-4A - Dielectric Absorption Ratio (D.A.R.) Test; D.A.R. Test Completion Page Options

4-22

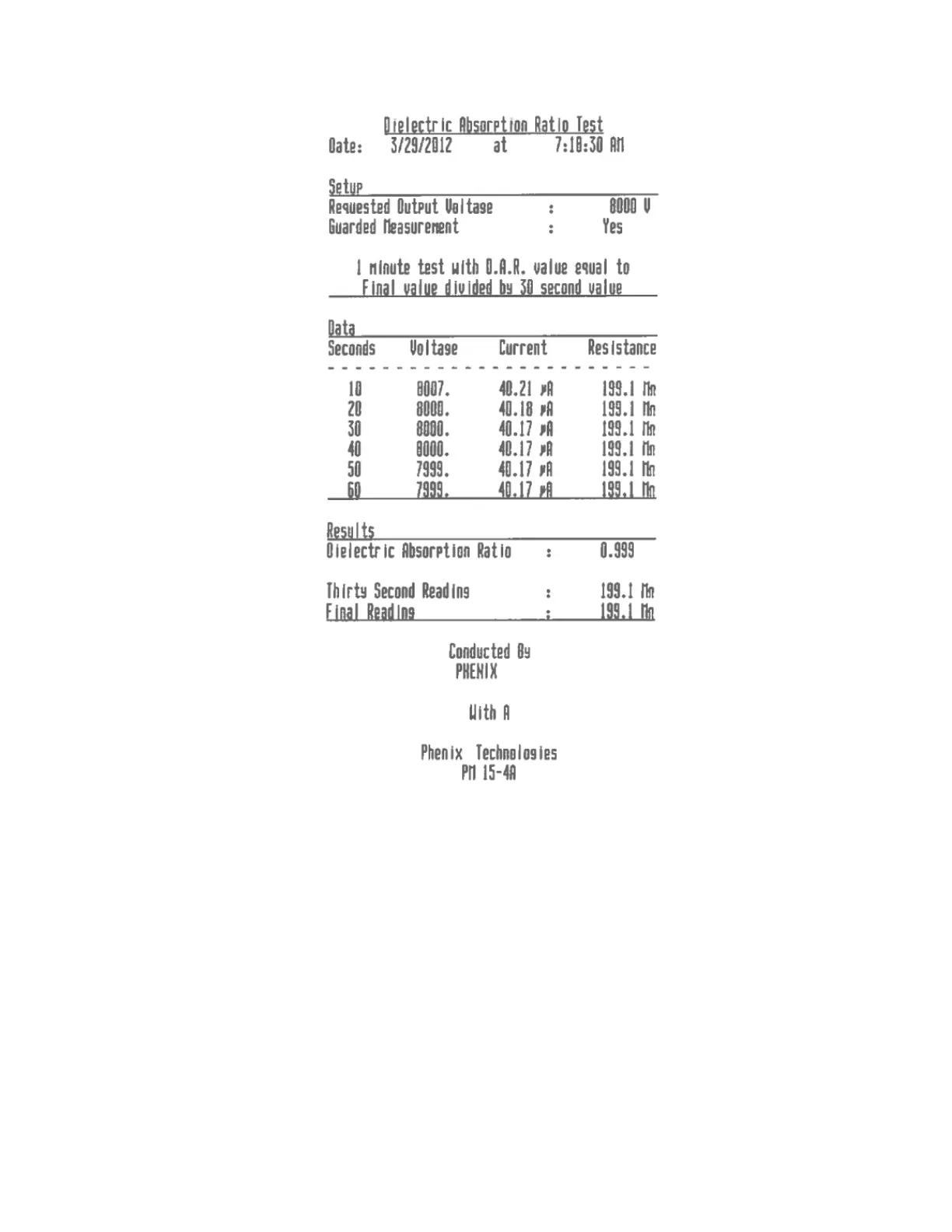

Figure 48: Dielectric Absorption Ratio Test Results Sample Printout
Figure 48 shows a sample printout of a Dielectric Absorption Ratio Test. This printout reflects the results of a
D.A.R. test with one-minute duration at 8kV output.
