10BDL3051T
8

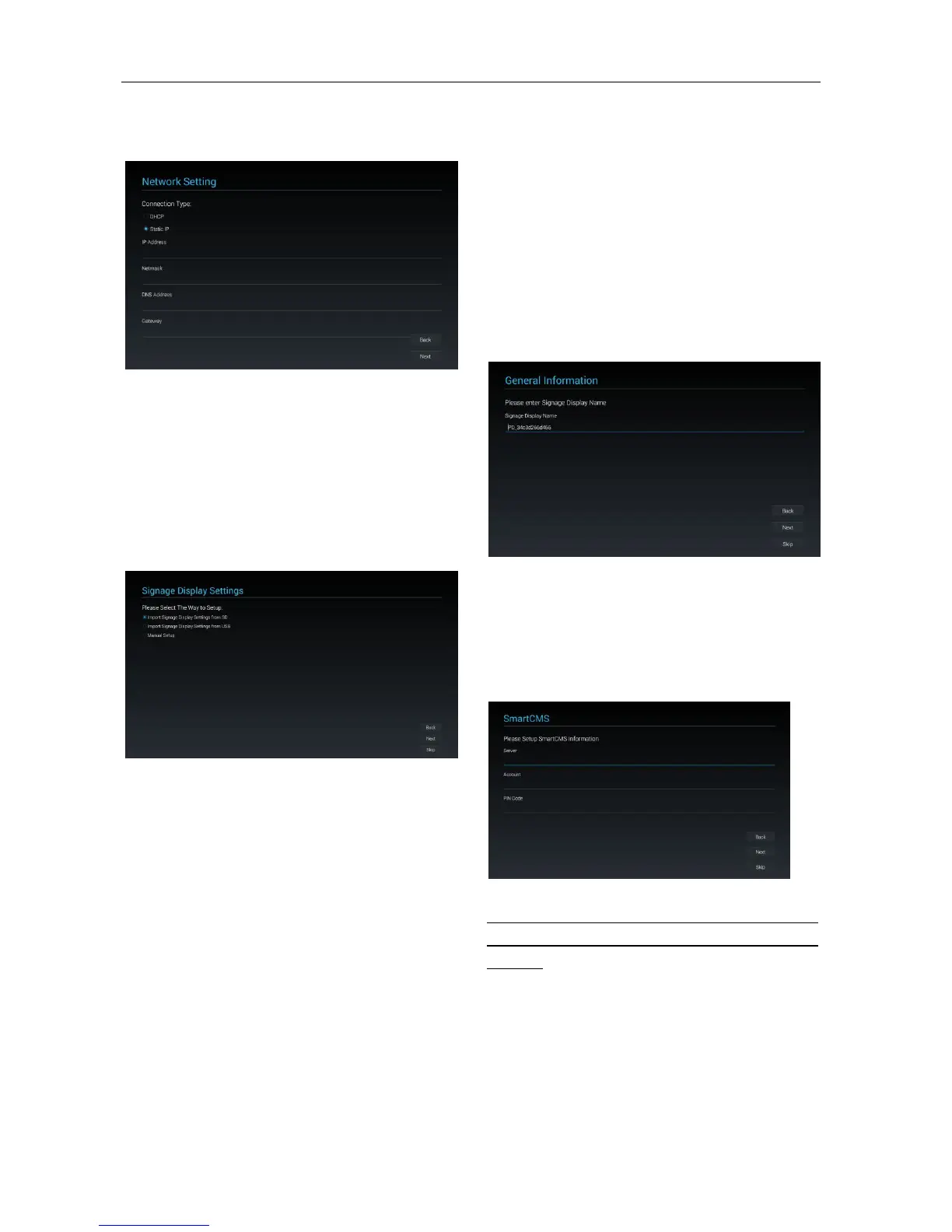

In Static IP mode, the user can set IP Address,
Netmask, DNS Address, and Gateway manually.
3.1.4 Signage Display Settings
The user can choose to import Database or setup
manually.
You can click “Skip” if you do not want to run this
page.
PS:(1) Database needs to put in the “Philips” folder
in SD or USB drive.
(2) Databasefile name should be “settings.db”
(1) Import Signage Display Settings from SD
Import Database from SD card, it will jump to the
page: 5 Clone Media Files into internal .
PS: If the Database is imported successfully, you
need to re-boot the display.
(2) Import Signage Display Settings from USB
Import Database from USB drive, it will jump to the
page: 5 Clone Media Files into internal .
PS: If the Database is imported successfully, you
need to re-boot the display.
(3) Manual Setup
If you choose manual setup, you need to setup
some items:
* General Information
* SmartCMS
* Remote Control
When you finish setup, it will jump to the page: 5
Clone Media Files into internal .
PS: Ne need to re-boot after setup.
General Information
It will show the default Signage Display name, but
the user can change to other name.
You can click “Skip” if you do not want to change
the name.
PS: If the name is blank, you can not click “Next” to
go to next page.
SmartCMS
The user can setup the SmartCMS Server, Account,
and PIN Code.
You can also click “Skip” to skip this setting.
PS: If no data entered, you can not click “Next” to
go to next page.
Remote Control
You can choose to enable or disable the Remote
Control function. And you can set the Server
address.
You can click “Skip” to skip this setting.
PS: If no data entered, you can't click “Next” to go
to next page.

Philips 10BDL3051T Specifications

General

Multi-touch	Yes
Aspect ratio	16:10
Response time	30 ms
Display diagonal	10.1 \
Display brightness	300 cd/m²
Display resolution	1280 x 800 pixels
Display technology	LED
Contrast ratio (typical)	800:1
Display number of colors	262144 colors
Display diagonal (metric)	25.6 cm
Number of simultaneous touchpoints	5
Built-in camera	No
Power supply type	DC
Placement supported	Horizontal/Vertical
USB 2.0 ports quantity	1
Mean time between failures (MTBF)	50000 h
Certification	CB, CE, FCC A, UL
Product color	Black
Glass thickness	0.7 mm
Panel mounting interface	75 x 75 mm
Number of OSD languages	18
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, NOR, POL, POR, RUS, SWE, TUR
RMS rated power	4 W
Number of built-in speakers	2
Cables included	DC, HDMI, USB
Sustainability certificates	RoHS
Operating altitude	0 - 3000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Power consumption (standby)	0.5 W
Power consumption (typical)	6 W
Compatible memory cards	MicroSD (TransFlash)

Weight and Dimensions

Depth	29 mm
Width	261 mm
Height	167.2 mm
Weight	710 g
