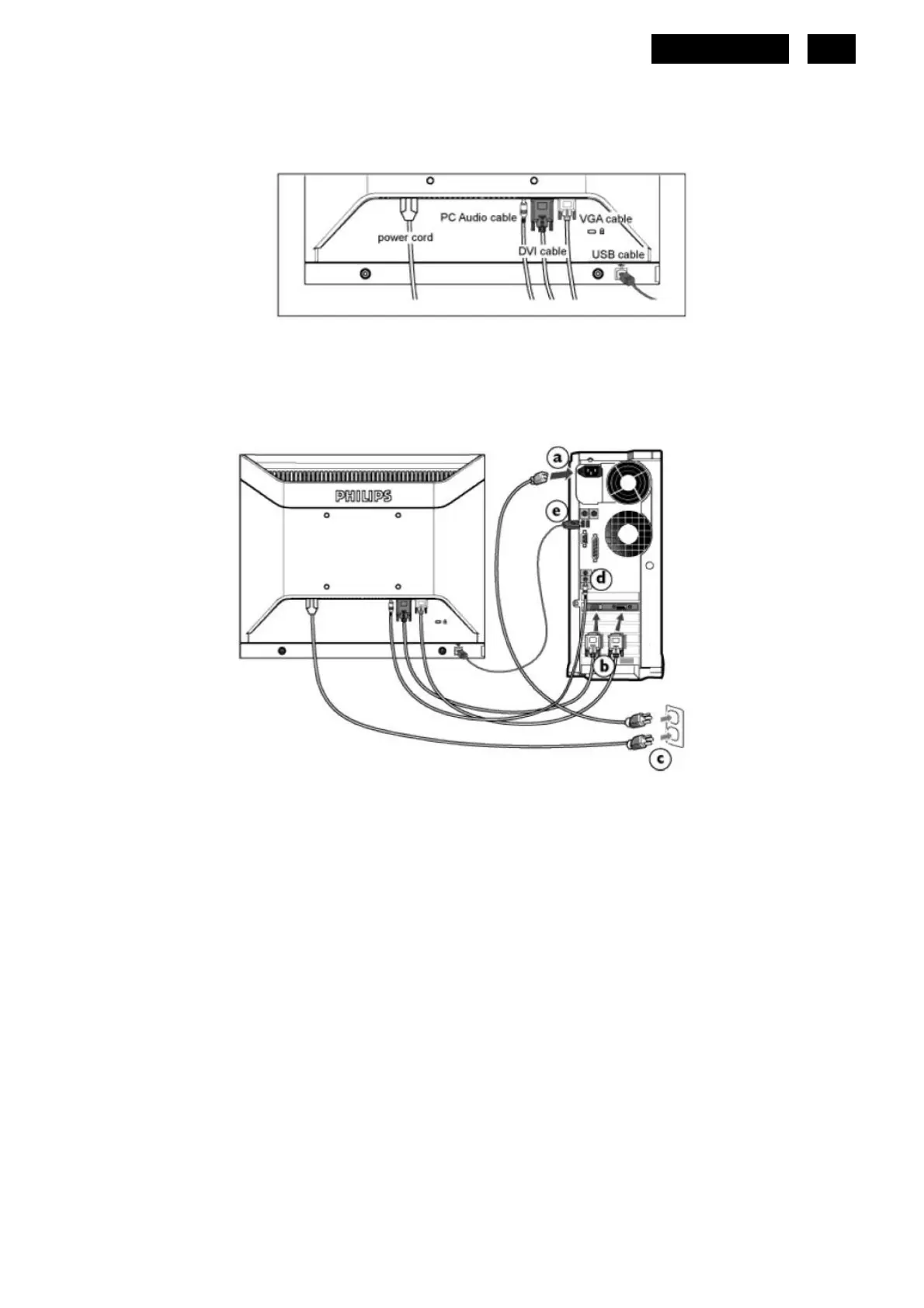

3.4 Connecting to the PC
1) Connect the power cord to the back of the monitor firmly. (Philips has pre-connected VGA cable for the first
installation.
2) Connect to PC
(a) Turn off your computer and unplug its power cable.
(b) Connect the monitor signal cable to the video connector on the back of your computer.
(c) Plug the power cord of your computer and your monitor into a nearby outlet.
(d) Connect the PC audio cable to the audio connector on the back of your computer.
(e) USB plug
(1) Connect USB upstream port on monitor and the USB port on PC with a USB cable.
(2) The USB downstream port is now ready for any USB device to plug in.
(f) Turn on your computer and monitor. If the monitor displays an image, installation is complete.
Note: The USB plug is a pass through connection whether it can support USB 1.1 or USB 2.0 depends on your PC's
specification.
