Philips 190B8CS/00 - Input;Output Specification; Input Signal Connector

12
HUDSON 8

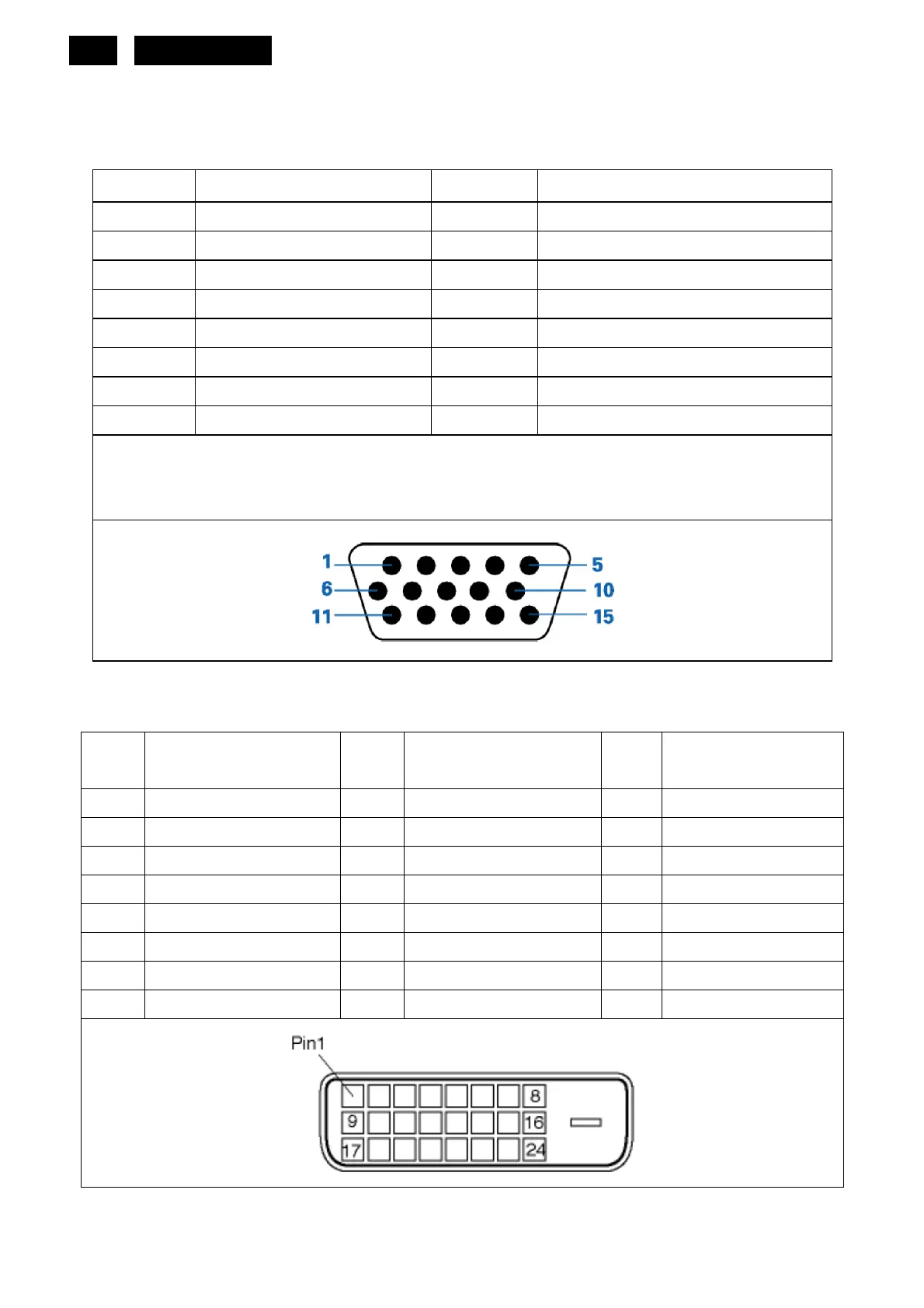

4. Input/ Output Specification
4.1 Input Signal Connector
Analog connectors
Pin No. Description Pin No. Description
1. Red video input 9. +5V
2. Green video input 10. Logic Ground
3. Blue video input 11. Ground
4. Sense (GND) 12. Serial data line (SDA)
5. Cable detect (GND) 13. H. Sync
6. Red video ground 14. V. Sync
7. Green video ground 15. Data clock line (SCL)
8. Blue video ground
VGA connector layout
DVI connectors
Pin
No.
Description
Pin
No.
Description
Pin
No.
Description
1. T.M.D.S Data2- 9. T.M.D.S Data1- 17. T.M.D.S Data0-
2. T.M.D.S Data2+ 10. T.M.D.S Data1+ 18. T.M.D.S Data0+
3. T.M.D.S Data2/4 Shield 11. T.M.D.S Data1/3 Shield 19. T.M.D.S Data0/5 Shield
4. No connector 12. No connector 20. No connector
5. No connector 13. No connector 21. No connector
6. DDC Clock 14. +5V Power 22. T.M.D.S Clock Shield
7. DDC Data 15. Ground (for +5V) 23. T.M.D.S Clock+
8. No connector 16. Hot Plug Detection 24. T.M.D.S Clock-
