HUDSON 8

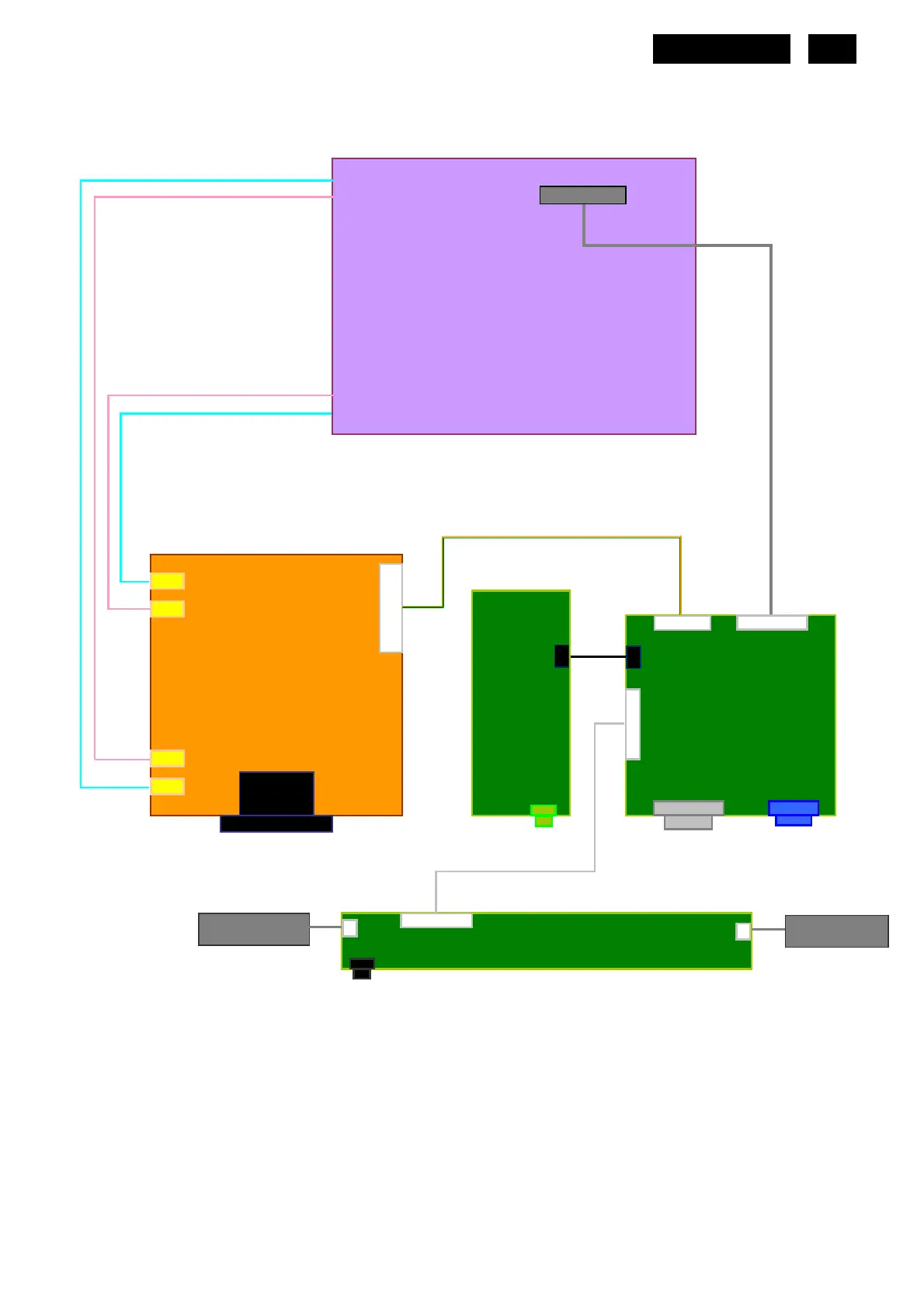

8. Wiring Diagram
Panel
Power Board
Audio
Board
Main Board
Key Board
CN301 CN402
CN403
CN101
CN401
CN102
CN102
CN101
DVI
D-SUB
Phone Jack
CN601
Phone Jack
CN104
CN103
Left Speaker
Right Speaker
AC-IN
CN901
CN801
CN802
CN804
CN803
CN902
Lamp Wire Harness
Lamp Wire Harness
Power Wire Harness
Key Board Wire
FPC
Panel Interface
CN602
