241B4LPY LCD 3
Technical Data
AUO
Type NR. : AUO M240HW01 VD
Resolution : 1920 x 1080 (FHD)
Outside dimensions
: 556.0(H) x 323.2(V) x 11.5(D) mm
Pitch (mm) : 0.27675mm x 0.27675mm
Color pixel arrangement
: 1920 horiz. by 1080 vert. Pixels. RGB
stripe arrangement
Display surface : Hard coating (3H), Anti-glare treatment
Color depth
: 16.7 M colors 8-bit with A-FRC, 16.7M
colors
Backlight : WLED
Active area (W x H) : 521.28mm (H) ×293.22mm (V) mm
View angle (CR=10) : >=170 for Right/Left (Typ)
: >=160 for Up/Down (Typ)
Contrast ratio : >=1000:1 (Typ)
White luminance : 250 (center,Typ)
Color gamut
: >=72% (Typ.)
Response time : 5 ms (Typ)
Vertical frequency range : 47~75 H z
Scanning frequencies
Hor.: 30 – 83 K Hz
Ver.: 50 - 76 Hz
Analog : Support RGB WUXGA 1920x1200@60,
2048x1152@60hz input for NT68668UMFG
205Mhz HPLL With 64 steps phase Adjust for RGB Channel in
NT68668UMFG
Digital : Integrated Single Link TMDS Receiver up To 225MHz
deep color mode
Power range: FULL RANGE POWER SUPPLY 90 – 264 VAC
Ambient temperature: 0
C
Power input connection
Power cord length : 1.8 M
Power cord type : 3 leads power cord with protective earth plug.
Power management
Mode HS
YN
C
VSYN
C
Video Pwr-con
s.
Indication Rec.
time
Power-On On On Active
<32W(ma
x.)<
<45W(ma
x.)
EPA5.0 <
33.97W
White LED --
Standby Off Off Blanked < 0.2W
Blinking white
LED
Period 1sec on
3sec off
<3s
DC Power
Off
ʳʳ N/A < 0.2 W LED Off ʳ

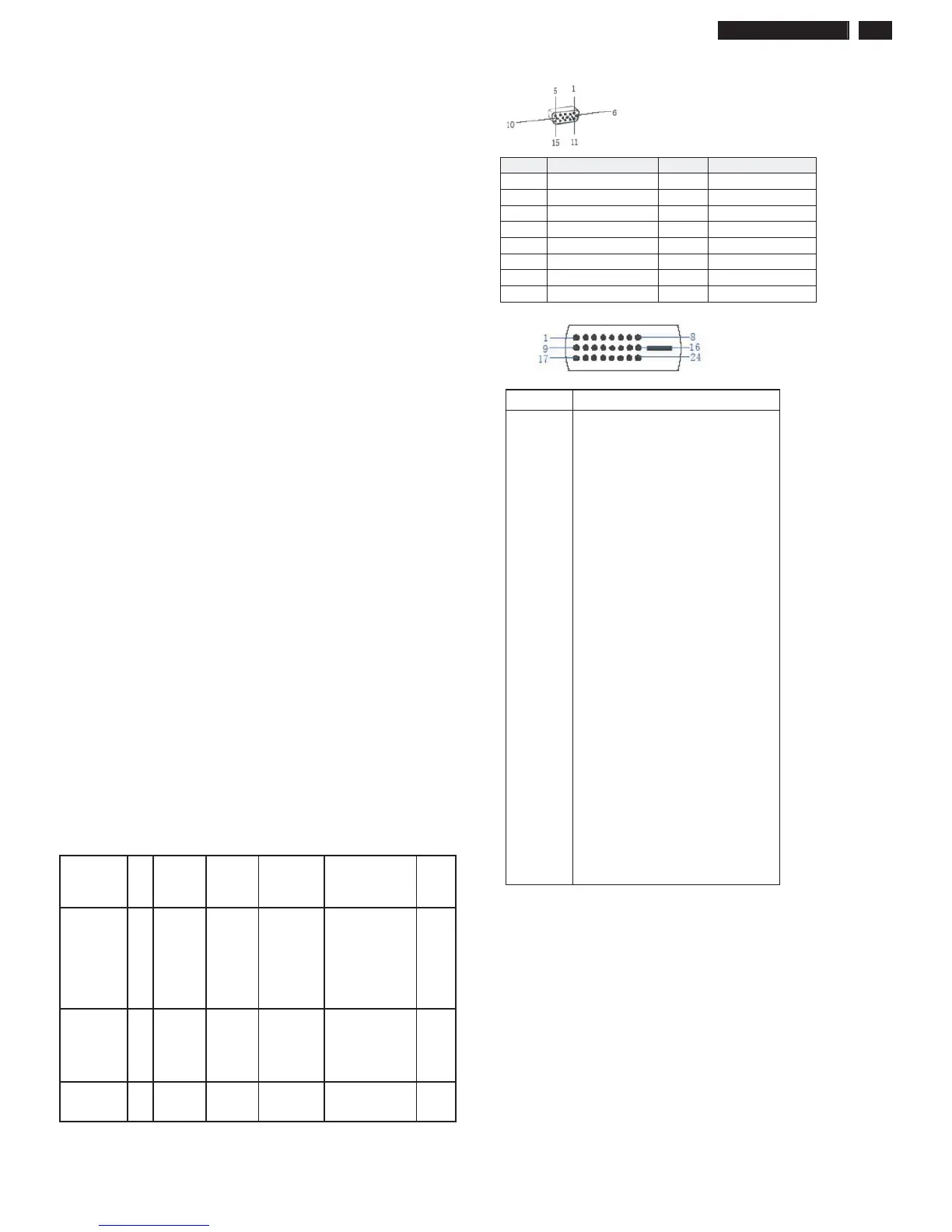

PIN No. SIGNAL PIN No. SIGNAL
1 Red 9 DDC +3.3V or +5V
2 Green/ SOG 10 Logic GND
3 Blue 11 Sense (GND)
4 Sense (GND) 12 Bi-directional data
5 Cable Detect (GND) 13 H/H+V sync
6 Red GND 14 V-sync
7 Green GND 15 Data clock
8 Blue GND
ʳʳ
Susceptibility of display to external environment
Operating
- Temperature : 0 to 40 degree C
- Humidity :80% max
- Altitude :
0-3658m
- Air pressure : 600-1100 mBAR
Storage
- Temperature : -20 to 60 degree C
- Humidity : 95% max
- Altitude : 0-12192m
- Air pressure : 300-1100 mBAR
Note: recommend at 5 to 35qC, Humidity less than 60 %
Pin No. Description
1 T.M.D.S. data2-
2 T.M.D.S. data2+
3 T.M.D.S. data2 shield
4 No Connect
5 No Connect
6 DDC clock
7 DDC data
8 No Connect
9 T.M.D.S. data1-
10 T.M.D.S. data1+
11 T.M.D.S. data1 shield
12 No Connect
13 No Connect
14 +5V Power
15 Ground (for +5V)
16 Hot plug detect
17 T.M.D.S. data0-
18 T.M.D.S. data0+
19 T.M.D.S. data0 shield
20 No Connect
21 No Connect
22 T.M.D.S clock shield
23 T.M.D.S. clock+
24 T.M.D.S. clock-
