Mechanical Instructions
EN 18 LC8.1U LA4.
4.3.9 Small Signal Board (SSB)
Refer to below figure for details.
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.
Refer to next figures or details.
1. Unplug the LVDS connector(s) [1].
Caution: be careful, as this is a very fragile connector!
2. Unplug the connectors [2].
3. Remove the screws [3].
4. The SSB can now be taken out of the set, together with the
front shield and the side cover.
5. To remove the shield, remove the screws [4] and lift it of
while releasing clips [5].
6. Release clip [6] and slide the cover sidewards from the
SSB.

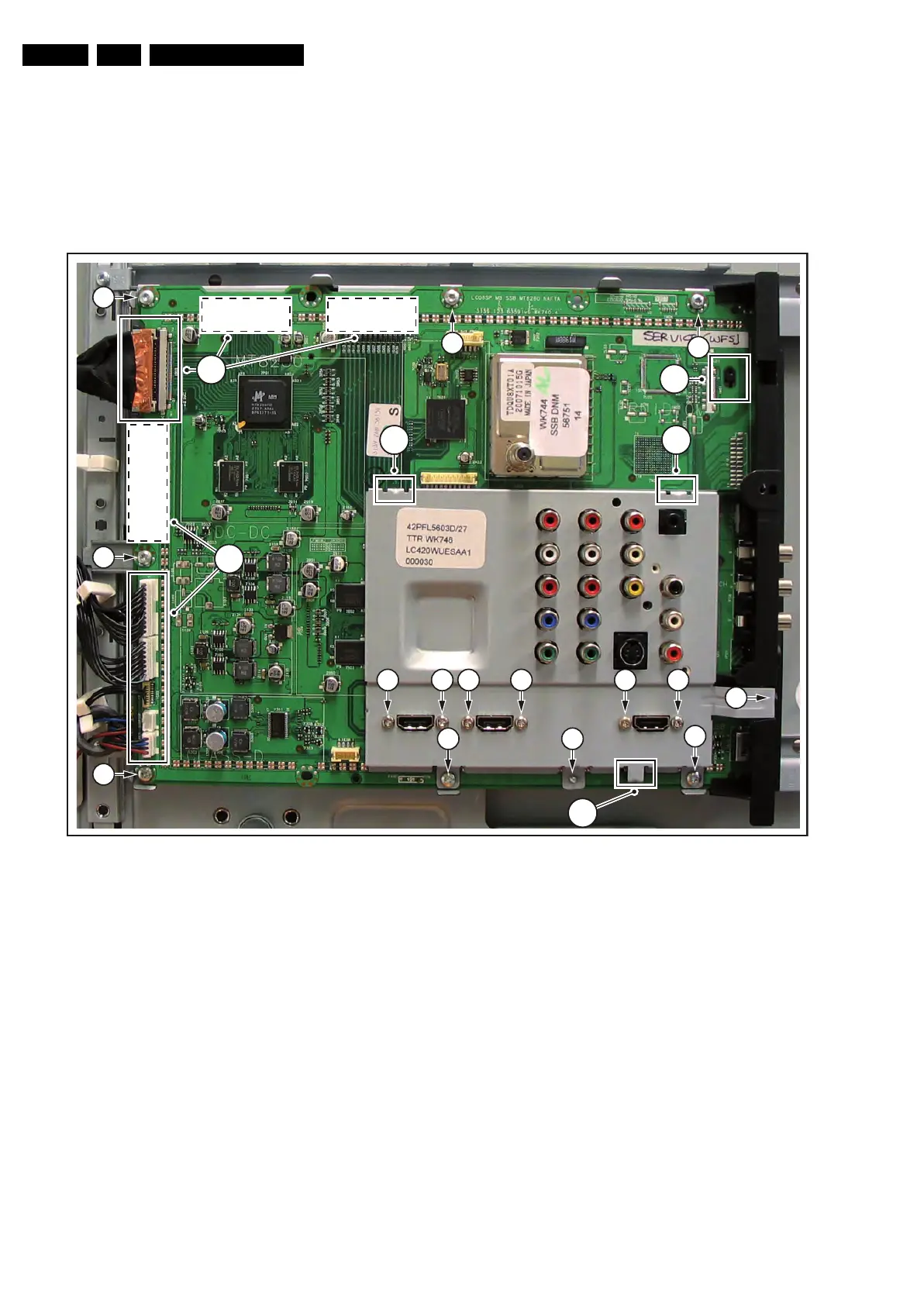

Figure 4-18 Small Signal Board
H_17740_019.eps
230108
6
3
3
3
3
4 4 4 4 4 4
4
4
3
3
3
1
5
55
2
OPTIONAL
OPTIONAL
OPTIONAL
