AUDIO OUT L/R 5.
Sound output cinch connectors for home
theatres or other audio systems.
TV ANTENNA6.
HDMI 1/2/3 7.
HDMI input connectors for Blu-ray Disc
players, digital receivers, game consoles and
other high-definition devices.
Note D
The number of HDMI connectors available
may vary according to your TV model.
AUDIO IN
8.
Mini-jack connector for PC audio in (when
connecting a PC via a DVI-HDMI adaptor).
7 Connect devices
7�1 Connection overview

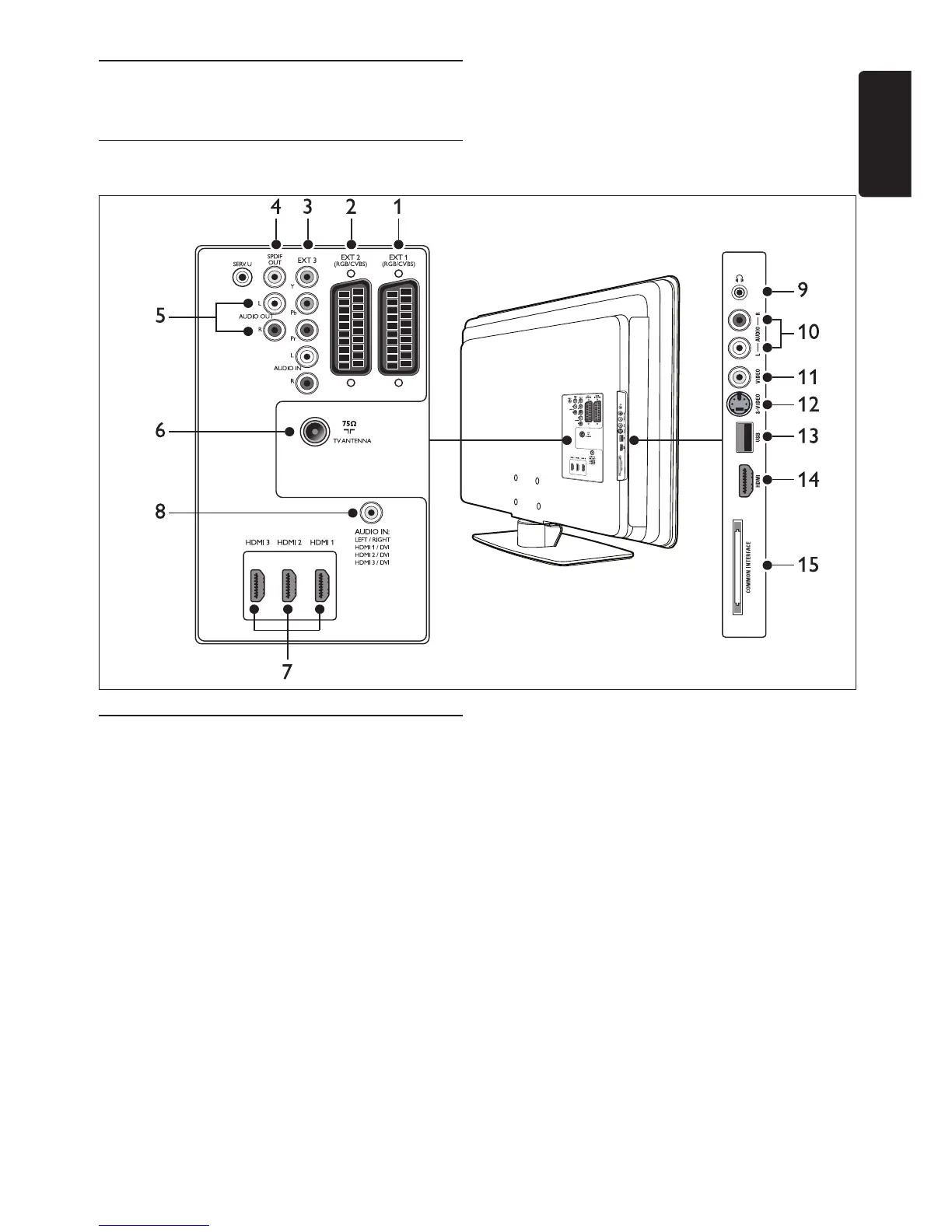

Back connectors
EXT 11.
First SCART connector for DVD players,
VCRs, digital receivers, game consoles and
other SCART devices. Supports Audio L/R,
CVBS in/out, RGB.
EXT 2
2.
Second SCART connector. Supports Audio
L/R, CVBS in/out, RGB.
EXT 3
3.
Component video (Y Pb Pr) and Audio
L/R input connectors for DVD players,
digital receivers, game consoles and other
component video devices.
SPDIF OUT 4.
SPDIF sound output connector for home
theatres and other audio systems.
