Philips 32PFL3514D - 9 Connect Devices; Connection Overview

9 Connect Devices
This section describes how to connect various devices with different
connectors and supplements examples provided in the Quick Start.
ii!!!iiiiiiiiiii}
_##############,_

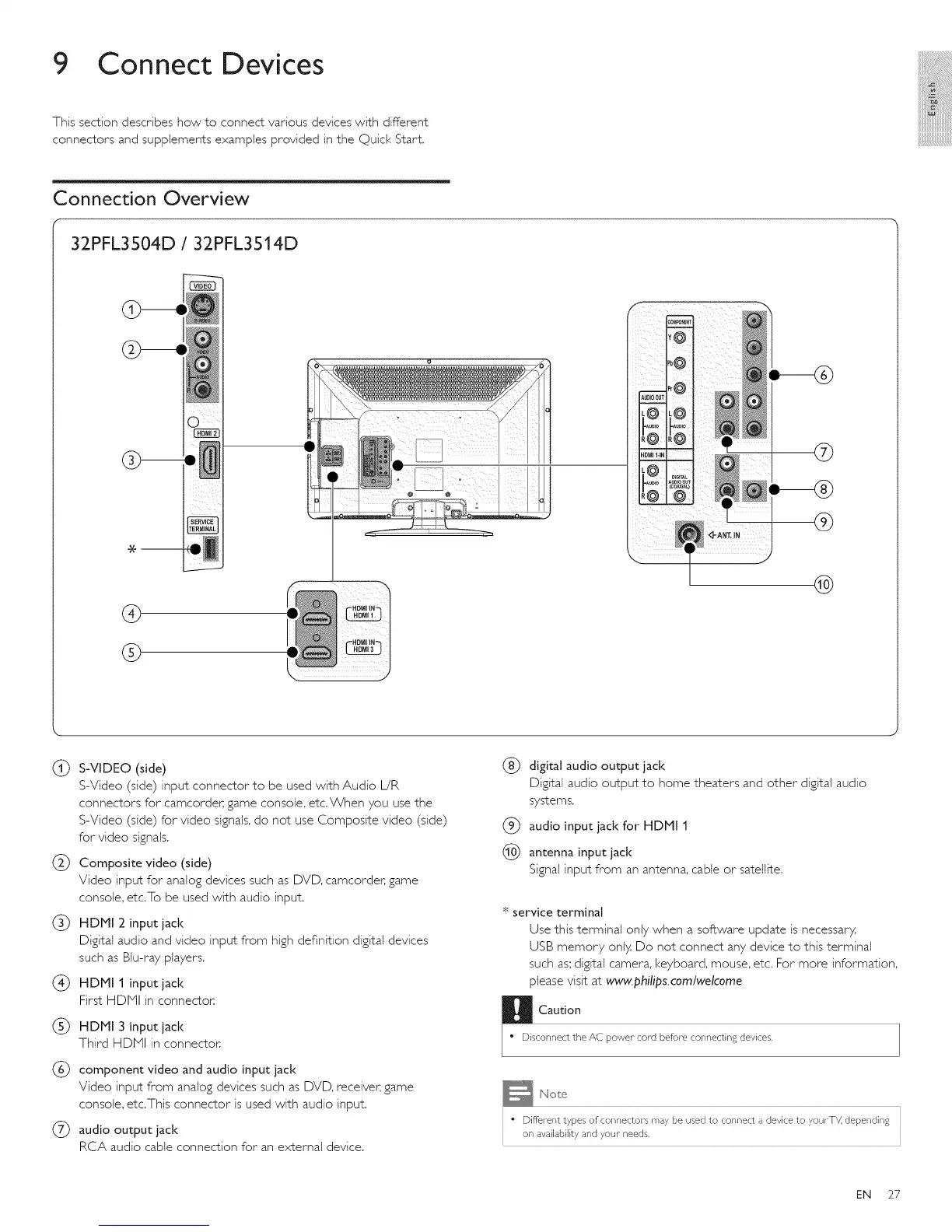

Connection Overview
32PFL3504D / 32PFL3514D
®
®
@
(_) S-VIDEO (side)
S-Video (side) input connector to be used with Audio L/R
connectors for camcordec game console, err.When you use the
S-Video (side) for video signals, do not use Composite video (side)
for video signals.
(_ Composite video (side)
Video input for analog devices such as DVD, camcordec game
console, err.To be used with audio input.
(_ HDMI 2 input jack
Digital audio and video input from high definition digital devices
such as Blu-ray players.
(_ HDbll 1 input jack
First HDNI in connector.
(_ HDbll 3
input jack
Third HDNI in connector.
(_ component video and audio input jack
Video input from analog devices such as DVD, receiven game
console, etc.This connector is used with audio input.
(_ audio output jack
RCA audio cable connection for an external device.
®
®
@
digital audio output jack
Digital audio output to home theaters and other digital audio
systems.
audio input jack for HDbll 1
antenna input jack
Signal input from an antenna, cable or satellite.
$ service terminal
Use this terminal only when a software update is necessary.
USB memory only. Do not connect any device to this terminal
such as; digital camera, keyboard, mouse, etc. For more information,
please visit at www.philips.com/welcome
H Caution
• Disconnect the AC power cord before connecting devices.
• Different types of connectors may be used to connect a device to yourTV, depending
on availability and your- needs,
EN 27
