Philips 5000 - External Machine Part Identification

PHI 5000 01 INTRODUCTION
6/9
1 Control panel
2 Adjustable coee and milk dispensing
spout
3 Lid of water tank
4 Lid of bean hopper
5 Lid of pre-ground coee compartment
6 Main switch
7 Socket for cord
8 Service door
9 Drip tray full indicator
10 Drip tray
11 Drip tray release button
12 Grind setting knob
13 Cover of bean hopper
14 Bean hopper
15 Brew group
16 Coee residues drawer
17 Coee grounds container
18 Drip tray cover
19 Espresso stand tray
20 Espresso stand cover
21 Hot water dispensing spout
22 Milk container
23 Water tank
24 Milk dispensing unit
25 Lid of milk dispensing unit
26 Milk dispensing spout

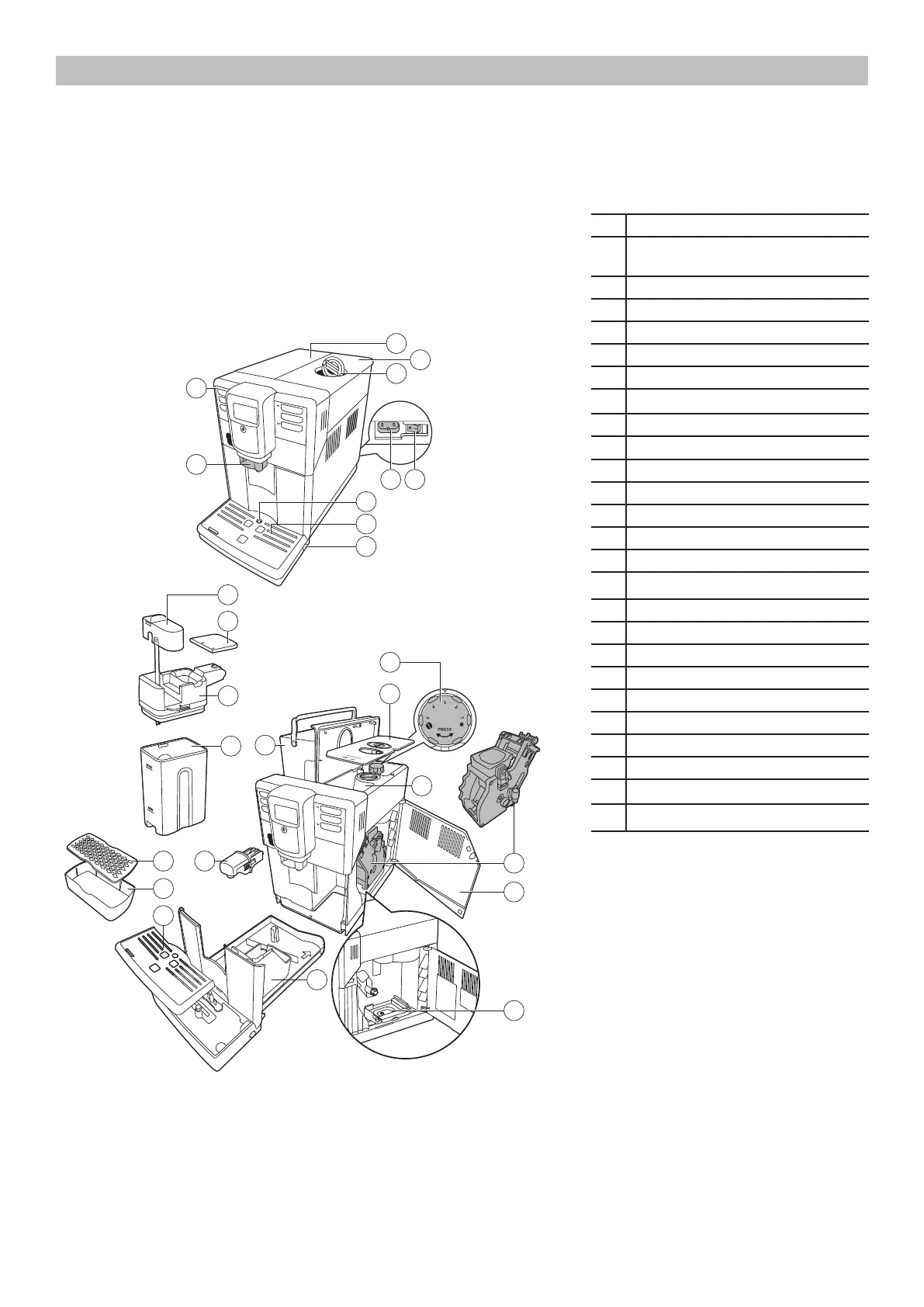

1.8. External machine parts (OTC Models)
1.7. Service POLICY grid as used for coee machine
During the repair is always recommended to use, if possible, single parts rather than the correspondent assem-
bly.
