Philips 5000 - Pin Boiler; Gear Motor

PHI 5000 08 DISASSEMBLY
7/7

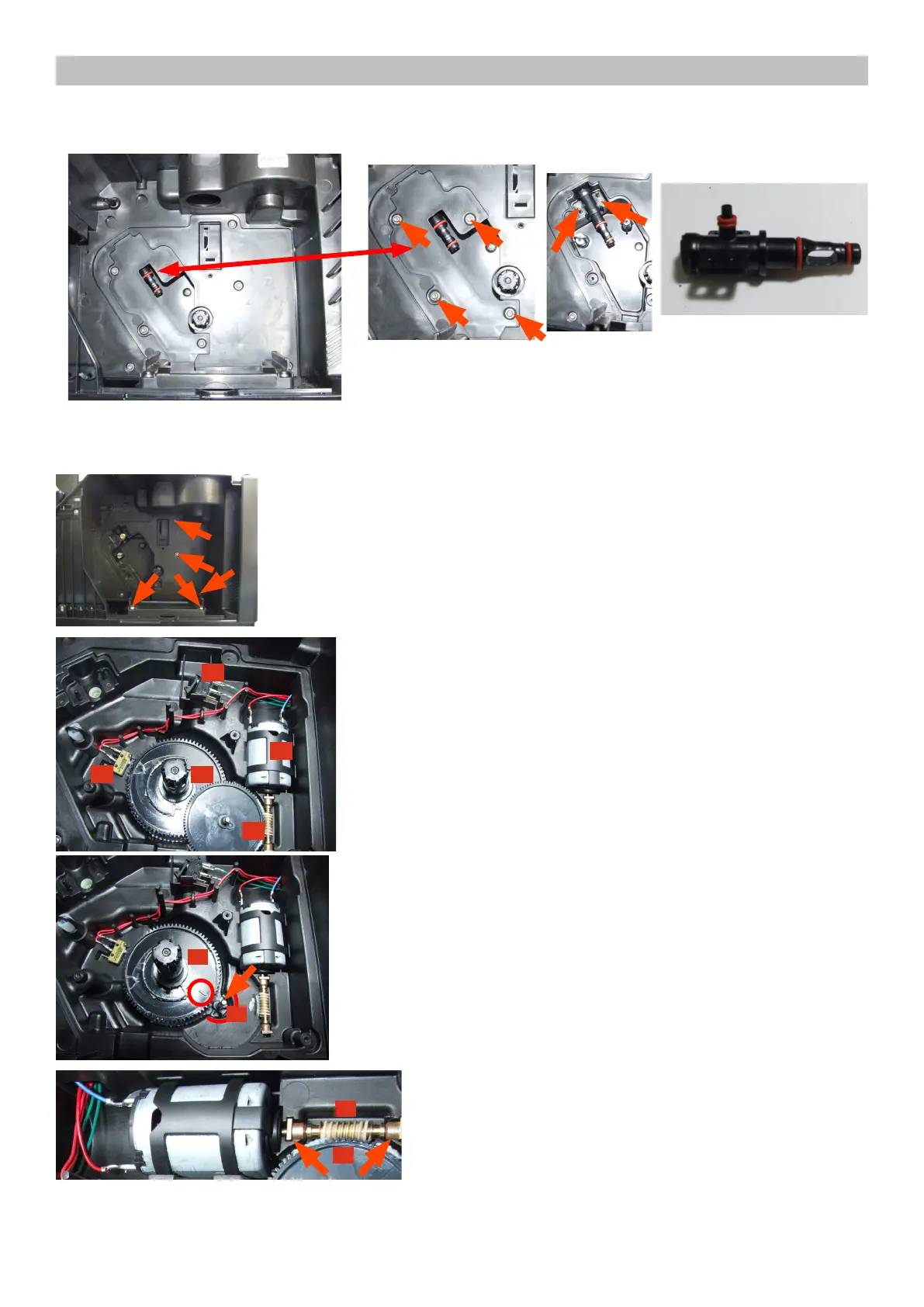

7.8. Pin boiler
Loosen the screws as illustrated and
remove the boiler pin (A).
A
The following are located inside the compartment protected
by the casing:
- Electric motor (A) with gears (B) and (C) for transmission
and timing of the dispenser.
- Brewing unit present microswitch (E).
- Microswitch (D) detecting brewing unit home and work posi-
tions.
- Remove the gear (C) that meshes with the motor transmis-
sion shaft.
- Remove the large gear (B).
- Remove the motor (A), complete with transmission shaft.
Replace the gear (B), making sure that the imprint of
the arrow is aligned with the opening containing the
pin (P).
When replacing the motor and the transmission
shaft, make sure the guide runners (L) are in the
right position.
Grease the shaft thoroughly and evenly.
E
A
B
C
D
B
P
H
L
7.9. Gear motor
Loosen the screws as illustrated and
remove the gear motor cover.
