Philips 5000 - Fitting and Removing Oetiker Clamps

PHI 5000 08 DISASSEMBLY
10/7
Loosen the screws for
remove the cover.
Disconnect the electrical
connections.
Use a suitable pair of pliers to remove
the clamp (as illustrated).
Tighten the clamp as illustrated.
1) Boiler connection.
2) Other connections.

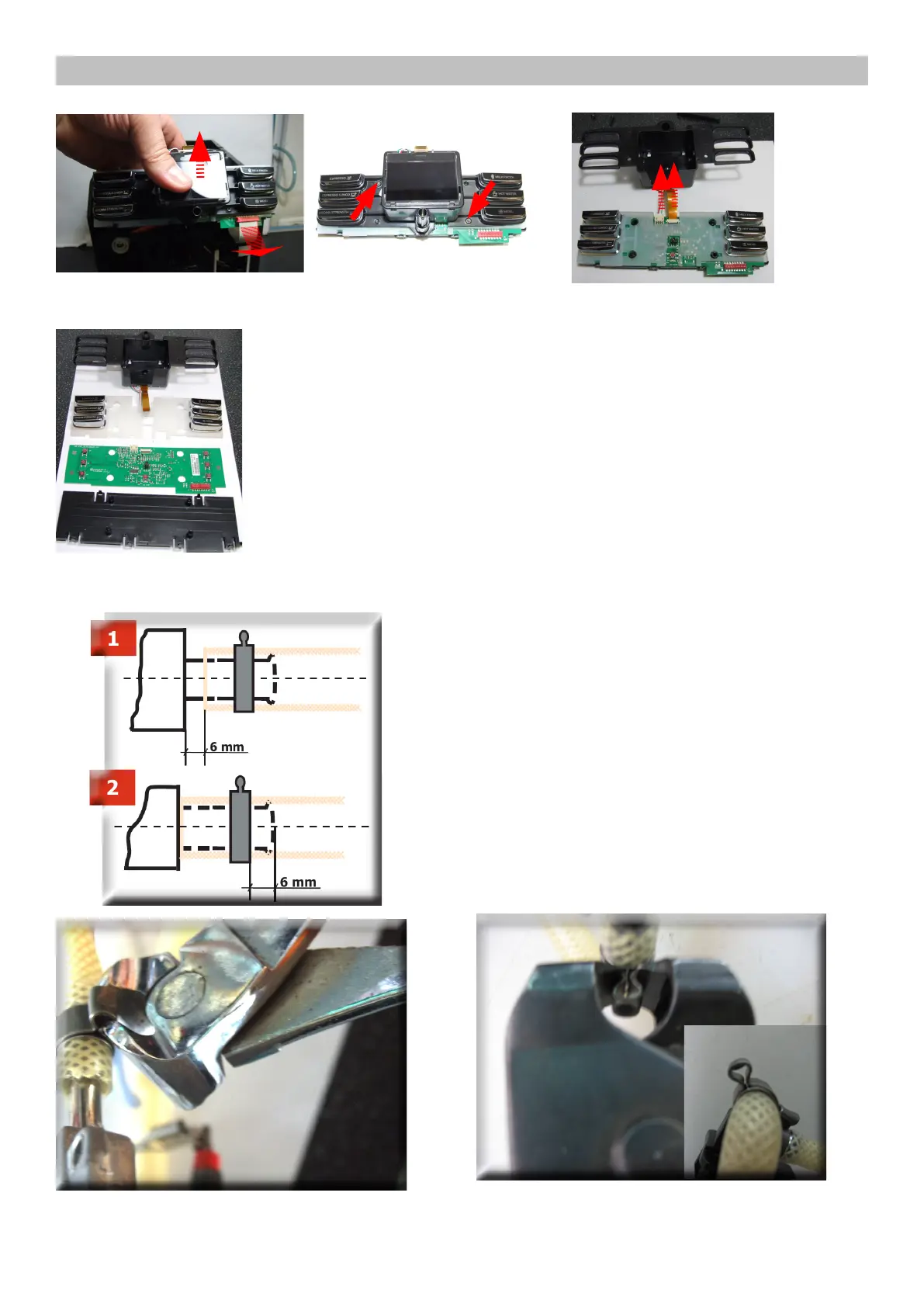

7.16. Fitting and removing Oetiker clamps
1
2
1
2
Remove the support KYB assy.
and disconnect the at cable.
