Philips 5000 - Coffee Grinder Adjustment

PHI 5000 08 DISASSEMBLY
5/7

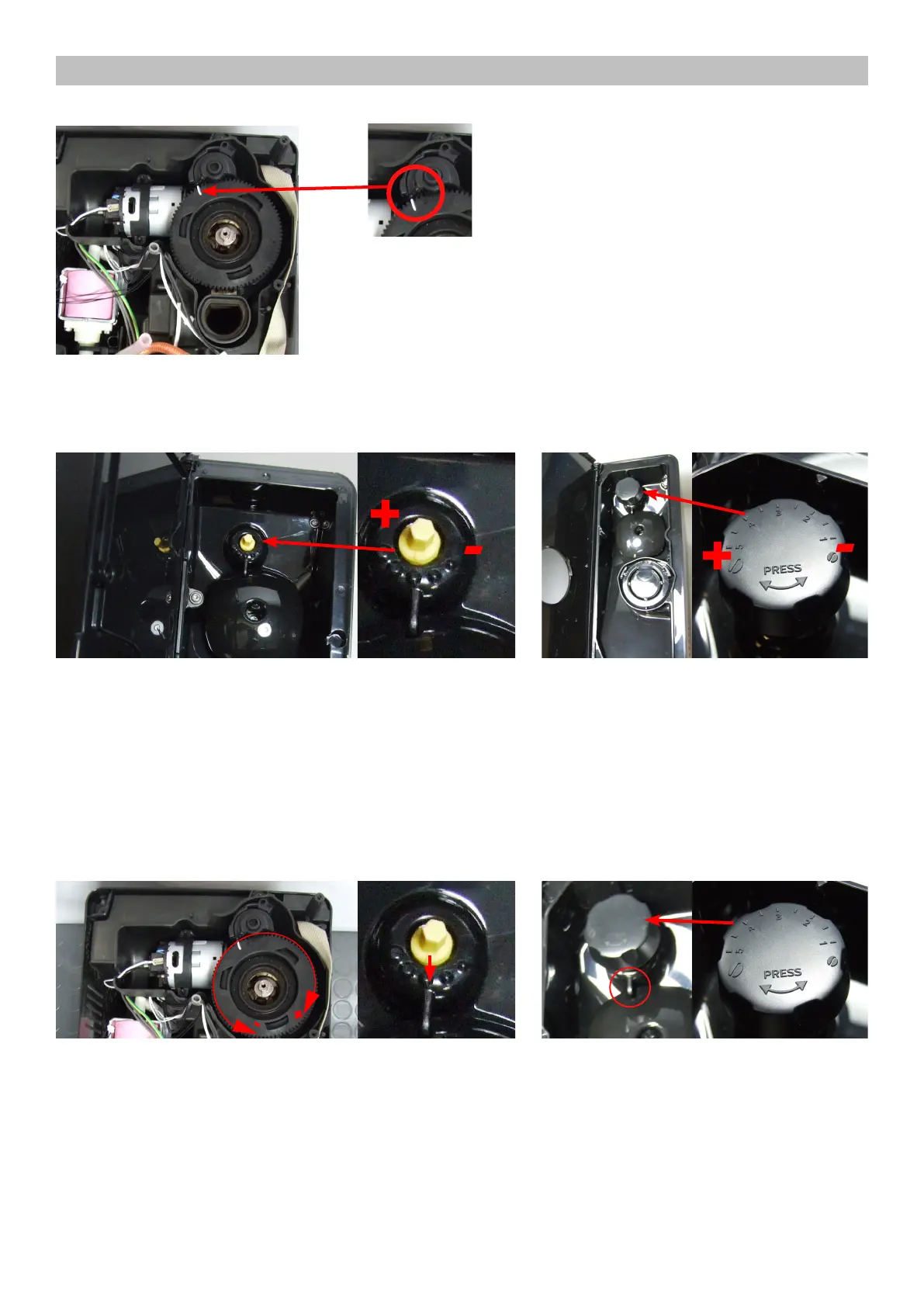

For a standard adjustment, both markings must be
aligned.
7.5. Coee grinder adjustment
For 120V Models the grinding adjustment can be set by the
user (only with the coee grinder in operation) by pressing
and turning (only by one click at a time) the insert inside the
coee bean hopper with the aid of the wrench supplied.
For 230V Models the grinding adjustment
can be set by the user pressing and turning
the grinder adjustment knob
Adjustment by a service center
To adjust grinding further, the engineer can work directly on the coee grinder by pressing and turning the ring nut
(C) shown. (clockwise + to increase the particle size of the coee and anticlockwise - to decrease it).
If there are any remains of coee powder between the two grinding blades it is recommended to tighten by max.
two marks at a time.
Lastly, move the arrow (A) on the adjustment knob to the center of the adjustment dots on the cover (B) for all
120V Models , instead for 230V Models ascertain that the center line of the “PRESS” (D) is in correspondence
of the n (E).
+
-
B
A
+
-
C
-
+
D
E
