Philips 5000 - Carafe Connection and Hot;Steam Water Dispenser (OTC); Central Plate

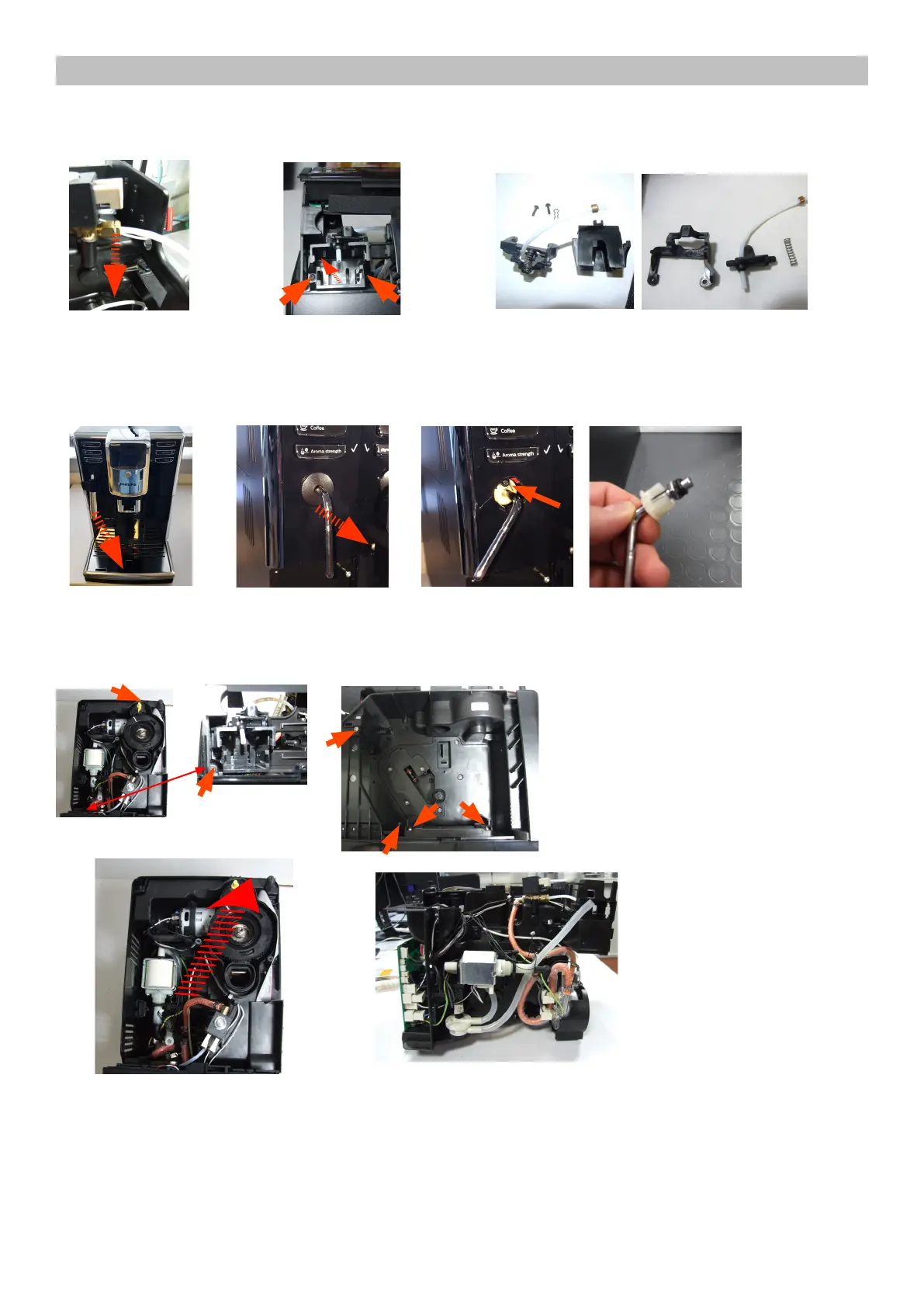

PHI 5000 08 DISASSEMBLY
6/7
Loosen the screws holding
the carafe connection
When reassembling the assembly to be
careful to correctly position the spring.
Slide out the fork
as illustrated
7.6.Carafe connection and hot/steam water dispenser
hot water dispenser
Removes the covers shown
unscrew the screws
shown
7.7. Central plate
unscrew the screws shown
Lift up the center plate
