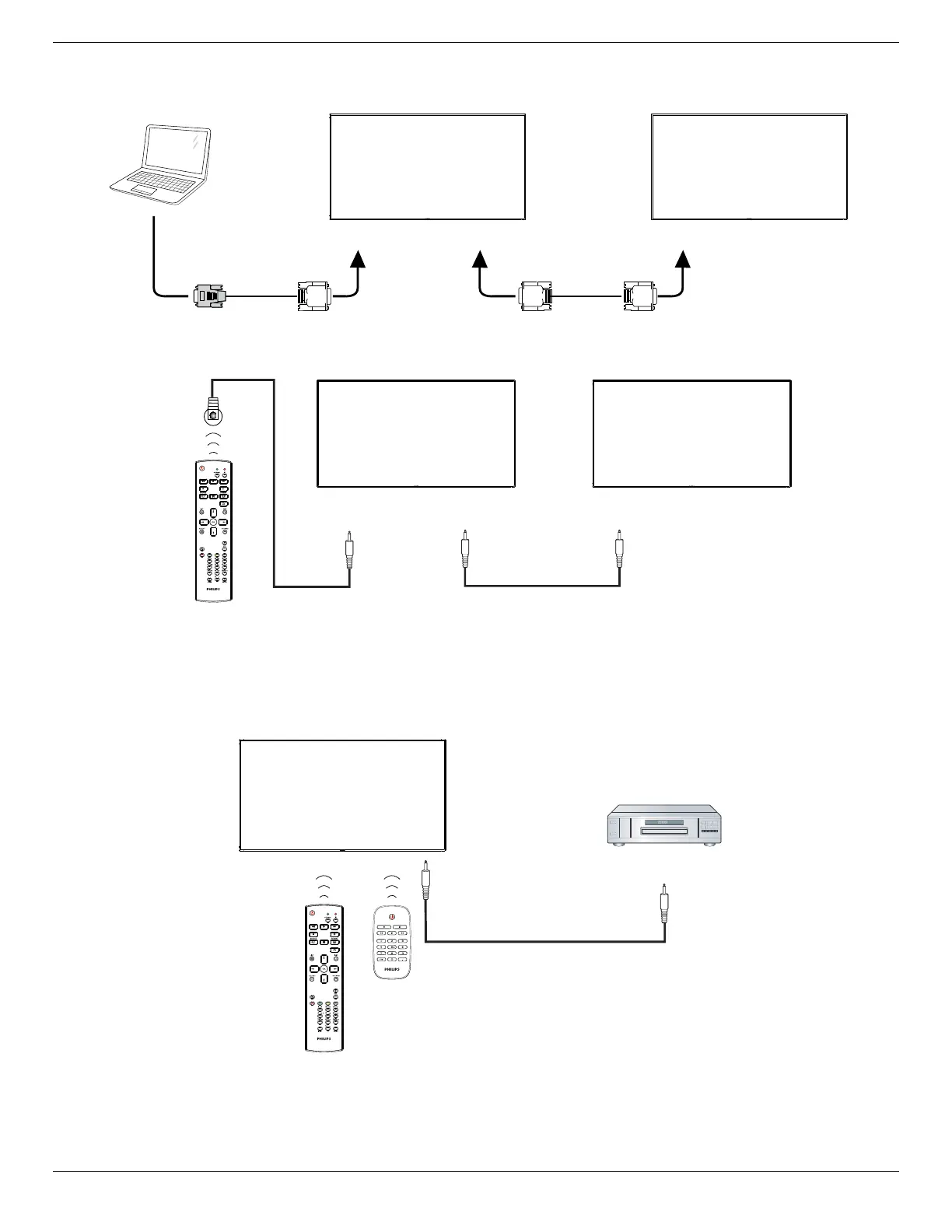

3.4.3. Analog video connection
Connectthe[DVIOUT/DVI-IOUT]connectorofDISPLAY1tothe[DVI-IIN]connectorofDISPLAY2.
PC
DISPLAY 1 DISPLAY 2
[DVI-I IN]
[DVI-I]
[DVI/DVI-I OUT] [DVI-I IN]
3.5. IR connection
DISPLAY 1 DISPLAY 2
[IR IN] [IR OUT]
External
IR Receiver
[IR IN]
NOTE: 
1. Thisdisplay’sremotecontrolsensorwillstopworkingifthe[IR IN]isconnected.
2. IRloopthroughconnectioncansupportupto9displays.
3.6. IR Pass-through Connection
DVD / VCR / VCD
(DVD / VCR / VCD)
Remote Control
[IR OUT]
[IR IN]
