Philips 55PFL4909 - Screw Torque Specification; Disassembly Flowchart; Cabinet Disassembly Instructions

4-1 PL14.26-A_DC

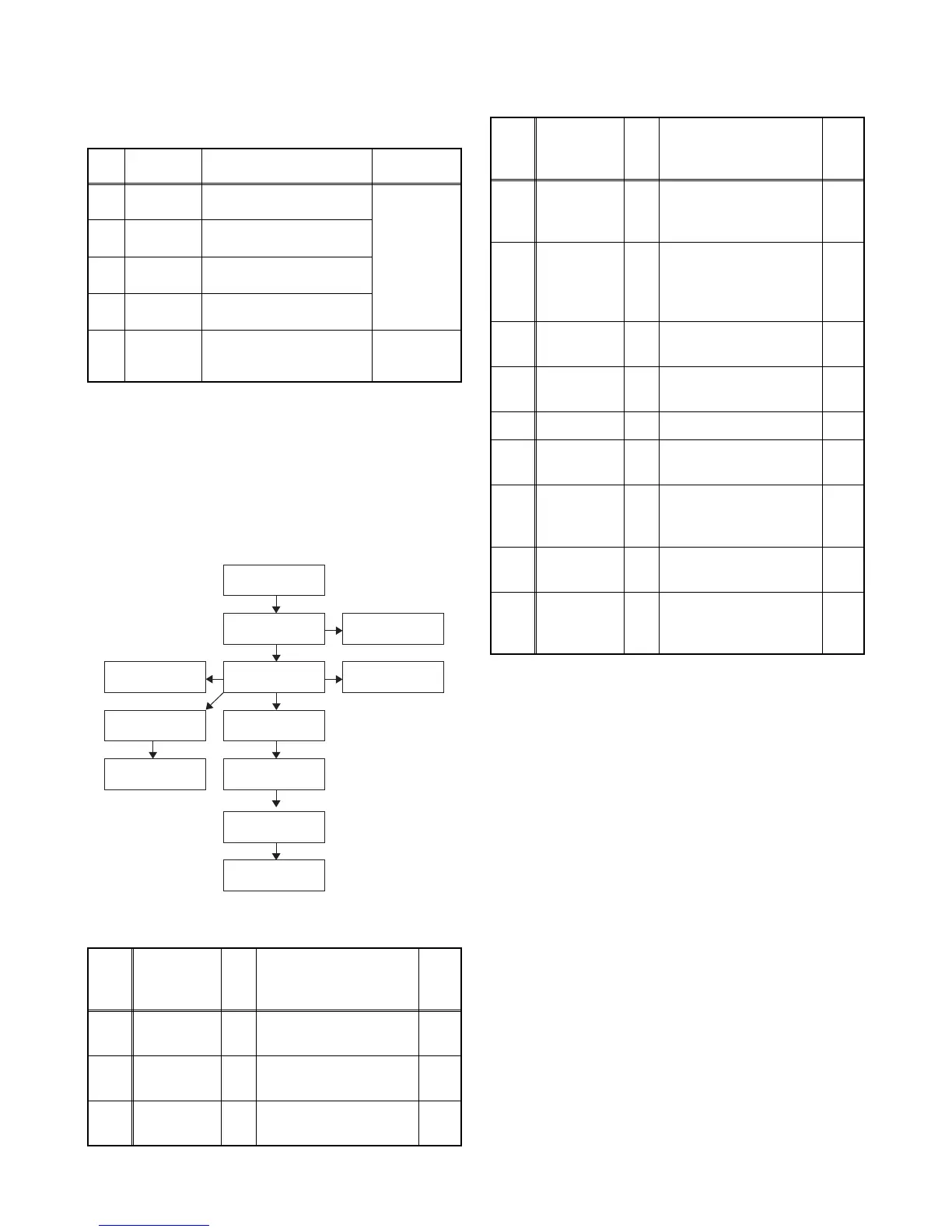

CABINET DISASSEMBLY INSTRUCTIONS
Screw Torque Specification
* For reference
1. Disassembly Flowchart
This flowchart indicates the disassembly steps for the
cabinet parts and the CBA in order to gain access
to items to be serviced. When reassembling, follow
the steps in reverse order. Bend, route and dress
the cables as they were.
2. Disassembly Method
*1: TYPE A
*2: TYPE B
Note:
(1) Order of steps in procedure. When reassembling,
follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.
(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
H = Hex Screw, CN = Connector
e.g. 2(S-2) = two Screws of (S-2),
2(L-2) = two Locking Tabs of (L-2)
(5) Refer to the following “Reference Notes in the
Table.”
Ref.
No.
Part
Number
Part Name
Tightening
Torque
L10 GCHP3120
SCREW F-PAN BLACK_NI
+P-TITE M3X12.0
5.2±0.9lb·in
L23 GBJS3060
SCREW BIND 3CHROM
+S-TITE M3X6.0
L28 GCHS3080
SCREW F-PAN BLACK_NI
+S-TITE M3X8.0
L42 FPH34120
SEMS-SW PAN BLACK_NI
+ M4X12.0
SSK1 1ESA34506
STAND SCREW KIT
(SEMS-SW PAN BLACK_NI
+ M4X12.0)
(approx.
8.7±0.9lb·in)
*
Step/
Loc.
No.
Part
Fig.
No.
Removal Note
[1]
Stand Base
Assembly
D1
8(S-1), Stand Hinge
Assembly
---
[2]
Rear
Cabinet R
D1
13(S-2), 6(S-3),
2(S-4), 8(L-1)
---
[3]
Rear
Cabinet L
D1
9(S-5), 4(S-6),
2(S-7), 8(L-2)
---
[5] Digital Main
CBA Unit
[4] Power Supply
CBA
[1] Stand Base
Assembly
[3] Rear
Cabinet L
[6] Stand Bracket
[8] Speaker
[11] IR Sensor
CBA Unit
[12] LCD Panel
Assembly
[10] Function
CBA Unit
[7] T-CON Holder
[9] Speaker
Holder
[2] Rear
Cabinet R
[4]
Power
Supply
CBA
D2
D5
5(S-8), CN501,
CN601, CN1101,
CN1201, CN1401
---
[5]
Digital Main
CBA Unit
D2
D5
4(S-9), CN3013
*2
,
CN3101
*2
, CN3105
*1
,
CN3801, CN3906
*1
,
Jack Holder
---
[6]
Stand
Bracket
D3 --------------- ---
[7]
T- C O N
Holder
D3 (S-10) ---
[8] Speaker D3 ---------------- ---
[9]
Speaker
Holder
D3 2(S-11) ---
[10]
Function
CBA Unit
D3
D5
CN4051, Function
Knob, Knob Frame,
Hook
2
[11]
IR Sensor
CBA Unit
D3
D5
Sensor Shield, Hook 2
[12]
LCD Panel
Assembly
D4
Decoration Plate,LED
Lens, Leading Edge
Cover, Hook
1

(1)

(2)

(3)

(4)

(5)
Step/
Loc.
No.
Part
Fig.
No.
Removal Note
