Philips 55PFL4909 - Exploded Views

12-1 PL14.26-A_CEX

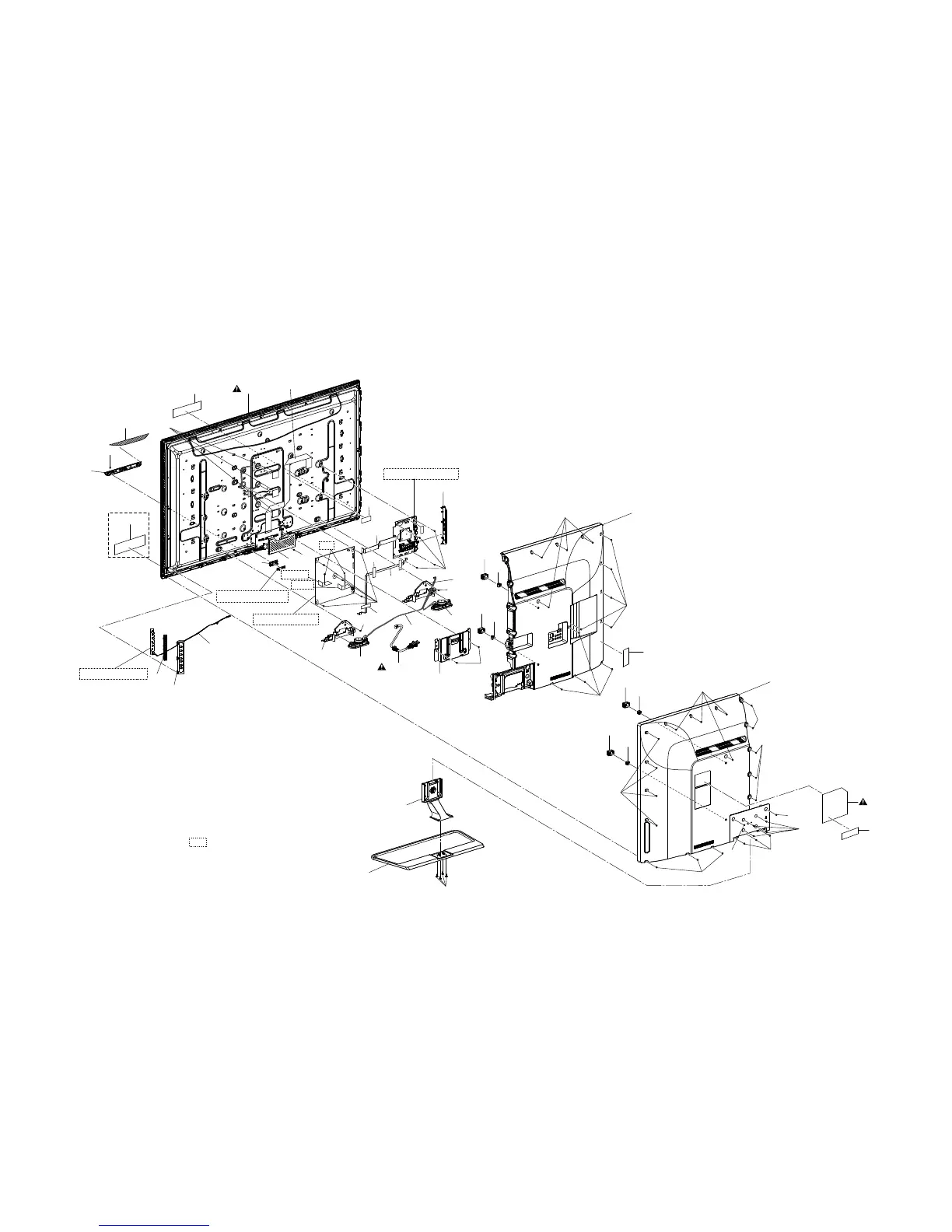

EXPLODED VIEWS
[TYPE A]
A15
See Electrical Parts List
for parts with this mark.
Digital Main CBA Unit
Power Supply CBA
Function CBA Unit
LCD1
A13
B7
B-1704
A17
AC601
B10
SP3802
L10
A26
L23
L23
CL3601
L23
A3-1
L28
L28
L42
L42
L42
SNA1
L10
IR Sensor CBA Unit
B-601
L35
B23
B31
B23
A16
CL3013
A7
A8
SSK1
SSK1
SBA1
A5
A9
A20
L28
CL4001
SP3801
CL3801
B18
L28
B17
A26
B12
A3-2
L23
L10
L28
L28
S7
S7
L23
B18
B17
B18
B17
B18
B17
CL3101
B23
55PFL4909/F7
