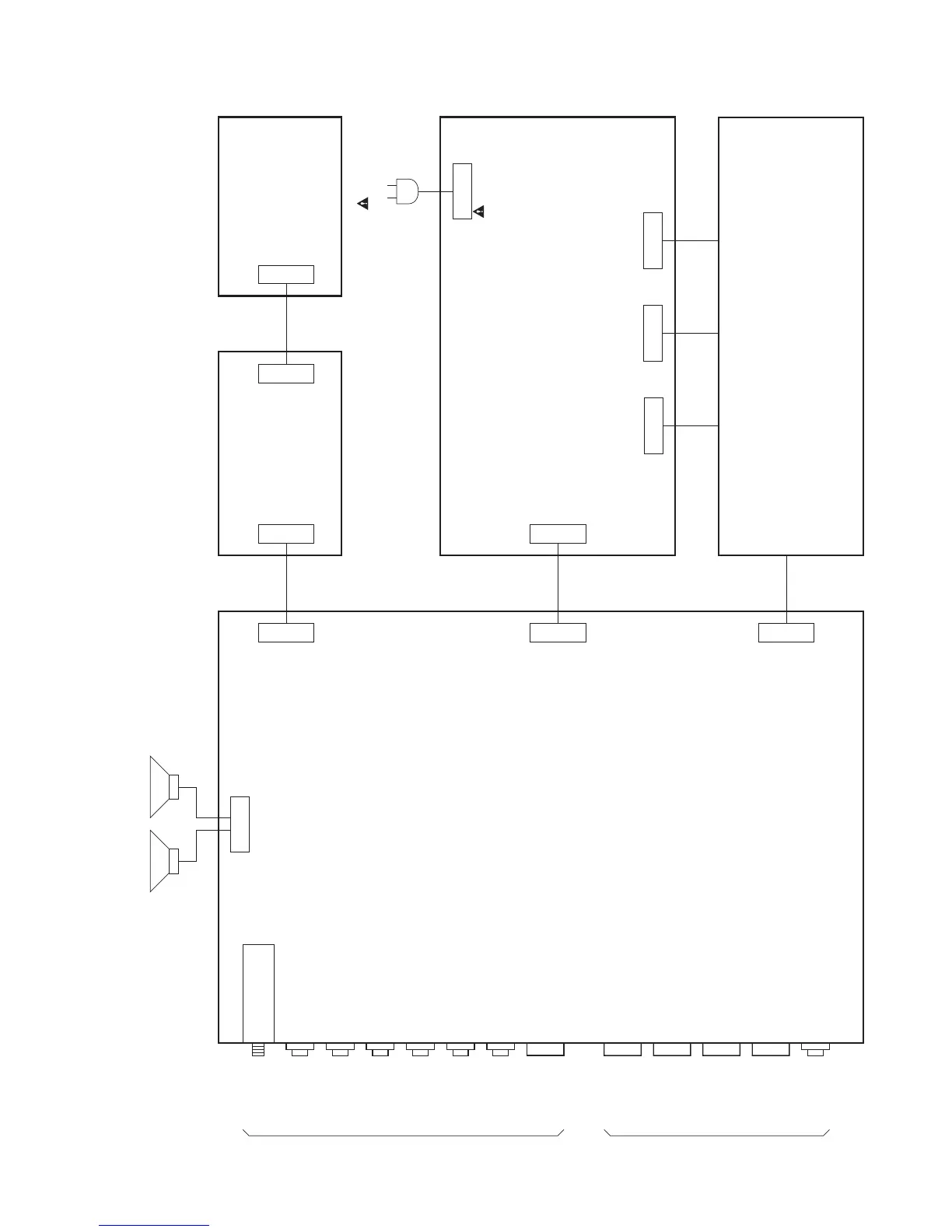

Philips 55PFL4909 - [Type B]

[TYPE B]
PL14.26BWI
11-2
23
1
CN501
1
23
CN3602
1
51
CN3013
9 1
CN4052
1 9
CN3101
BW
CN601
POWER SUPPLY CBA
IR SENSOR CBA UNIT
LCD PANEL ASSEMBLY
AC CORD
CL3601
CL3013 CL3101
1 2
CN4001
1 2
CN4051
FUNCTION CBA UNIT
CL4001
DIGITAL MAIN CBA UNIT
14
CN3801
SP3801 SPEAKER L-CH
SP3802 SPEAKER R-CH
CL3801
TUNER UNIT
COMPONENT -Y/VIDEO-IN COMPONENT -Pb-IN COMPONENT -Pr-IN AUDIO(L)-IN AUDIO(R)-IN
REAR
DIGITAL AUDIO-OUT (COAXIAL)
HDMI- CONNECTOR-1 HDMI- CONNECTOR-2 HDMI- CONNECTOR-3
PC-RGB-IN USB JACK
SIDE
HEADPHONE JACK
12
CN1101
14
CN1201
12
CN1401
