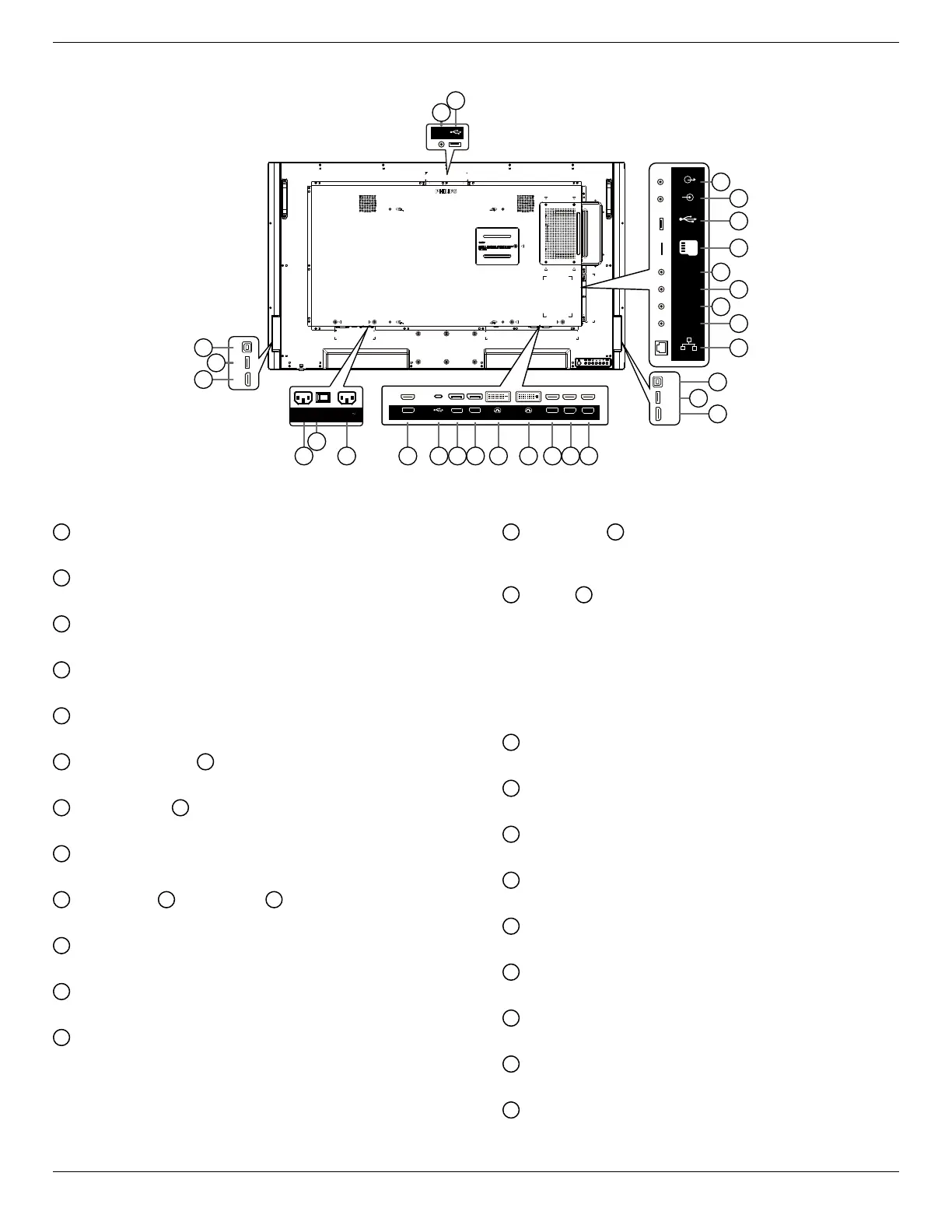

2.2. Input/Output Terminals
USB 3.0
AUDIO LINE
OUT
100-240V
50/60Hz 2.5A
USB USB-BHDMI
IN-4
USBUSB-B
HDMI
IN-3
16
13
15
14
27
29
28
17
19
21
22
23
18
20
24
25
26
1 3 4 5 6 7 8 9 10 11 12
2
HDMI1 IN HDMI2 IN
HDMI OUTHDMI LOOP
DP IN
USB 3.0 C
DP OUT
DVI-I IN
DVI-D OUT
AUDIO LINE OUT
AUDIO LINE IN
MICRO SD
RJ45
RS232
OUT
RS232
IN
IR-IN
IR-OUT
USB 3.0
1
AC IN
AC power input from the wall outlet.
2
MAIN POWER SWITCH
Switch the main power between On and O.
3
AC OUT
AC power supply to the AC IN jack of a media player.
4
HDMI LOOP
Screen out to next monitor by HDMI.
5
USB 3.0 C
Support display and touch function.
6
DisplayPort IN /
7
DisplayPort OUT
DisplayPort video input/output.
8
DVI-D OUT /
9
DVI-I IN
DVI video output/input.
10
HDMI OUT
Connect to a sink device via an HDMI cable.
11
HDMI1 IN /
12
HDMI2 IN /
13
HDMI4 IN
Connect to a source device via an HDMI cable.
14
USB
Connect to external PC to support touch function.
15
USB-B
Touch connector to PC.
16
RJ-45
The LAN control function is used for sending the remote
control signal from the control center in order to install
the optional OPS module.
17
RS232 IN /
18
RS232 OUT
Android RS232 network input/output is reserved for
customized protocol usage from System Integrator.
19
IR IN /
20
IR OUT
IR signal input/output for the loop-through function.
NOTES:
• The remote control sensor of this display will stop
working if the jack [IR IN] is connected.
• To remotely control your A/V device via this display,
refer to page 16 for IR Pass Through connection.
21
MICRO SD
Insert a Micro SD card.
22
Android USB 3.0 In
Android USB3.0 Input.
23
AUDIO IN
Audio input for VGA source (3.5mm stereo phone).
24
AUDIO OUT
Audio output for external AV device.
25
USB 3.0
Connect to a USB 3.0 storage device.
26
AUDIO OUT
Audio output for external AV device.
27
USB-B
Connect to external PC to support touch function.
28
USB
Connect to a USB storage device.
29
HDMI3 IN
Connect to a source device via an HDMI cable.
