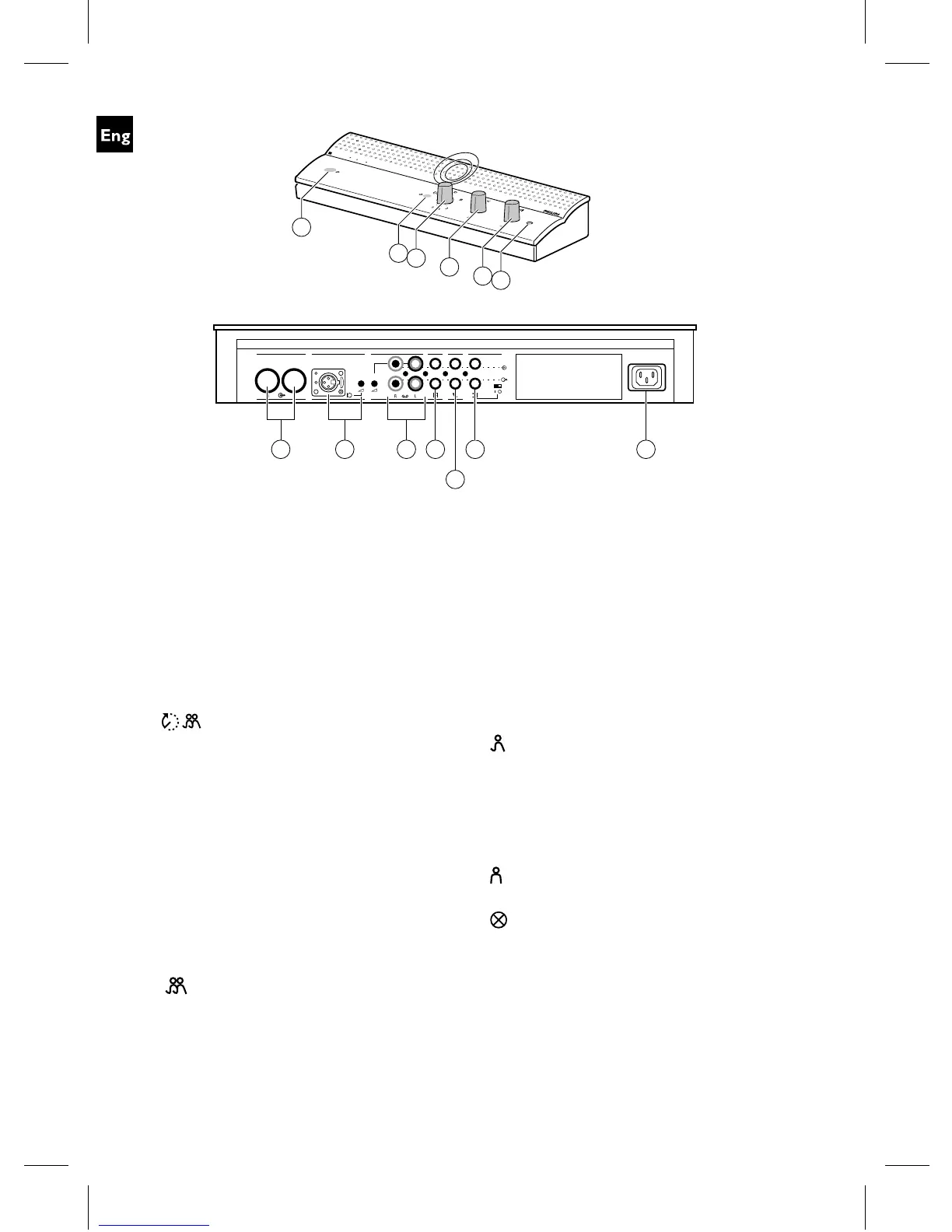

Philips CCS 800 User Manual

3 CONTROL AND
POWER SUPPLY
UNIT (CPSU)
1 Mains On/Off switch.
2 Power On LED indicator (green).
3 Microphone-mode switch.
Open mode with auto
switch-off.
To select the maximum number
of delegate microphones to be
activated simultaneously
(1, 2, 3 or 4). The microphone
automatically switches off if the
speaker does not speak for
30 seconds.
The microphone can manually
be switched off by pushing the
button on the delegate unit.
Open mode. To select the
maximum number of delegate
microphones to be activated
simultaneously (1, 2, 3 or 4).
The microphone must be
switched on or off manually by
pushing the button on the
delegate unit.
Override mode. Only one delegate
microphone can be activated.
If a new delegate presses his
microphone button, the micro-
phone unit of the current
speaker will be switched off.
Chairman only mode. Only the
chairman units can be activated.
Test mode. For proper instal-
lation check. All the light-rings
and LED’s of the connected
units will lit, if properly
connected.
CCS
800
0
1
2
3
4
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
9
10
4
3
2
1
1
2
3
4
GainGain
90-260 V~
Trunk in/out Recorder Line Telephone InsertionMicrophone
In
Out
7 8 9 10 12
11
13
1
2
3
4
5
6
Fig. 1
10
