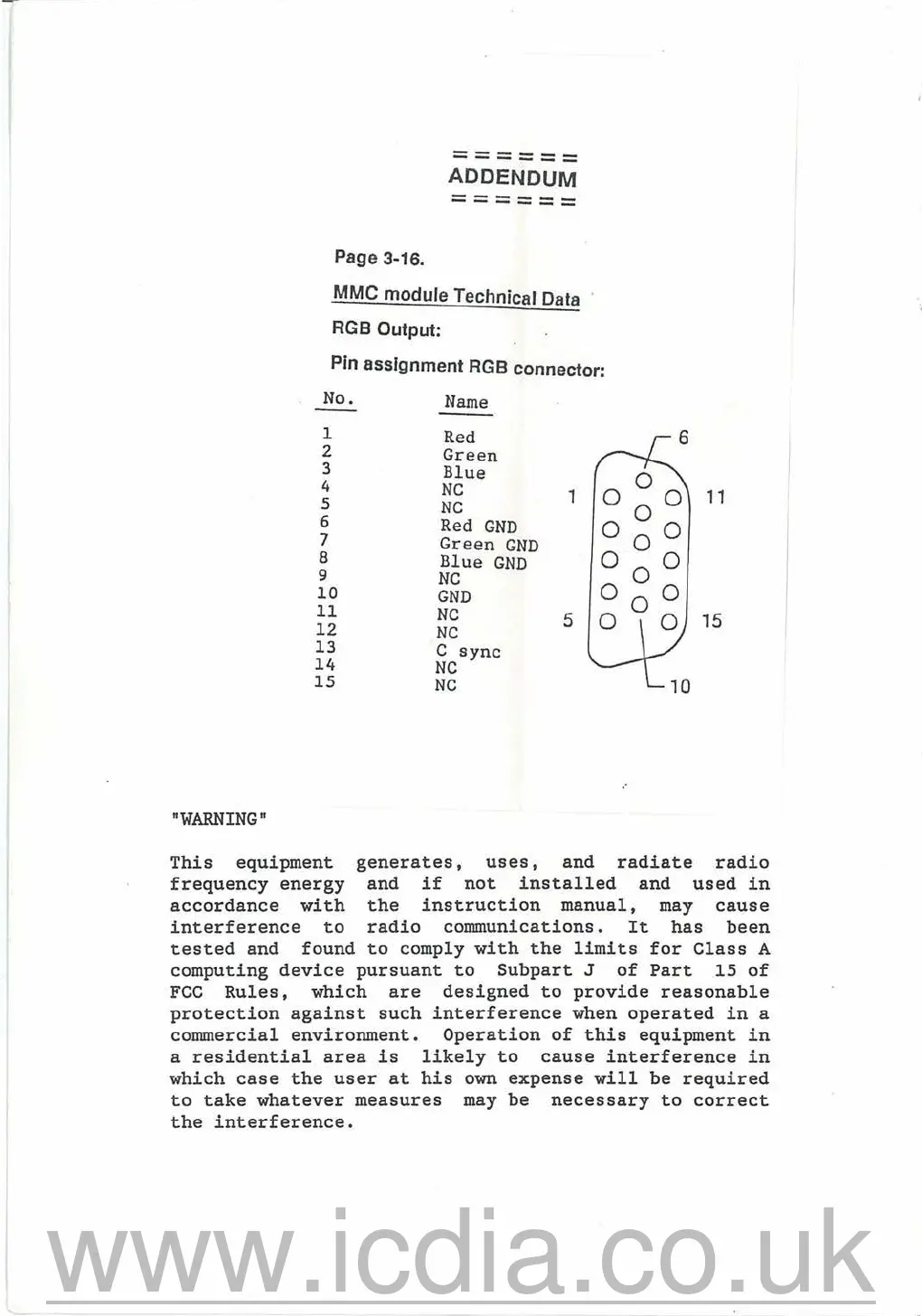

MMC module Technical Data
RGB Output:
Pin assignment RGB connector:
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Name
Red
Green
Blue
NC
NC
Red GND
Green GND
Blue GND
NC
GND
NC
NC
C sync
NC
NC
1
5
0
000
000
000
000
0 0
11
15
This equipment generates, uses, and radiate radio
frequency energy and if not installed and used in
accordance with the instruction manual, may cause
interference to radio communications. It has been
tested and found to comply with the limits for Class A
computing device pursuant to Subpart J of Part 15 of
FCC Rules, which are designed to provide reasonable
protection against such interference when operated in a
commercial environment. Operation of this equipment in
a residential area is likely to cause interference in
which case the user at his own expense will be required
to take whatever measures may be necessary to correct
the interference.
