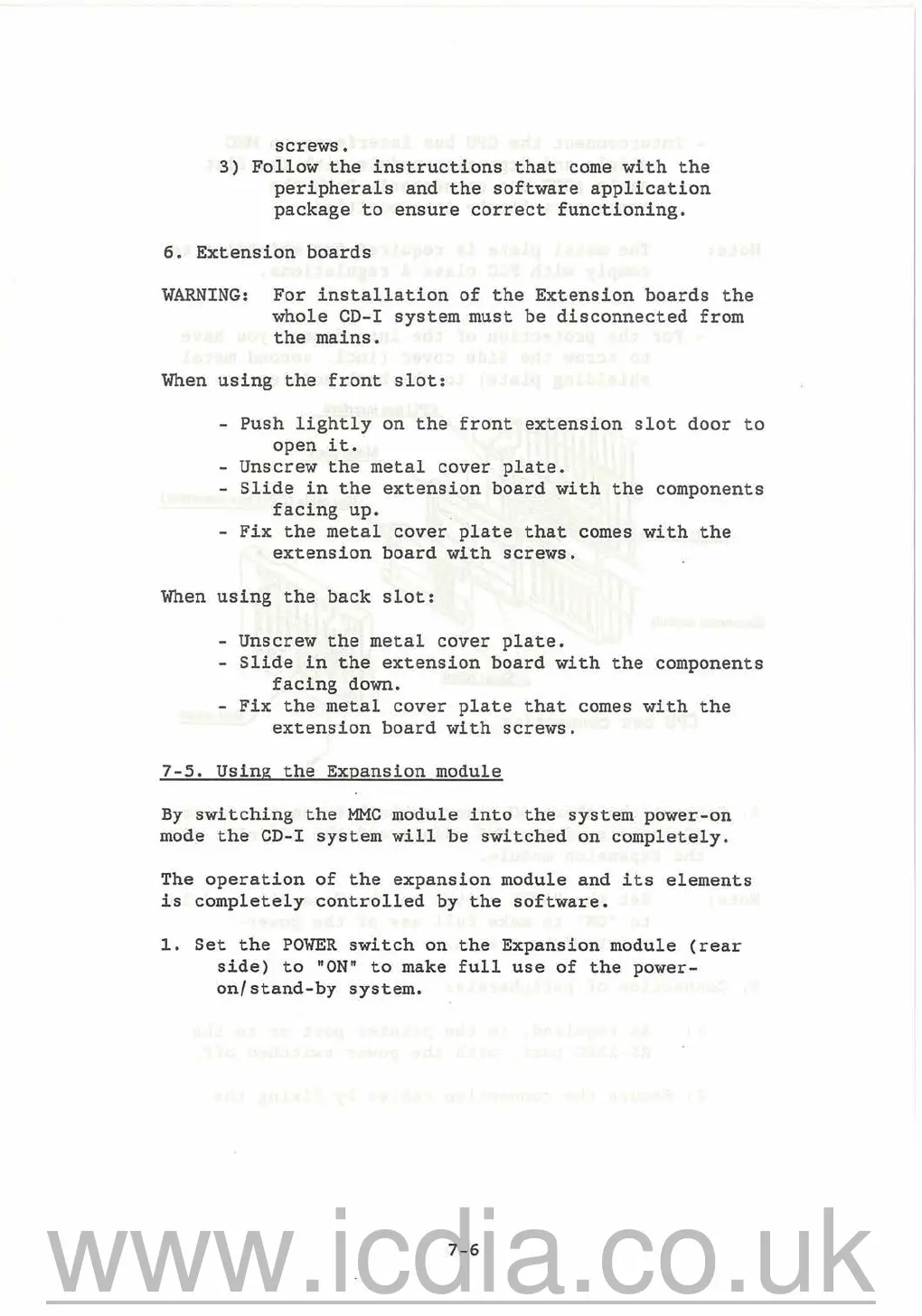

screws.
3) Follow the instructions that come with the
peripherals and the software application
package to ensure correct functioning.
6. Extension boards
WARNING: For installation of the Extension boards the
whole CD-I system must be disconnected from
the mains.
When using the front slot:
- Push lightly on the front extension slot door to
open it.
- Unscrew the metal cover plate.
- Slide in the extension board with the components
facing up.
- Fix the metal cover plate that comes with the
extension board with screws.
When using the back slot:
- Unscrew the metal cover plate.
- Slide in the extension board with the components
facing down.
-
Fix the metal cover plate that comes with the
extension board with screws.
7-5. Using the Expansion module
By switching the MMC module into the system power-on
mode the CD-I system will be switched on completely.
The operation of the expansion module and its elements
is completely controlled by the software.
1. Set the POWER switch on the Expansion module (rear
side) to "ON" to make full use of the power-
on/stand-by system.
7-6
