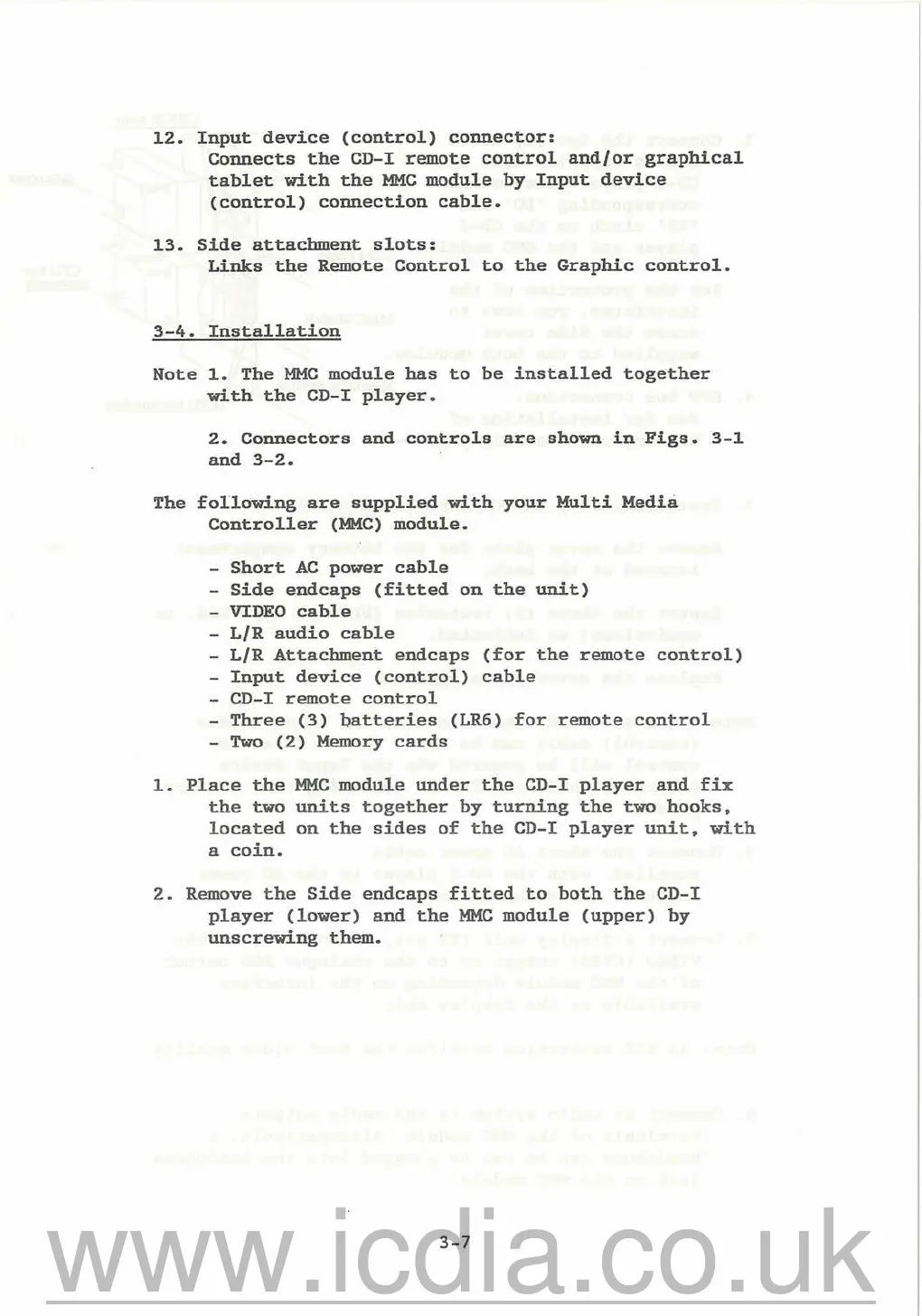

12. Input device (control) connector:
Connects the CD-I remote control and/or graphical
tablet with the MMC module by Input device
(control) connection cable.
13. Side attachment slots:
Links the Remote Control to the Graphic control.
3-4. Installation
Note 1. The MMC module has to be installed together
with the CD-I player.
2. Connectors and controls are shown in Figs. 3-1
and 3-2.
The following are supplied with your Multi Media
Controller (MMC) module.
- Short AC power cable
- Side endcaps (fitted on the unit)
- VIDEO cable
- L/R audio cable
- L/R Attachment endcaps (for the remote control)
- Input device (control) cable
- CD-I remote control
- Three (3) batteries (LR6) for remote control
- Two (2) Memory cards
1. Place the MMC module under the CD-I player and fix
the two units together by turning the two hooks,
located on the sides of the CD-I player unit, with
a coin.
2. Remove the Side endcaps fitted to both the CD-I
player (lower) and the MMC module (upper) by
unscrewing them.
3-7
