Philips CD-I - Expansion Module Installation

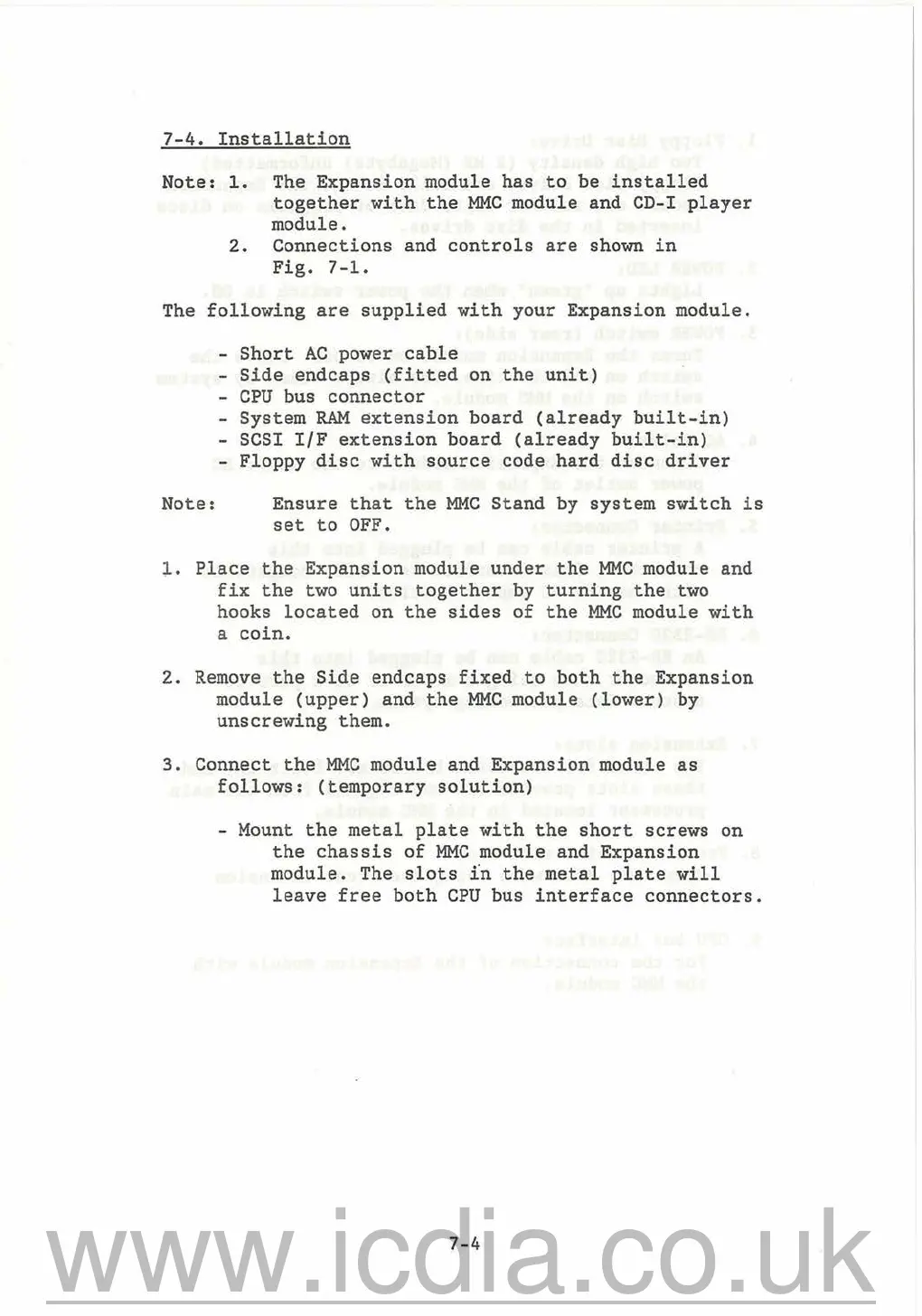

7-4. Installation
Note: 1. The Expansion module has to be installed
together with the MMC module and CD-I player
module.
2. Connections and controls are shown in
Fig. 7-1.
The following are supplied with your Expansion module.
Note:
- Short AC power cable
- Side endcaps (fitted on the unit)
- CPU bus connector
- System RAM axtension board (already built-in)
- SCSI I/F extension board (already built-in)
- Floppy disc with source code hard disc driver
Ensure that the MMC Stand by system switch is
set to OFF.
1. Place the Expansion module under the MMC module and
fix the two units together by turning the two
hooks located on the sides of the MMC module with
a coin.
2. Remove the Side endcaps fixed to both the Expansion
module (upper) and the MMC module (lower) by
unscrewing them.
3. Connect the MMC module and Expansion module as
follows: (temporary solution)
- Mount the metal plate with the short screws on
the chassis of MMC module and Expansion
module. The slots in the metal plate will
leave free both CPU bus interface connectors.
7-4
