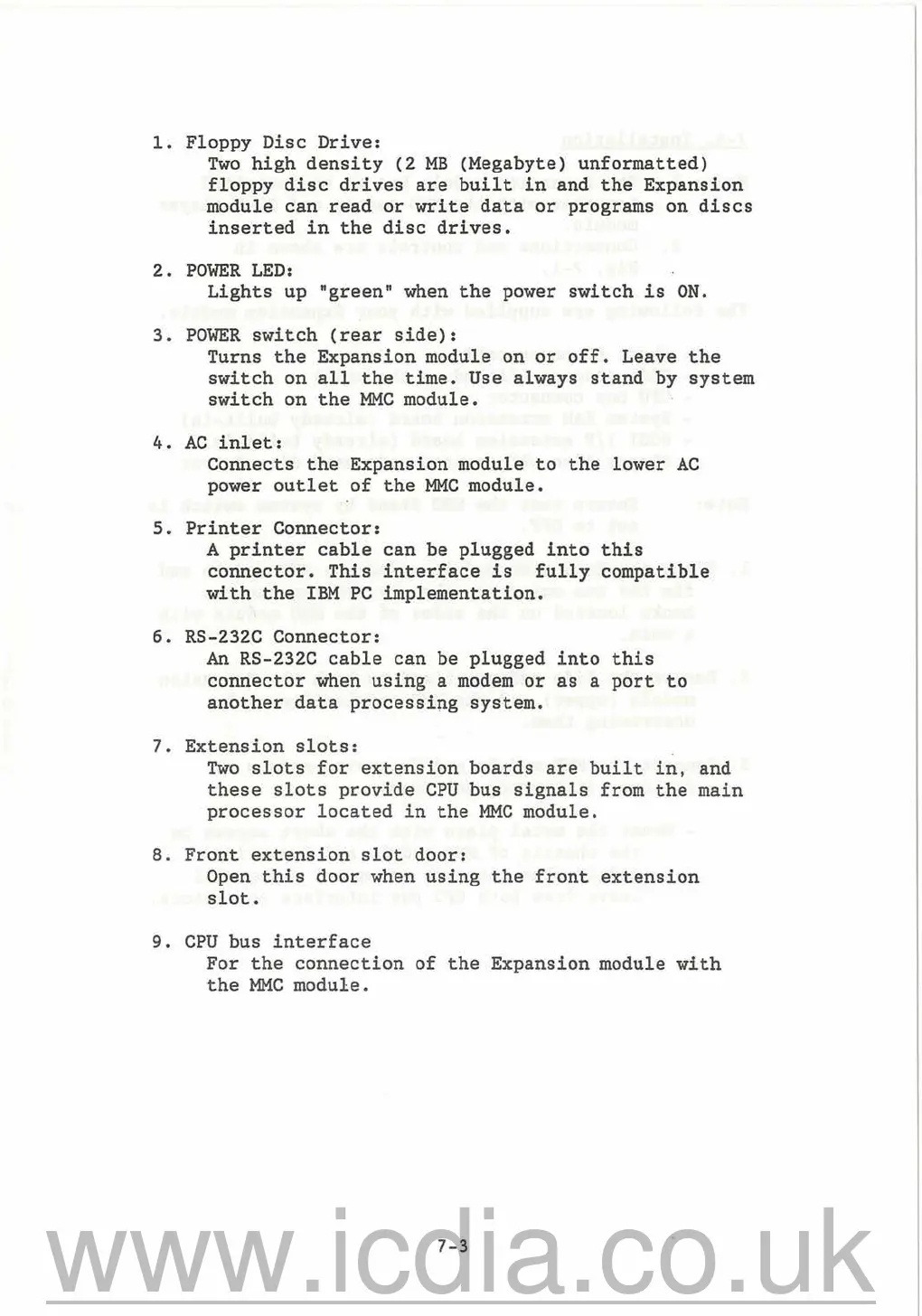

1. Floppy Disc Drive:
Two high density (2 MB (Megabyte) unformatted)
floppy disc drives are built in and the Expansion
module can read or write data or programs on discs
inserted in the disc drives.
2. POWER LED:
Lights up "green" when the power switch is ON.
3. POWER switch (rear side):
Turns the Expansion module on or off. Leave the
switch on all the time. Use always stand by system
switch on the MMC module.
4. AC inlet:
Connects the Expansion module to the lower AC
power outlet of the MMC module.
5. Printer Connector:
A printer cable can be plugged into this
connector. This interface is fully compatible
with the IBM PC implementation.
6. RS-232C Connector:
An RS-232C cable can be plugged into this
connector when using a modem or as a port to
another data processing system.
7. Extension slots:
Two slots for extension boards are built in, and
these slots provide CPU bus signals from the main
processor located in the MMC module.
8. Front extension slot door:
Open this door when using the front extension
slot.
9. CPU bus interface
For the connection of the Expansion module with
the MMC module.
