Note:
- Interconnect the CPU bus interfaces on MMC
module and Expansion module with the flat
cable (CPU bus connector). Push the
connectqrs firmly into position.
The metal plate is required for shielding to
comply with FCC class A regulations.
- For the protection of the interfaces, you have
to screw the Side cover (incl. second metal
shielding plate) to the both modules.

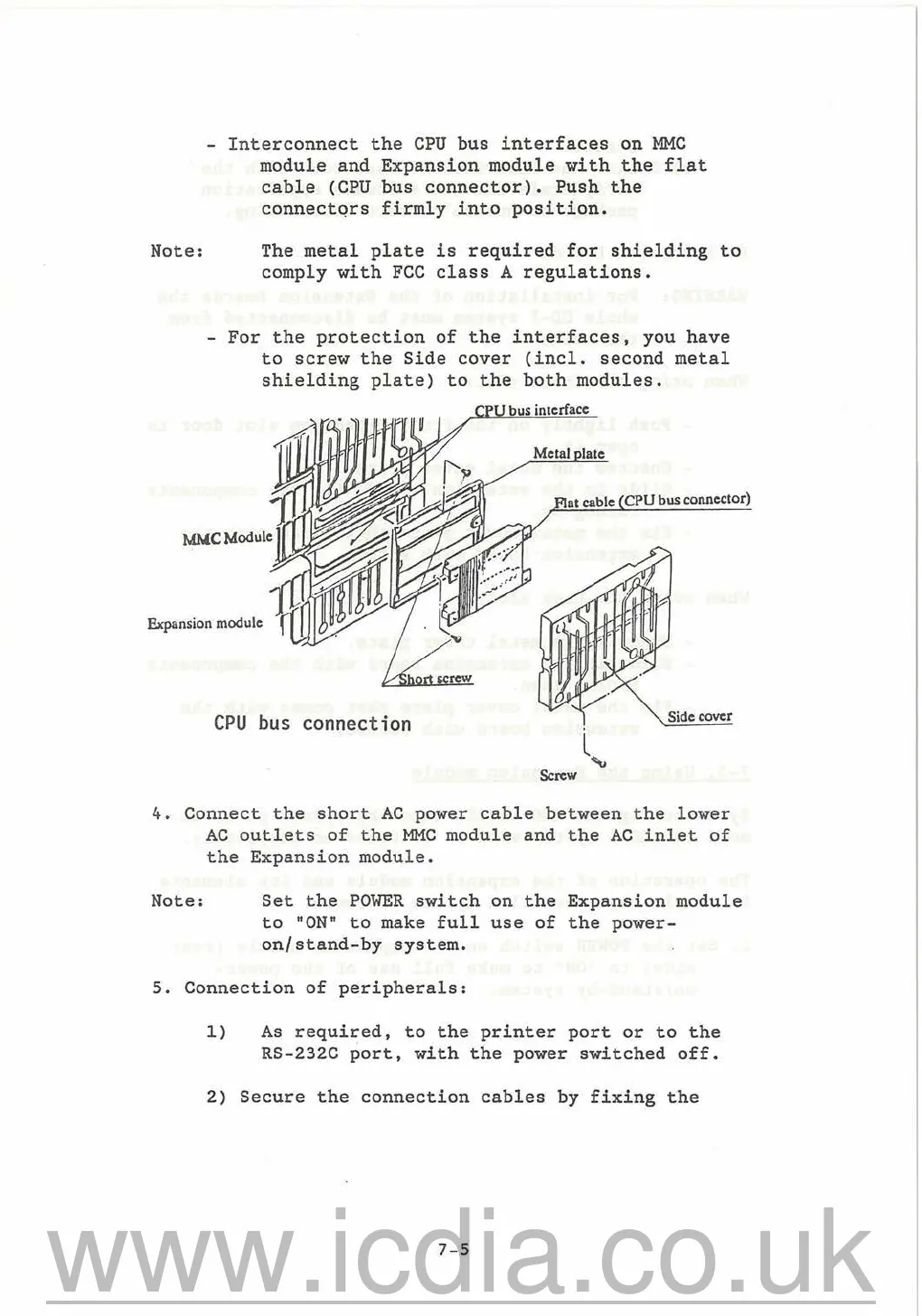

Metal late
Flat cable CPU bus connector)
MMCModule
Expansion module
CPU bus connection
Side cover
Screw
4. Connect the short AC power cable between the lower
AC outlets of the MMC module and the AC inlet of
the Expansion module.
Note: Set the POWER switch on the Expansion module
to "ON" to make full use of the power-
on/stand-by system.
5. Connection of peripherals:
1) As required, to the printer port or to the
RS-232C port, with the power switched off.
2) Secure the connection cables by fixing the
7-5
