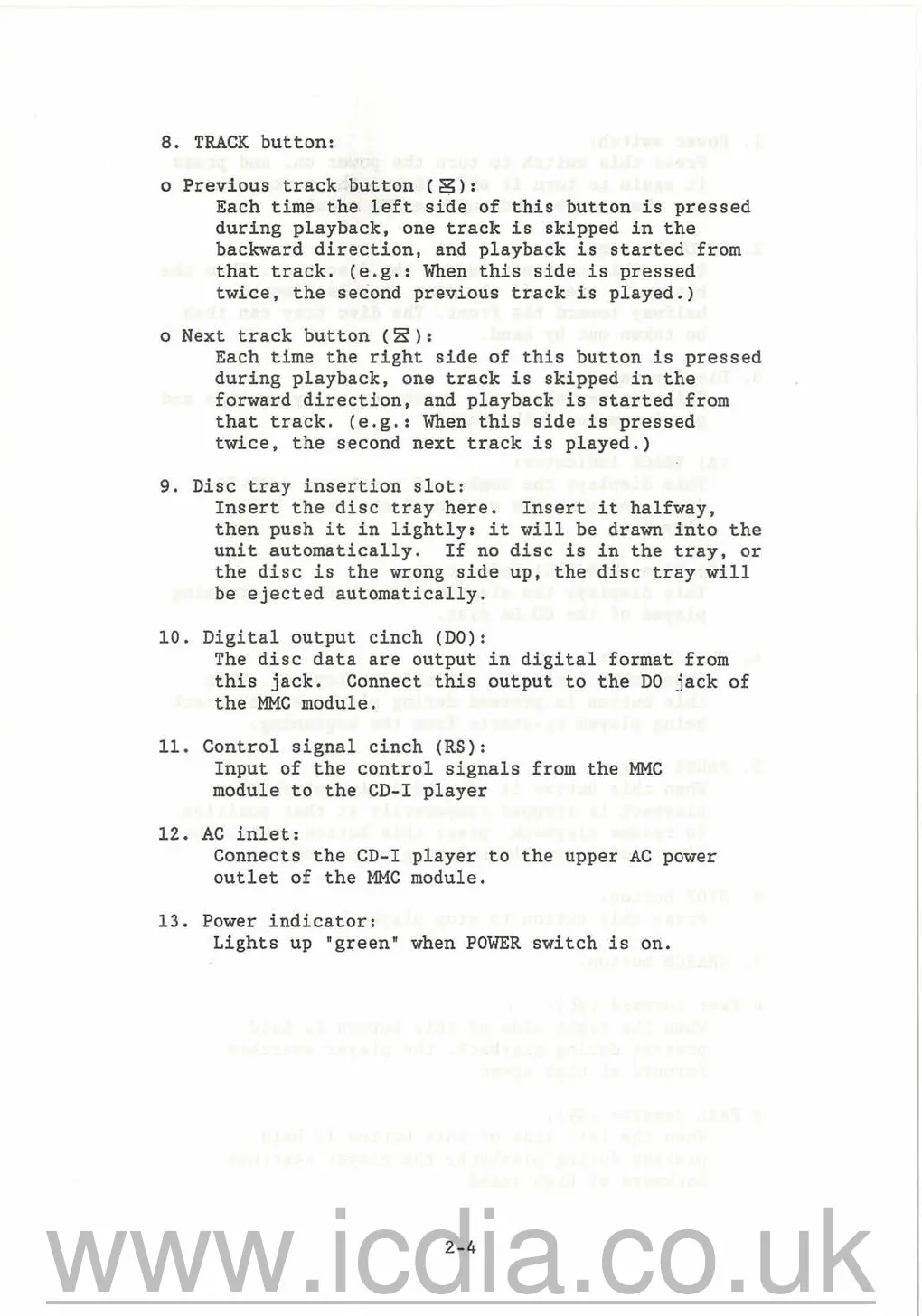

8. TRACK button:
o Previous track button (8):
Each time the left side of this button is pressed
during playback, one track is skipped in the
backward direction, and playback is started from
that track. (e.g.: When this side is pressed
twice, the second previous track is played.)
o Next track button(~):
Each time the right side of this button is pressed
during playback, one track is skipped in the
forward direction, and playback is started from
that track. (e.g.: When this side is pressed
twice, the second next track is played.)
9. Disc tray insertion slot:
Insert the disc tray here. Insert it halfway,
then push it in lightly: it will be drawn into the
unit automatically. If no disc is in the tray, or
the disc is the wrong side up, the disc tray will
be ejected automatically.
10. Digital output cinch (DO):
The
disc data are output in digital format from
this jack. Connect this output to the DO jack of
the MMC module.
11. Control signal cinch (RS):
Input of the control signals from the MMC
module to the CD-I player
12. AC inlet:
Connects the CD-I player to the upper AC power
outlet of the MMC module.
13. Power indicator:
Lights up "green" when POWER switch is on.
