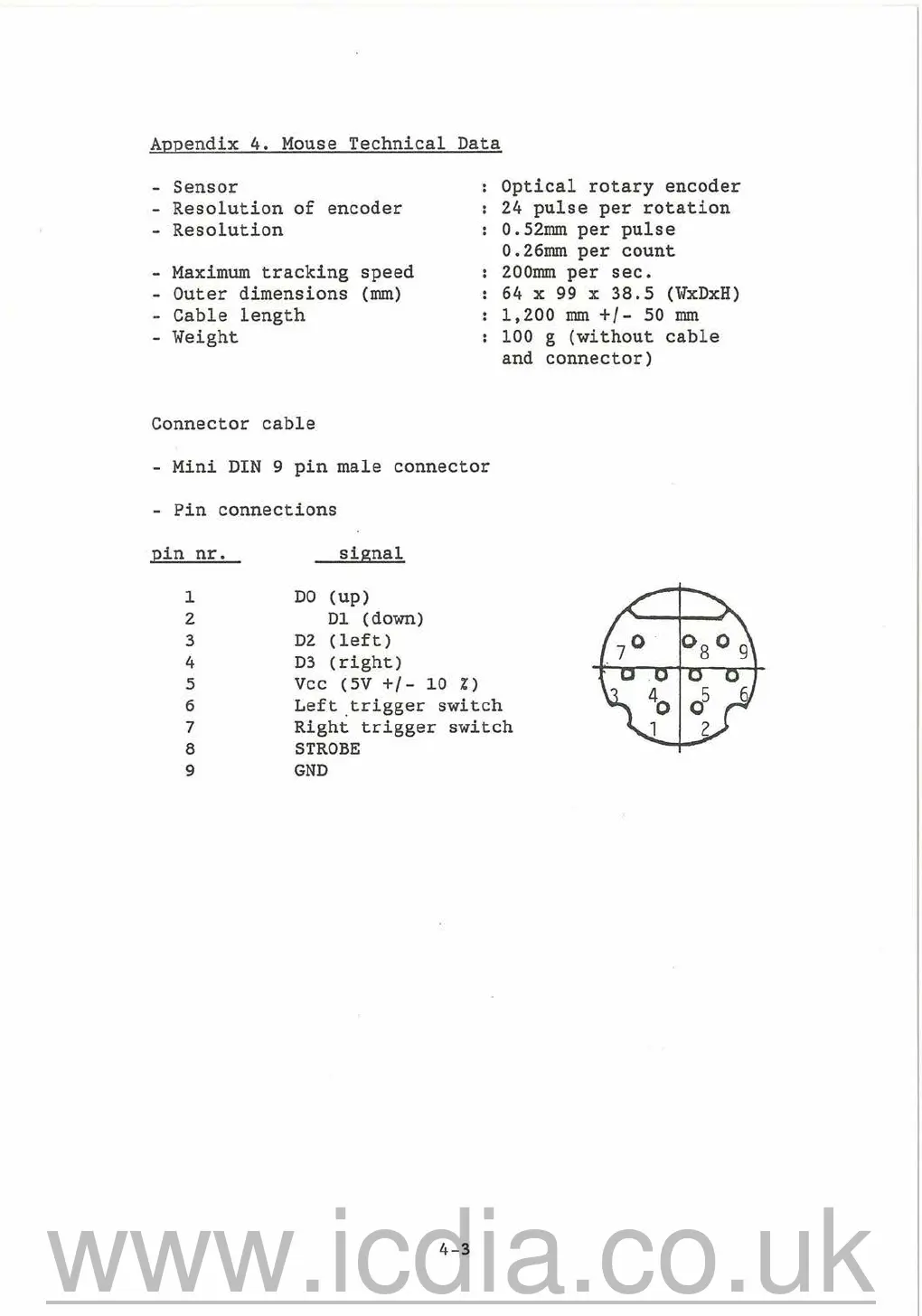

Appendix 4. Mouse Technical Data
- Sensor
- Resolution of encoder
- Resolution
- Maximum tracking speed
- Outer dimensions (mm)
- Cable length
- Weight
Connector cable
- Mini DIN 9 pin male connector
- Pin connections
pin nr. signal
DO (up)
D1 (down)
D2 (left)
D3 (right)
Optical rotary encoder
24 pulse per rotation
0.52mm per pulse
0.26mm per count
200mm per sec.
64 x 99 x 38.5 (WxDxH)
1,200 mm+/- 50 mm
100 g (without cable
and connector)
1
2
3
4
5
6
7
8
9
Vee (5V +/- 10 %)
Left _trigger switch
Right trigger switch
STROBE
GND
