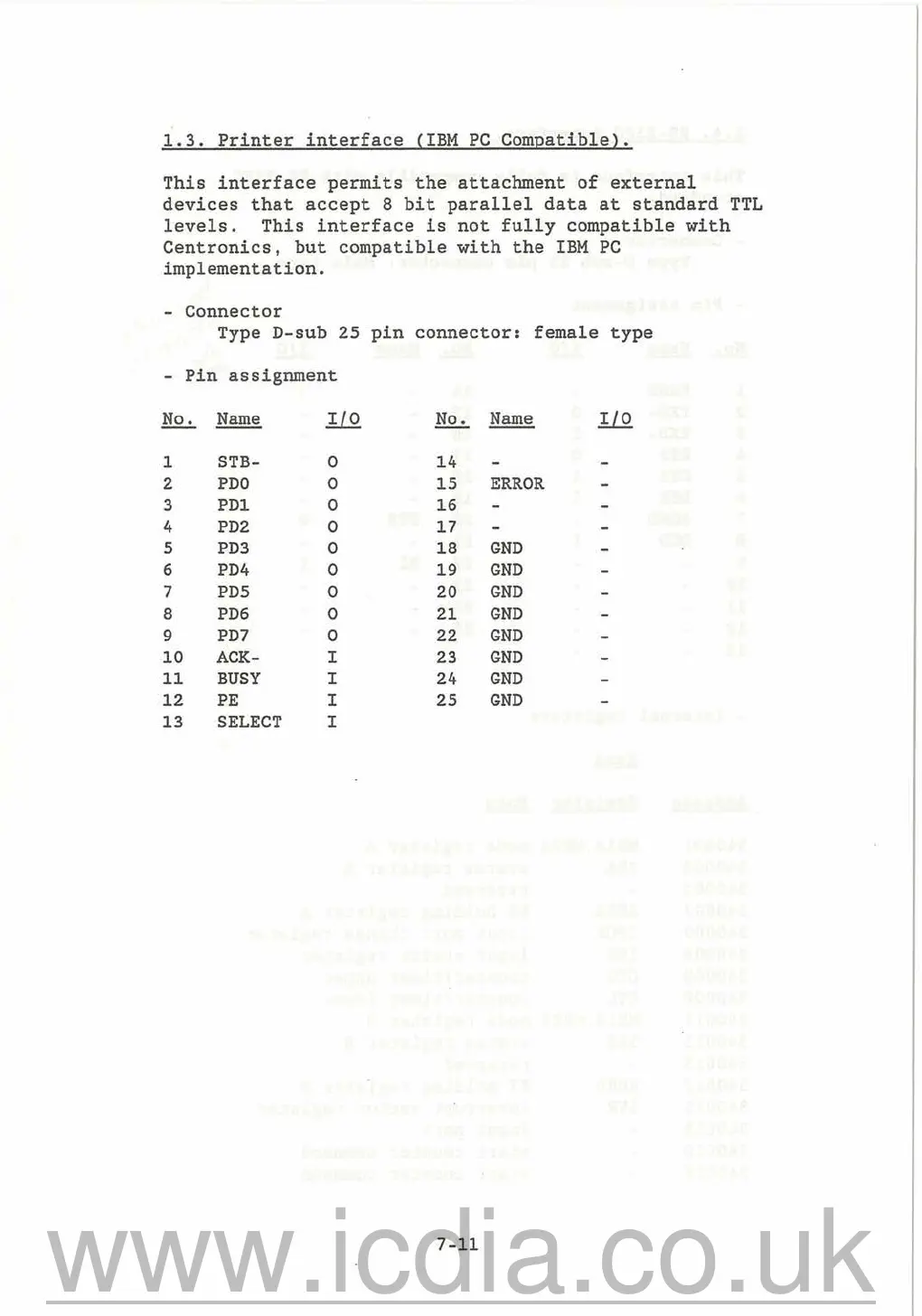

1.3. Printer interface (IBM PC Compatible).
This interface permits the attachment of external
devices that accept 8 bit parallel data at standard TTL
levels. This interface is not fully compatible with
Centronics, but compatible with the IBM PC
implementation.
- Connector
Type D-sub
25 pin connector: female type
- Pin assignment
No. Name
I/0
No. Name
lJ.Q
1
STB-
0 14
2
PDO 0 15 ERROR
3 PDl 0 16
4
PD2 0 17
5
PD3 0 18 GND
6 PD4 0 19 GND
7 PD5 0 20
GND
8 PD6 0 21
GND
9 PD7 0 22 GND
10
ACK-
I 23 GND
11 BUSY I
24
GND
12 PE I 25
GND
13 SELECT I
7-11
