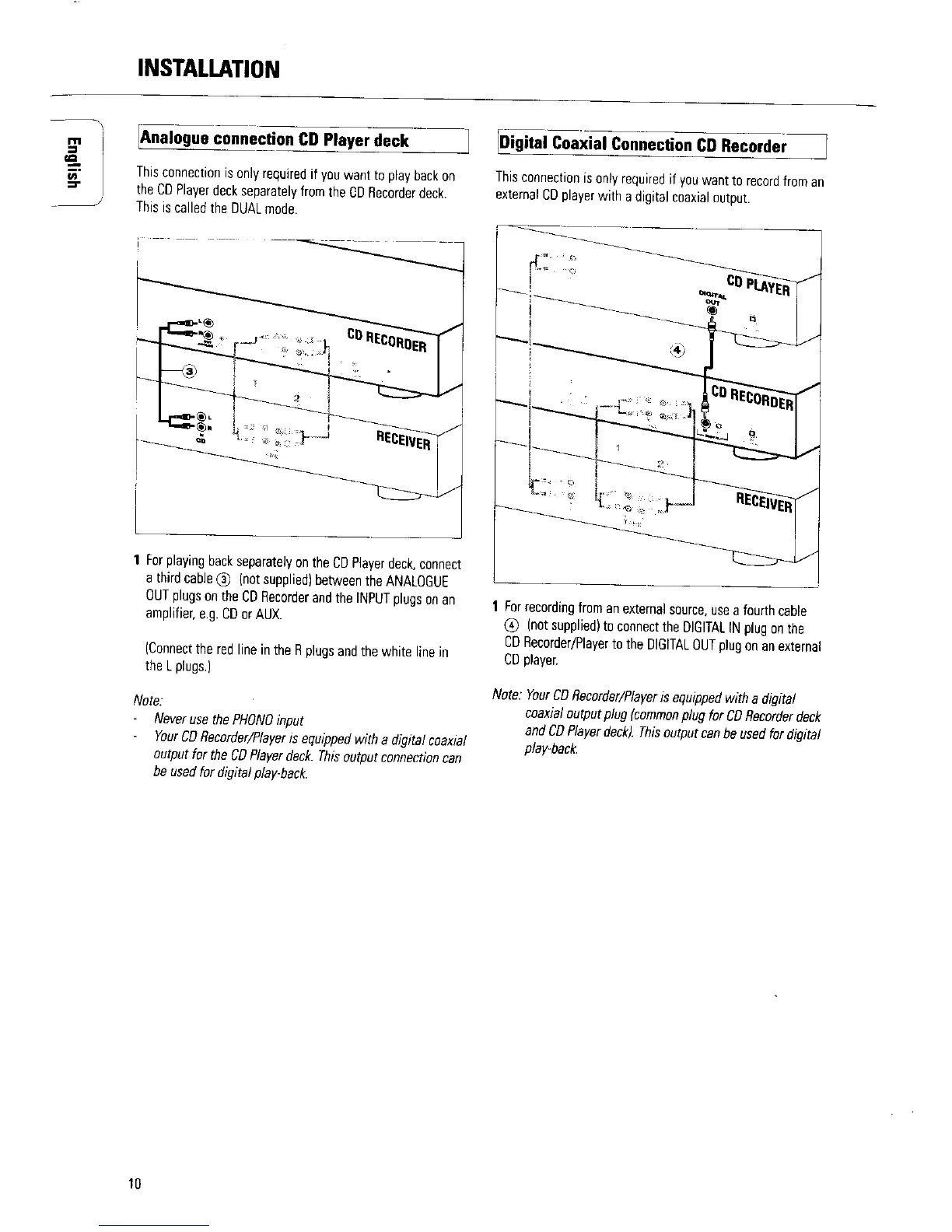

INSTALLATION
;/
i
___J
_nalogue connection CD Player deck
Thisconnection is only required if you want to play backon
the COPlayerdeckseparatelyfrom the DDRecorderdeck.
Thisis celled the DUALmode.
t" ....
[Digital Coaxial Connection CD Recorder
Thisconnectionisonlyrequiredif youwantto recordfroman
externalCOplayerwith adigitalcoaxialoutput.
1
1 Forplaying backseparatelyon the CDPlayerdeck,connect
a thirdcable(_ {notauppliedlbetweenthe ANALOGUE
OUTplugs onthe CDRecorderand the INPUTplugson an
amplifier, e.g. CDor AUX.
(Connectthe red line in the Rplugs andthe white line in
the L plugs,)
Note:
Neveruse thePHONOinput
YourCDRecorder/Playeris equippedwith a digital coaxial
output for the COPlayerdeck. Thisoutput connectioncan
be used for digital play-back.
1 Forrecordingfrom an externalsource,usea fourth cable
(_ Inot supplied)to connectthe OIGITALIN piagonthe
CDRecorder/Playerto the DIGITALOUTplug on anexternal
CDplayer.
Note: YourCDRecorder/Playeris equippedwith a digital
coaxialoutputplug Icommonplug for CDRecorderdeck
and CDPlayerdeck). Thisoutputcanbe used for digital
play-bank.
10
