6 EN
3 Install the car
entertainment
system
Always follow the instructions in this chapter in
sequence.
These instructions are for a typical installation.
However, if your car has different requirements,
make the adjustment accordingly. If you have
any question regarding installation kits, consult
your local retailer.
Note
This system is designed for negative ground (earth) 12V
DC operation only.
Always install this system in the car dashboard. Other
locations can be dangerous as the rear of the system
heats up during use.
To avoid short-circuit: before you connect, make sure
that the ignition is off.
Make sure that you connect the yellow and red power
supply leads after all other leads are connected.
Make sure that all loose leads are insulated with
electrical tape.
Make sure that the leads do not get caught under
screws iron parts that will move (e.g. seat rail).
Make sure that all ground (earth) leads are run to a
common ground (earth) point.
Use only the supplied mounting hardware for a safe
and secure installation.
,PSURSHUIXVHVFDQFDXVHGDPDJHRUÀUH:KHQ\RX
need to change the fuse, consult a professional.
When you connect other devices to this system, make
sure that the rating of the car circuit is higher than the
total fuse value of all the connected devices.
Never connect speaker wires to the metal body or
chassis of the car.
Never connect speaker wires with stripes to one another.
Connect wires
Note
Make sure that all loose leads are insulated with
electrical tape.
Consult a professional to connect wires as instructed
below.
Before connection, check the car's wiring carefully.

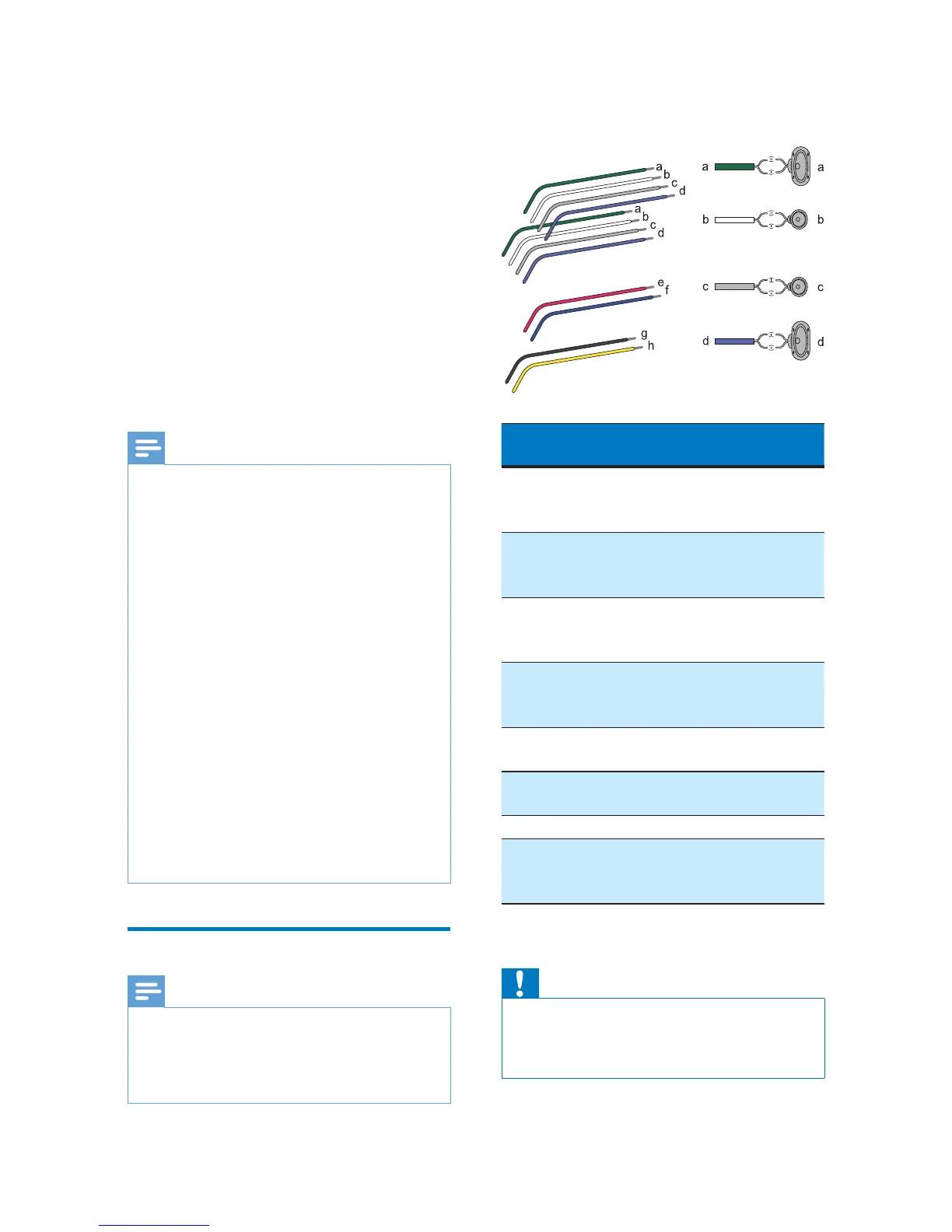

1 Connect the ISO male connectors.
ISO male
connectors
Connect to
a Green strip,
black-edged
green strip
Rear left speaker
b White strip,
black-edged
white strip
Front left speaker
c Gray strip,
black-edged
gray strip
Front right speaker
d Purple strip,
black-edged
purple strip
Rear right speaker
e Red strip Ignition key +12V DC
when ON/ACC
f Blue strip Motor/electric antenna
relay control lead
g Black strip Ground
h Yellow strip The +12V car battery
which is energized at all
times
2 Connect other wires if necessary.
Caution
To avoid an accident, the driver must not watch video
while driving. By design, this system disallows watching
video during drive. Park your car in a safe place and
engage the parking brake before watching video.
