English
10

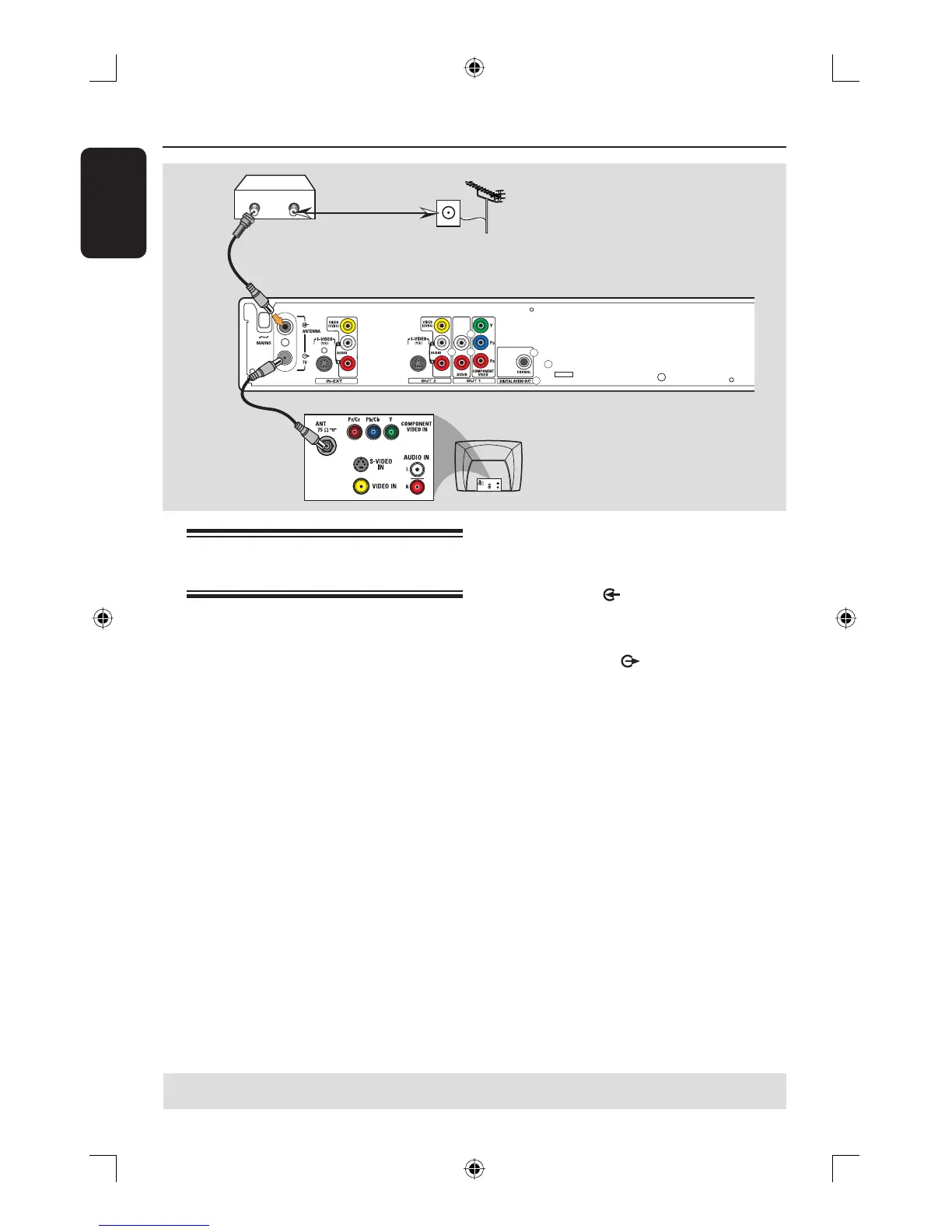

Basic Connections - DVD recorder
AUD IO
OUT
S-VI D EO
IN
VIDEO IN
TV
ANT OUT
RF OUT
ANT IN
RF IN
A
B
VCR/Cable Box/
Satellite Receiver
Antenna/
cable TV signal
Step 1: Connecting the
antenna cables
These connections enable you to watch
and record TV programs using this
recorder. If the antenna signal is
connected via a VCR, Cable Box or
Satellite Receiver, ensure that these
devices are turned on in order to watch
or record the cable programs.
If you want to connect to a VCR
and/or Cable Box/Satellite Receiver,
see page 13~15 for the complete
connection to your TV.
A Connect the existing Antenna/Cable TV
signal (or from the Cable Box/Satellite
Receiver { RF OUT or TO TV }) to the
ANTENNA jack on the DVD
recorder.
B Use the supplied RF coaxial cable to
connect the TV jack on the DVD
recorder to the antenna input jack on
your TV (VHF/UHF RF IN).
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
