Philips DVDR3365 - Connecting to a VCR and Cable Box;Satellite Receiver

English
15
Optional Connections (continued)
Antenna/cable
TV signals
F
Back of a Cable Box or
Satellite Receiver
(Example only)
Back of a VCR
(Example only)

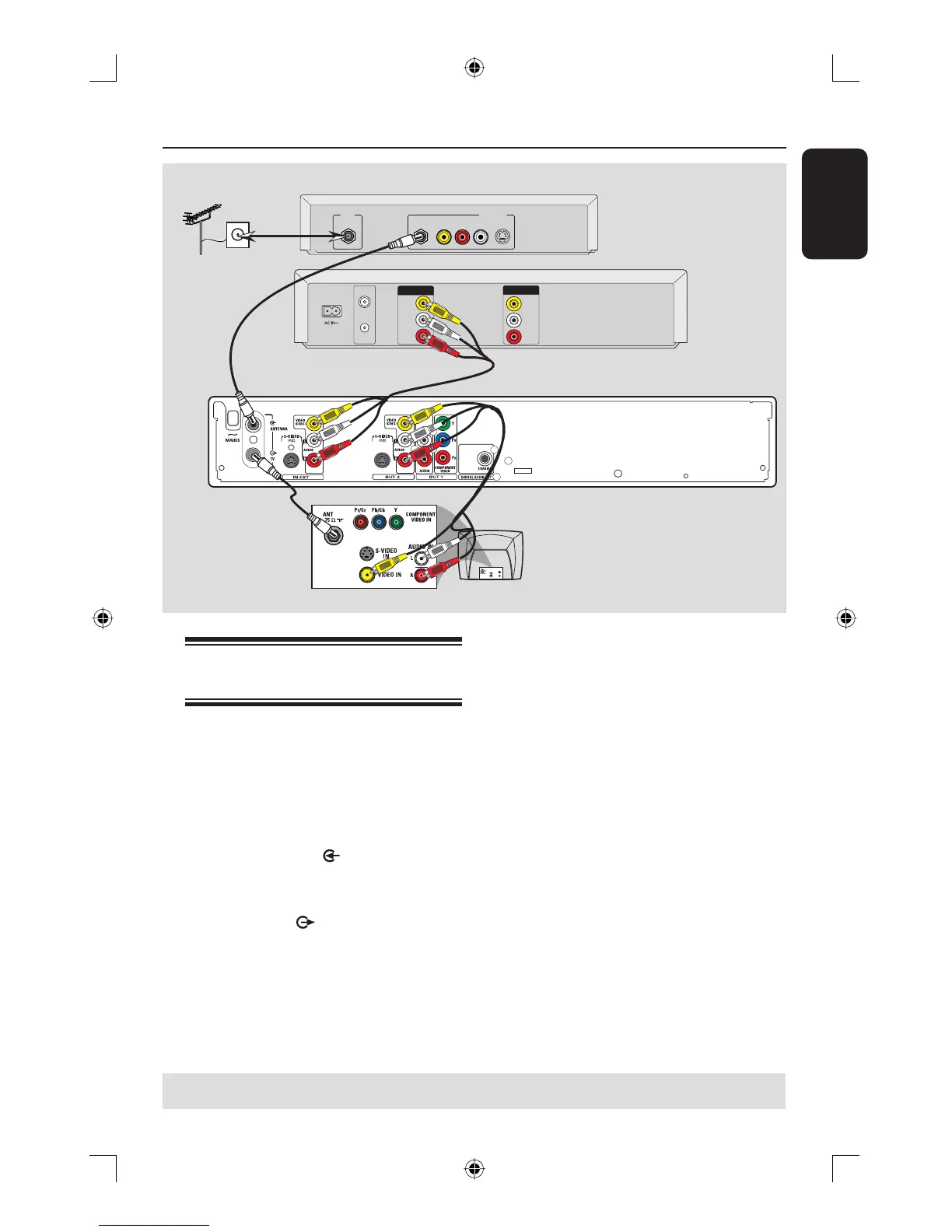

Connecting to a VCR and
Cable Box/Satellite Receiver
A Connect the Antenna/Cable TV signal to
the antenna input (RF IN) jack on the
Cable Box/Satellite Receiver.
B Use the supplied RF coaxial cable to
connect the antenna output (RF OUT)
jack on the Cable Box/Satellite Receiver
to the ANTENNA jack on the
recorder.
C Use the supplied RF coaxial cable to
connect the TV jack on the recorder
to the antenna inout socket on the TV.
D Use the audio/video cables to connect
the VIDEO/AUDIO IN-EXT on the
DVD recorder to the matching VIDEO/
AUDIO output jacks on the VCR.
E Use the audio/video cables to connect
the VIDEO/AUDIO OUT-2 on the
DVD recorder to the matching VIDEO/
AUDIO input jacks on the TV.
Helpful Hints:
– You may use the S-VIDEO (Y/C) jack
instead of VIDEO (CVBS) jack if the
connected device has the same S-VIDEO
input/output jack. This video connection
provides better picture quality.
VIDEO
IN
OUT
IN
AUDIO
L
AUDIO
R
VIDEO
OUT
AUDIO
L
AUDIO
R
VHF/UHF
RF IN
VHF/UHF
RF OUT
RF S-VIDEO
OUT
IN
AUDIO
R L
VIDEO
AUD IO
OUT
S-VID EO
IN
VIDEO IN
TV
C
E
D
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
A
B
